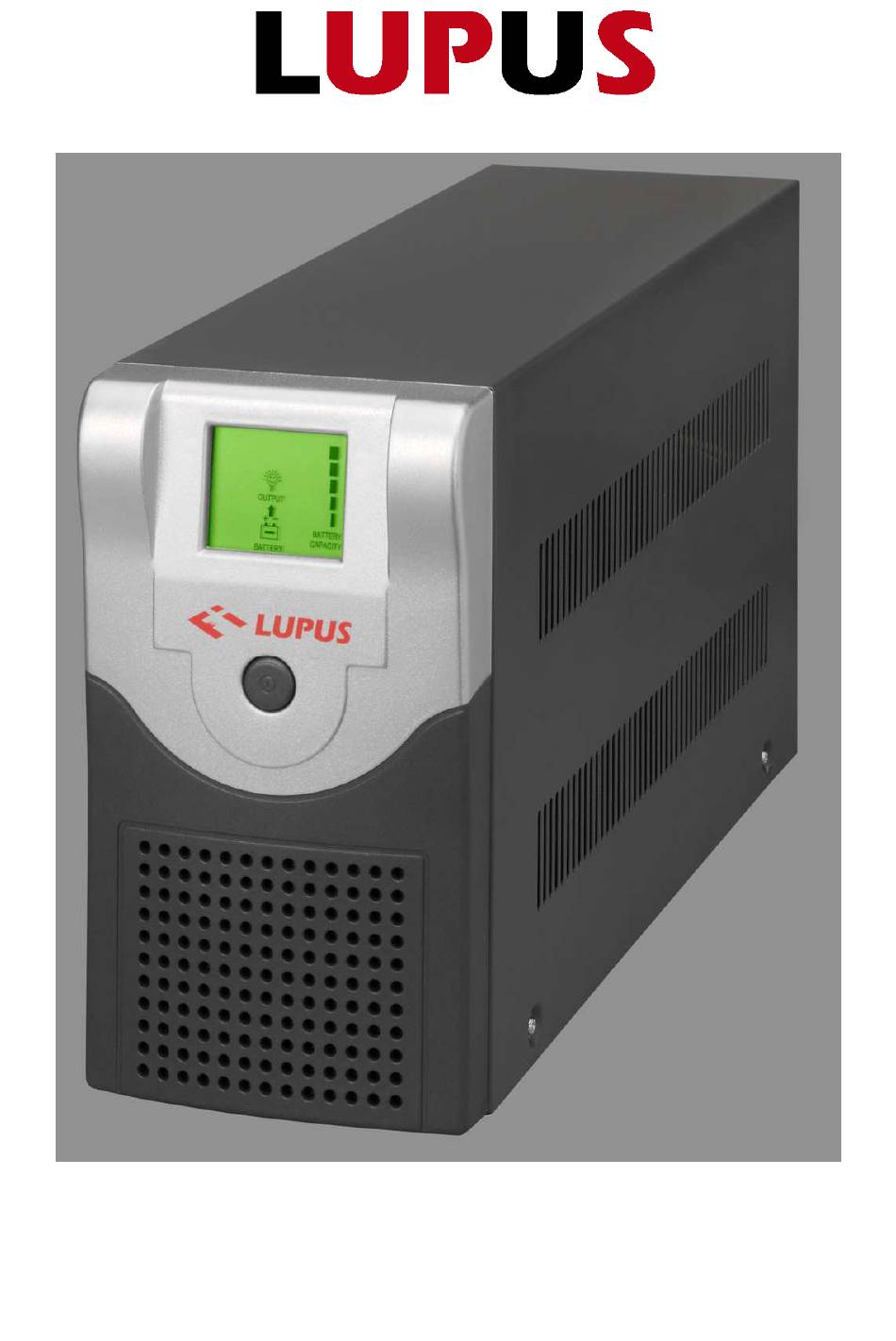

- Page 1 500 – 700 – 1000 – 1600VA User Manual...
-
Page 2: Table Of Contents
Index Description ....................3 Operating principle ..................4 Installation & use ..................4 Panel and backboard of UPS ..............4 Installation & use steps ................. 5 Instructions on Panel Indicating LED & LCD and Buzzer ..... 6 Storage & transportation ................6 Maintenance &... -
Page 3: Description
Description LUPUS UPS series is a new generation of high-performance safe and reliable uninterrupted power supply with the characteristics of voltage stabilizing functions, excellent machine performance, comprehensive automatic protection functions, small and exquisite appearance design, visually display, and easy-to-use feature. It can provide the computer and its peripheral equipment with pure and stable uninterrupted AC power supply. -
Page 4: Operating Principle
OFF position requires manual switching. Operating principle LUPUS series UPS (hereafter shortened as UPS) will not supply power from its battery when the mains is working normally, which means the mains goes through UPS into the computer with stabilised voltage. -
Page 5: Installation & Use Steps
Battery slot Switch startup configuration Figure (2) LCD Schematic Diagram of UPS LCD models Installation & use steps 1. After unpacking the UPS, check whether there is any mechanic injury due to transportation. If the UPS appearance has been serious injured, further examination is needed. -
Page 6: Instructions On Panel Indicating Led & Lcd And Buzzer
6. For the UPS with RJ11+RJ45 ports, the “IN” socket is for communication signal input, and the “OUT” is for modem or network card, so as to have the protection for the communication equipment ports. 7. To Turn On gently press the UPS power switch for 2 seconds, and turn on the computer after the UPS starts working. -
Page 7: Maintenance & Repair
Maintenance & repair Ordinary Problems If the UPS is operated with normal method, the panel will display the current working status. The following are ordinary UPS failure problematics : Problem 1: The UPS will not switch to electric supply status after turning Solution : Check whether the power cord is well connected with the electricity network socket;... -
Page 8: Replacing The Battery
Timely maintain or change the battery according to the following indications : Surroundings Battery Life Being Examined Being Maintained Every Temperature Every Six Months Month 20° 3-5 years Within 18 months Discharge it for 1-3 minutes every month if 30° 1.5-2 years Within 10 months Replacing the Battery... -
Page 9: Safety Precautions
Safety precautions In order to ensure the safe use of this UPS, please read the the following instructions, so as to avoid mistake or danger in the use: 1. This product is designed for home computer/commercial personal computer (PC), and it is not recommended to be used for life-supporting system or other specific important equipments. -
Page 10: Technical Specifications
Technical specifications UPS model: LUPUS 500 – 700 – 1000 – 1600VA Voltage Range 150 –290 VAC Input features Frequency 50Hz ± 10% Range(Hz) Power 300 – 420 – 600 – 960W Autonomy >10 min. (1 PC) Output features Voltage Range 230 VAC ±10% (battery work) Frequency Synchronizing... -
Page 11: Terms Of Warranty
Terms of warranty We provide a warranty for a period of 24 months from the date of sale of the UPS, but not longer than 36 months from date of manufacture. Disclosed in this period, defects will be corrected free of charge within no more than 14 working days from the date of delivery to an authorized service center. -
Page 12: List Of Of Service Centers
List of of service centers Fideltronik Inigo Sp. z o.o. Obroncow 25, 03-933 Warsaw tel / fax: +48 022 871 43 36 inigo@fideltronikinigo.com www.fideltronikinigo.com...
