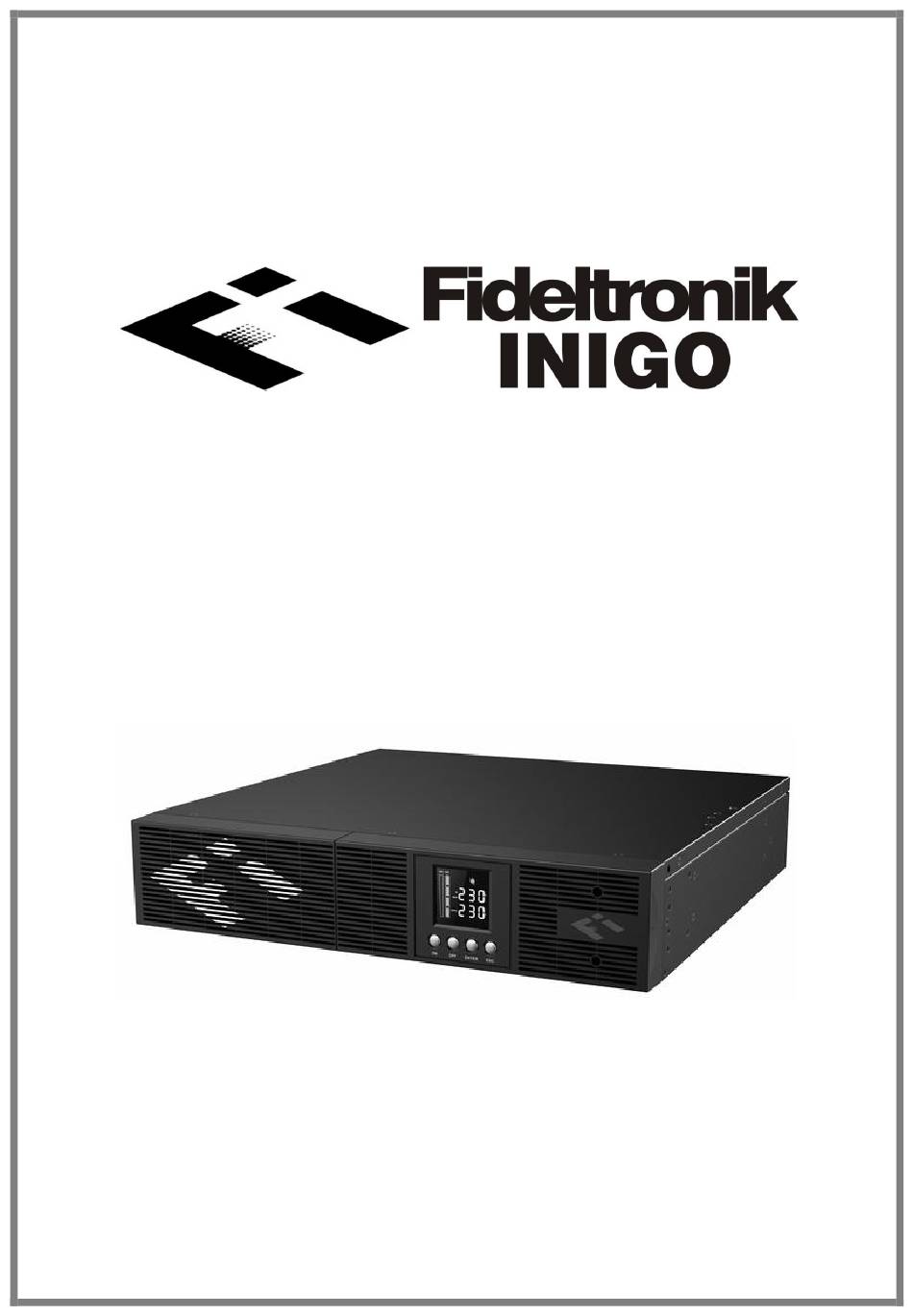

- Page 1 User’s Manual KR RTC 1000VA / 2000VA /3000VA Rack On-line UPS www.fideltronikinigo.pl...
- Page 2 Version K01-C000574-00...
-
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS This manual contains important instructions. Please read and follow all instructions carefully during installation and operation of the unit. Read this manual thoroughly before attempting to unpack, install, or operate the UPS. CAUTION! The UPS must be connected to a grounded AC cause damage to your equipment and cause fire hazards. - Page 4 UNPACKING Pan head screws: M5X12L (4) Plastic washers (8) Screw hole dust covers (8) User’s manual Input power cord Rackmount ears (Stands) (2) Install monitor software for optimal computer system protection, Output power cord (optional) install UPS monitoring software to fully configure UPS shutdown.
-
Page 5: Hardware Installation
INSTALLATION HARDWARE INSTALLATION These versatile UPS systems can be mounted in a rackmount or vertical tower orientation. This versatility is especially important to growing organizations with changing needs that value having the option to position a UPS on a floor or in a rackmount system. Please follow the instructions below for the respective mounting methods. -
Page 6: Vertical/Tower Installation
INSTALLATION Step 3: Install the UPS on the rack VERTICAL/TOWER INSTALLATION Step 1: Attach the base stands Tighten the screws (M5X12*4pcs) of the base stands (rackmount ears) onto the bottom of the UPS. Place the UPS on a flat stable surface with the front of the unit facing toward you. -
Page 7: Electrical Installation
INSTALLATION ELECTRICAL INSTALLATION After completing the hardware installation of the UPS, you are now ready to plug in the UPS and connect your equipment. SOFTWARE INSTALLATION Power Master management software provides a user-friendly interface for your power systems. The graphic user-interface is intuitive and displays essential power information at a glance. -
Page 8: System Block Diagram
INSTALLING YOUR UPS SYSTEM SYSTEM BLOCK DIAGRAM Bypass Input Inverter Output Input Output Filter AC/DC DC/AC Filter LCD Module Charger Control Battery DC/DC AC/DC & USB & DB9 Monitoring SNMP Slot Line Mode Battery Mode Bypass Mode HARDWARE INSTALLATION GUIDE Battery charge loss may occur during shipping and storage. - Page 9 BASIC OPERATION POWER MODULE FRONT/REAR PANEL DESCRIPTION 1. Power On/Off Button a period of time during a power failure. Master ON/OFF for the UPS. 11. Extended Runtime Battery Module Connector 2. Function Buttons Connect to additional external battery modules. Scroll up, scroll down, select and cancel LCD menu. 3.
- Page 10 BASIC OPERATION CONNECTION #1 : POWER MODULE WITH ONE Step 2: Pull the battery tray out slowly. Put the new battery tray back into the compartment after that. BATTERY MODULE Rotate the battery cable retention bracket and tighten the two screws to fix battery cable. CONNECTION #2 : POWER MODULE WITH MULTIPLE BATTERY MODULES Step 1: Use the battery cable to connect the 2...
- Page 11 BASIC OPERATION DEFINITIONS FOR OTHER ICONS MUTE: This icon appears whenever the UPS is in silent mode. The alarm does not beep during silent mode until the battery reaches low capacity. SCHEDULE: Users can setup the schedule to turn on and shut down the computer and UPS through Power Master software.
-
Page 12: Lcd Screen - Ups Status
BASIC OPERATION OUTPUT Program：indicate the status of outlets, if NCL outlets is enable, “ ” will be lighting, if NCL outlets is disable, “ ” will be off. OUTPUT Program：indicate the status of outlets, if critical output outlets is enable, “... - Page 13 BASIC OPERATION When the input voltage is within bypass Bypass mode voltage range, UPS will bypass voltage to output. Converter mode When input frequency is within 40Hz to 70Hz, the UPS can be set at a constant output frequency, 50Hz or 60Hz. is blinking The UPS is in fault mode, and user can Fault mode...
-
Page 14: Button Operation
BASIC OPERATION Event ID Descriptions Event ID Description of Cause Bus Start Fail: DC-DC converter or bus sensing circuit failed. Bus Volt High: DC-DC converter failed. Bus Volt Low: DC-DC converter failed. Bus Unbalanced: DC-DC converter failed. INV Start Fail: Inverter circuit failed. INV Volt High: Inverter circuit or output voltage sensing circuit failed. -
Page 15: Lcd Settings Configuration
BASIC OPERATION LCD SETTINGS CONFIGURATION There are 9 UPS settings that can be configured by the user. ENTER Press the “ ” button for 5 seconds to activate the setting mode. The first configuration parameter will be displayed on the LCD screen. Note: The manual settings programming mode can ONLY be invoked while UPS is in Bypass mode or Standby mode. - Page 16 BASIC OPERATION [DIS] (Disable) [ENA] (Enable) Enable Output ***** *) When operating in ECO Mode, the efficiency of UPS is higher than that in online mode, but transfer time should not be 0ms **) When operating in Converter Mode, the frequency of output should be always 50Hz or 60Hz, but load capacity will be derated by 40%.
-
Page 17: Maintenance
MAINTENANCE Storage CAUTION! To avoid electric shock, turn off and unplug the To store your UPS for an extended period, cover it and store UPS from the wall receptacle before servicing the battery. with the battery fully charged. Recharge the battery every CAUTION! Only use tools with insulated handles. -
Page 18: Technical Specifications
TECHNICAL SPECIFICATIONS 1000 RTC 2000 RTC 3000RTC Model Capacity (VA/W) 1000VA/900W 2000VA/1800W 3000VA/2700W Configuration Form Factor Rack Energy-saving Yes, ECO Mode Efficiency ≧95% Technology Input 80~300Vac 5% for 1000/2000/3000VA model @ 0~30% Load5% 120~300Vac 5%for 1000/2000VA model @ 30~60%Load 5% 140~300Vac... - Page 19 TECHNICAL SPECIFICATIONS Software Power Management Power Master Software Physical 88×438×610 mm Dimensions (H x W x D) .88×438×430 mm 88×438×430 mm Net Weight 13.67 17.32 27.34 *) Within 50/60Hz±8% by default, the output frequency is synchronization with input mains. User can adjust the acceptable range for output frequency (±1, 2, 3, 4, 5, 6, 7, 8, 9, 10%).
-
Page 20: Troubleshooting
TROUBLE SHOOTING Problem Possible Cause Solution Warning Your equipment requires more power than the Shut off non-essential equipment. If this solves UPS can provide. If the UPS is in Line Mode O/P Overload the overload problem, the UPS will transfer to then it will transfer to Bypass Mode;...
