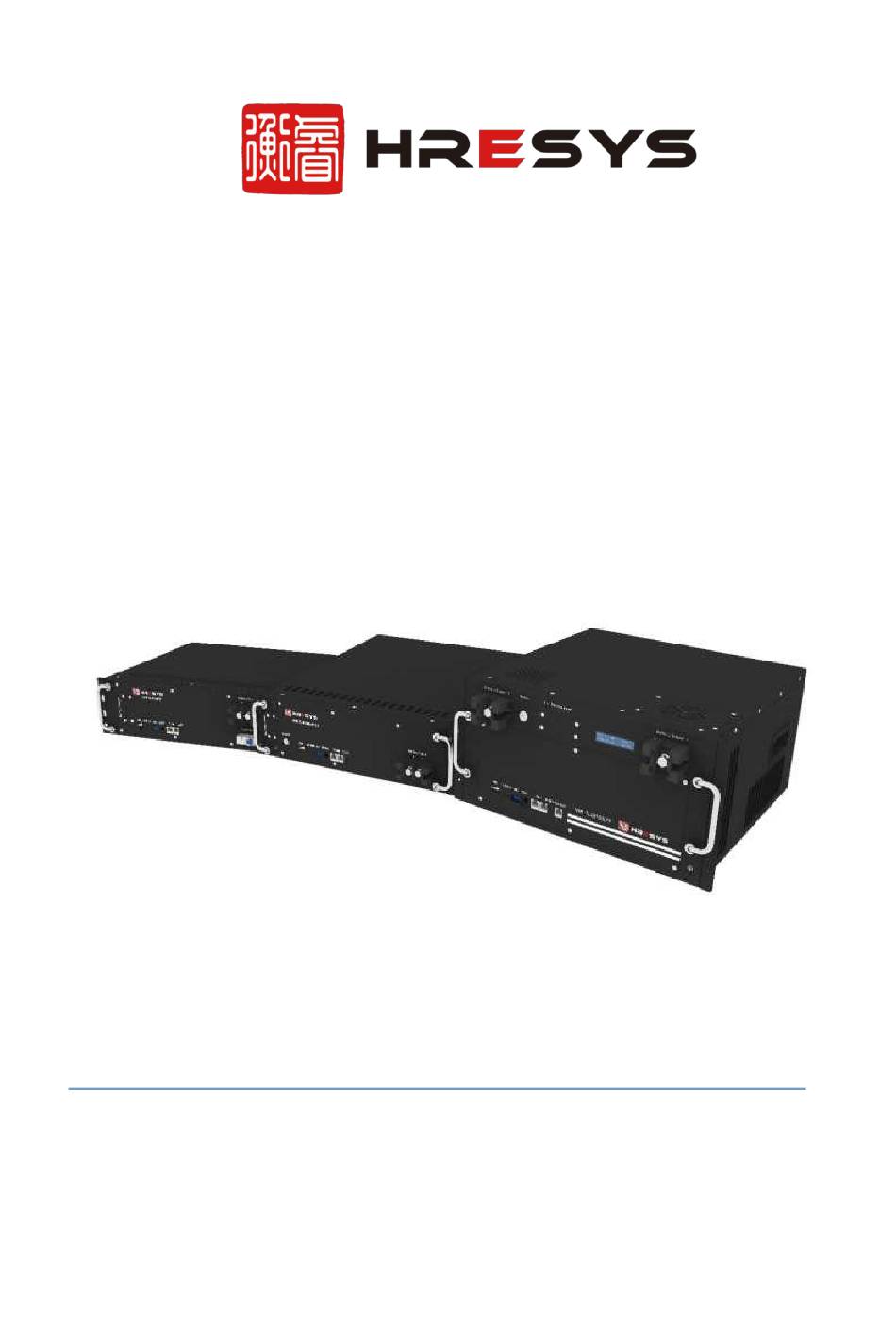

- Page 1 TL-LFP Series Lithium-ion Battery OPERATION MANUAL ( V4.0) ZHEJIANG HENGRUI TECHNOLOGY CO., LTD. 8F, Building 3, Tianxing International Center, No.508 Fengtan Road, Hangzhou, China. 310011 Tel: +86-571-88189800 Fax: +86-571-87896688 Website: www.hresys.com Email: sales@hresys.com...
-
Page 2: Table Of Contents
Content Part 1 – Safety & Warning........................1 Part 2 – Product Introduction......................2 2.1 – Overview..........................2 2.2 – Working Principle....................... 2 2.3– Applications......................... 2 2.5– Battery Model Name......................3 Part 4 – Operation & Maintenance.....................3 4.1 – Requirements for Operation Environment................ 3 4.2 –... -
Page 3: Part 1 - Safety & Warning
TL-LFP Series LiFePO Battery Operation Manual Part 1 – Safety & Warning The TL-LFP series LiFePO battery system installation, operation, maintenance should follow important recommendations in this manual: The equipment shall be installed by the professional training staff Battery maintenance should be carried out by the experienced professionals and aware ... -
Page 4: Part 2 - Product Introduction
Part 2 – Product Introduction 2.1 – Overview TL-LFP series lithium ion battery is a series of battery pack with advanced LiFePO4 technology and intelligent integrated BMS, which has the advantages of long cycle life, light weight, small size, safety and environmental protection.TL-LFP series lithium ion batteries can be used in a variety of indoor and outdoor applications. -
Page 5: Battery Model Name
5% ~ 95% 4.2 – Parameter Settings of Power Plant Lead-acid batteries can be replaced by lithium battery of TL-LFP series if power is matched. Table 4.2 Parameter settings of power plant for lithium-ion battery. Table 4.2 – Parameter Settings of Power Plant for TL48V-LFP Series Batteries... -
Page 6: Charge/Discharge Modes And Conditions
-mV/℃ charge NOTE: 1.Equalization charge is requested to switch off for TL-LFP series battery. 2.Rectifier parameter shall be set according to specific site requirement based on battery units used. 3.system instantaneous discharge and charge current shall be less than 250A for each module. -
Page 7: Layout Of Front Panel
TL-LFP Series liFePO Battery Operation Manual 4.4 – Layout of Front Panel Fig. 4.1 – Layout of Front Panel for TL-LFP Series Batteries Table 4.5 – Instruction for Layout of Front Panel Marks Functions Detailed Information Power When turn-off, battery get into sleep mode, and cut-off output, the alarm... -
Page 8: Shipment
TL-LFP Series liFePO Battery Operation Manual LCD （Optional） LCD display Displays current system total voltage, current and battery status Protective M4 screw ground 4.5 - Shipment The battery should be packed in cartons under the condition of half capacity 20%-50% for shipment. -
Page 9: Installation Of Battery Modules
TL-LFP Series liFePO Battery Operation Manual Installation of Battery Modules 1) Installation and fixation Battery modules of TL-LFP series are applicable to installation in 19-inch cabinets and wall-hanging. 19inch cabinet installation Insert battery module into 19 inch cabinet, and fix two handles of battery module with cabinet rack using 4pcs M6 screws. - Page 10 TL-LFP Series liFePO Battery Operation Manual copper bus bar separately. Length of cable between battery module and power plant shall be less than 2.0m. To make sure similar voltage drop of cable for each battery, length of all positive and negative cables should be the same.
-
Page 11: Storage
TL-LFP Series liFePO Battery Operation Manual Table 2.1, and LVBD is larger than 41.0V. Voltage drop on cable between battery module and power plant shall be less than 0.5V. 4.7 – Storage 4.7.1 Storage Requirements 1. Place modules according to the signs on the packing case during storage. Do not put modules upside down or sidelong. -
Page 12: Recharge Process
TL-LFP Series liFePO Battery Operation Manual not exceed the warranty period. 4.Directly handle bulging modules, no matter how long they are stored. 5.Battery performance degradation after long-term storage, please shorten shelf time as possible as you can. 4.7.3 Recharge process... -
Page 13: Part 5 - Troubleshooting & Solutions
TL-LFP Series LiFePO Battery Operation Manual Part 5 – Troubleshooting & Solutions Table 5.1 –Troubleshooting and Solutions Troubles Troubleshooting Solutions Protection against under-voltage Charge battery Protection against over-temperature or Regulate ambient temperature in the under-temperature (Ambient temperature is range of -20℃ to 60℃ for discharge lower than -20℃... -
Page 14: Annex 1 - Instructions For Led Flicker
TL-LFP Series LiFePO Battery Operation Manual discharging maybe connection is abnormal.call maintenance service help. If all temperature nearly the same, check the environment temperature. Low SOC alarm Do not need to solve Cell or system low voltage alarm Do not need to solve... -
Page 15: Annex 2 - Instructions For Add Dialing
TL-LFP Series LiFePO Battery Operation Manual under-temper ature, over-current protection Normally Normal —— Normally Flash —— Temp Alarm Under voltage Flash 1 protection Discharge According to the SOC Over temperature, under-temper Flash Flash 1 ature, over-current protection Norm Charge / Discharge /... -
Page 16: Annex 3 - Communication Protocol For Rs232 And Rs485
TL-LFP Series LiFePO Battery Operation Manual PACK 5 000100 Slave PACK PACK 6 000101 Slave PACK PACK 7 000110 Slave PACK PACK 8 000111 Slave PACK PACK 9 001000 Slave PACK PACK 10 001001 Slave PACK PACK 11 001010 Slave PACK... - Page 17 TL-LFP Series LiFePO Battery Operation Manual RJ11 Pin Definition Description SWCLK Pack transmit; Computer receiver BMS receiver; Computer transmit RS232_GND SWDIO 2) RS-485 The system uses/through 8Pin straight PCB welding socket(RJ45) to provide RS-485 protocol, the pin assignment of RJ45 is defined as follows。...
