- Page 1 USER MANUAL ELECTRIC BIKE...
- Page 2 Sahara Fodable City e-Bike Words to Users Thank you for choosing Freesky! In order to make it easier for you to experience the product and be safe at riding, detailed instruc�on is provided, from which you can find the product’s instruc�on, usage and other informa�on. Before using this product, please read the manual carefully so that you can correctly use it.
-
Page 3: Table Of Contents
Contents User Precau�ons Package List Product Overview Assembly Ba�ery Start-Up Procedure Display and Se�ng Troubleshoo�ng Specifica�ons FAQS Limited Warranty Contact Us... -
Page 4: User Precau�Ons
User Precau�ons 1. Do not ride without wearing a helmet. 2. Do not ride the bike under the influence of drugs or alcohol. 3. Do not ride without being acknowledged local road traffic safety law. Obey the laws and respect pedestrians. 4. -
Page 5: Package List
Package List Carefully check package contents, if anything is missing or damaged, please contact Freesky customer service for support: support@freeskycycle.com Unpack the bike. Open the bike box and remove the small box inside. With the help of another person capable of safely li�ing a heavy object, remove the bike from the bike box. -
Page 6: Product Overview

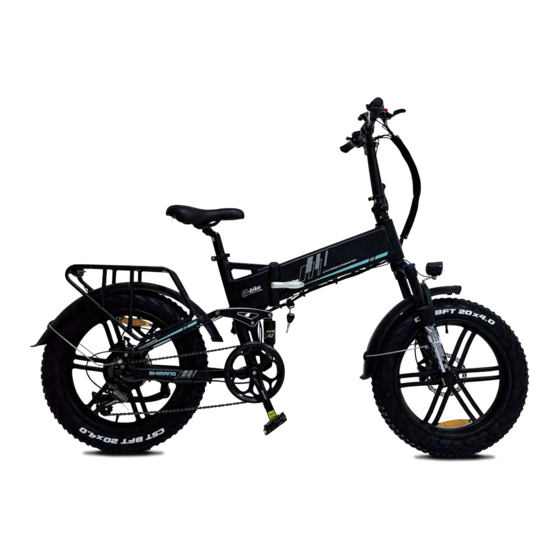

Product Overview LCD Display Derailleur Display Controls Thro�le Grip Ba�ery Stem Saddle Seat Post Front Light Front Fork Crankset Chain Pedals Motor Brake Disc Tire... -
Page 7: Assembly
Headstock Assembly 1.Insert the handlebar into the stem. 2.Fix the handlebar in place. 3.Adjust the height of the handlebar. 4.Close the quick-release levers. - Page 8 Front Wheel Assembly 1. Locate the axle skewer and unscrew the nut 2.Pass the skewer through the axle from the brake and long cylinder. disc side and make sure the brake disc is on the le� of the bike. 3.Reinstall the cylinder, then li� the front of the bike 4.Reinstall the nut and �ghten it with a wrench.
- Page 9 Front Light and Fender Assembly 2.Remove the headlight moun�ng hardware from 1.Remove the screws on both sides of the front the fork arch. fork arms. 3.Pass the bolt through the headlight mount, fender 4.Wrap the clamp around the fork without touching moun�ng point and the fork arch moun�ng point, the brake rotor, insert the bolt and �ghten.
- Page 10 Saddle Assembly For be�er pedaling, safety and overall riding comfort, posi�oning the seat at the right height is important. The rider's leg length is used to determine the seat's posi�on. When you pedal, your hips should remain level and your legs should be almost fully extended at the bo�om of the pedal stroke, but not over-extended.
- Page 11 Seatpost Adjustment (1) NOTICE: Ensure the seat post and seat are properly adjusted before riding. DO NOT raise the seat post beyond the minimum inser�on marking etched into the seat tube (as shown at right). If the seat post projects from the frame beyond these markings (shown far right), the seat post or frame may break, which could cause a rider to lose control and fall.
- Page 12 Front Fork Adjustment The suspension fork can move up and down up to 80mm to cushion bumps in the riding surface, which can make riding on a rough road or trail smoother and more comfortable. Depending on a rider’s preference, the suspension fork can be locked out as a rigid fork, which will typically yield higher efficiency while pedaling.
- Page 13 Watch the chain and ensure the chain runs through the drivetrain (the rear cog, chain tensioner, and around the front chainring) smoothly. Note: If the pedal/ chain doesn’t run smoothly, or something seems misaligned, please contact Freesky support.
-
Page 14: Ba�Ery
Ba�ery Key Posi�ons Familiarize yourself with the key port and key posi�ons before riding the bike. The photo below shows the key port aligned in key posi�on 1, in line with the ON icon. In key posi�on 1, the ba�ery is in the “on” posi�on, with the ba�ery locked to the frame, and the key can't be removed. - Page 15 Remove the ba�ery For your convenience, the ba�ery can be removed. 2.Fold the bike and place it on the ground. 1.Open the quick-release lever on the frame. 4.Remove the ba�ery. 3.Turn the key counterclockwise and pull it out.
- Page 16 Charge Your E-Bike Before using the electric bike, you must fully charge the ba�ery. 2.Plug the other end of the charger into a power outlet. 1.Plug the charger into the ba�ery’s charging port. With the ba�ery on or off the bike, place the charger in a flat, secure place.
-
Page 17: Start-Up Procedure
Start-Up Procedure A�er the bike has been properly assembled according to the assembly video, all components are secured correctly, a cer�fied, reputable mechanic has checked the assembly, and you have read this ensure manual, turn on the bike and select a pedal assist level following the steps below: 1.Test the ba�ery lock security. -
Page 18: Display And Se�Ng
Display Details 1.Light 2.Ba�ery Level... - Page 19 3.Mul�-Func�ons Display TRIP: Single Mileage ODO: Total Mileage TIME: Single Running Time VOL: Current Voltage CUR: Opera�ng Current DST: Unspecified 4.Vehicle Power Gear Gear 0-9 adjustable； Normally 3 / 5 / 9-gear mode available. 5.Speed Display MAX: Maximum Speed AVG: Average Speed MPH or KM/H: Measuring Unit The panel will calculate the actual travelling speed based on the wheel diameter and signal data (number of magnet steel is needed for Hall motors).
- Page 20 Display Se�ngs Long press to turn off the panel when it’s on. Short press the up key to increase the PAS level, short press the down key decrease the PAS level. Specific opera�on 1.Short press the key to increase the PAS level, short press the down key to decrease the PAS level.
- Page 21 Daily Care and Maintenance Cleaning and Storage If you see stains on the bike body, wipe them off with a damp cloth. If the stains won't scrub off, put on some toothpaste, and brush them with a tooth brush, then wipe them off...
- Page 22 Recommended Service Intervals Regular inspec�on and maintenance are key to ensure bikes from Freesky func�on as intended, and to reduce wear and tear on their systems. Recommended service intervals are meant to be used as guidelines. Real world wear and tear, and the need for service, will vary with condi�on of use.
- Page 23 Pre-Ride Safety Checklist No�ce: Before every ride, and a�er every 25-45 miles(40-72 km), we advise following the pre-ride safety checklist. Safety Check Ensure front and rear brakes work properly. 1.Brakes Check brake pads for wear and ensure they are not overworn. Ensure brake pads are correctly posi�oned in rela�on to the rims.
- Page 24 Safety Check Check that the frame and fork are not bent or broken. 8.Frame, Fork, and Seat If either frame or fork are bent or broken, they should be replaced. Check that the seat is adjusted properly, and seatpost quick release lever is securely �ghtened. 9.Motor Drive Ensure hub motor is spinning smoothly and motor bearings are in good working order.
- Page 25 �mely replacement will help ensure that your bike’s opera�onal characteris�cs will be maintained, and unsafe condi�ons avoided. Freesky recommends 30 PSI for the stock �res on the Freesky. Always stay within the manufacturer’s recommended air pressure range as listed on the �re sidewall.
-
Page 26: Troubleshoo�Ng
Troubleshoo�ng Symptoms Most Common Solu�ons Possible Causes 1.Charge the ba�ery 1.Insufficient ba�ery power 2.Clean and repair connectors 2.Faulty connec�ons 3.Install ba�ery correctly The bike does not 3.Ba�ery not fully seated in tray 4.Turn on bike with proper sequence work 4.Improper turn on sequence 5.Disengage brakes 5.Brakes are applied 6.Replace discharge fuse... -
Page 27: Specifica�Ons
Specifica�ons ITEM SPECIFICATIONS Sahara Model 175×63×122(cm) Product Dimensions 146×30×76(cm) Package Dimensions 350 lbs(158kg) Max Load Package Weight 88 lbs(40kg) 75 lbs(34kg) E Bike Weight Max Speed 24 mph(38km/h) Input 100-240V 50/60HZ AC Plug; Output 54.6V 2A Ba�ery/Charger 40-54 miles Pedal-Assist Mode... -
Page 28: Faqs
FAQS Q: What if the e-bike arrived missing accessory or broken part? A: Please take a photo and send to Freesky Support Team by sending email: support@freeskycycle.com and Freesky Support Team will reply you soon and send correct accessory or part replacement. -
Page 29: Limited Warranty
We will deduct the shipping fee or restocking $150/pc when we are making a refund for non-defec�ve products-longer needed Products. For the return request, Freesky is not responsible for lost packages due to the carrier, or products received that can not be verified. - Page 30 5.All accessories originally included with your purchase must be included with your return. 6.If you return a product to Freesky,(a) without an RMA from Freesky(b) without all parts included in the original package, Freesky retains the right to refuse delivery of such return. LIMITED PRODUCT WARRANTY...
- Page 31 ● For the avoidance of doubt, Freesky will not be liable and/or responsible for any damage, failure or loss caused by any unauthorized service or use of unauthorized parts.
-
Page 32: Contact Us
Contact Us Contact us if you experience issues relating to riding, maintenance and safety, or errors/faults with your FREESKY e-bike. YANSHAN Technology Co., LTD freeskycycle.com support@freeskycycle.com 611 Reyes Dr. City of Industry Walnut CA 91789... - Page 33 Scan this QR code or search FREESKY EBIKE on YouTube for assembly video.
