Summary of Contents for DUTSCHER ClearLine UVC/T-AR

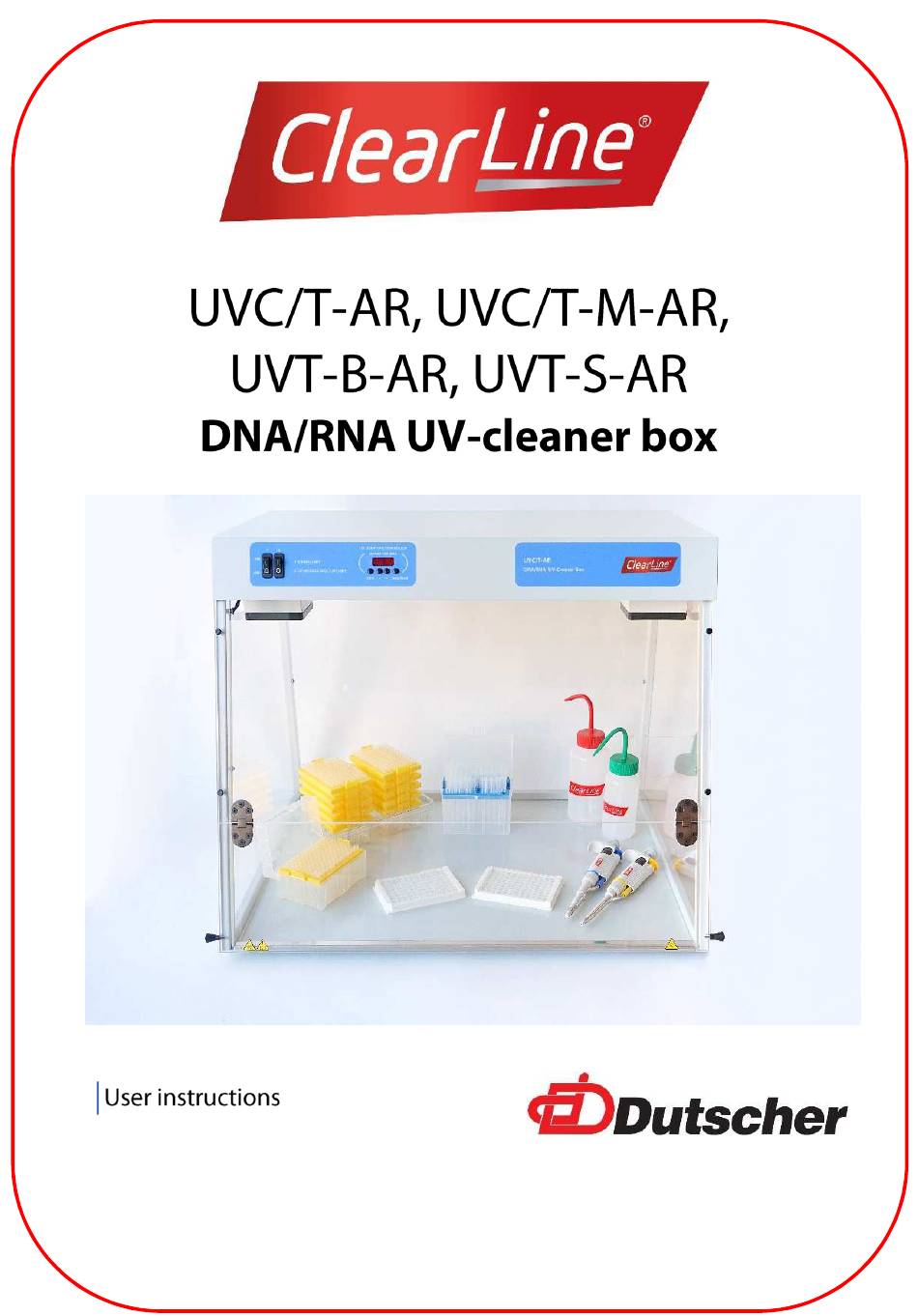

- Page 1 Edition 3.-6.01 – May of 2020 DUTSCHER GROUP...
-
Page 3: Table Of Contents
Contents About this edition of user instructions ................3 Safety precautions ......................4 General information ......................5 Getting started ........................ 7 Operation ........................8 Specifications........................ 11 Care and maintenance ....................13 Warranty ........................15 EU Declaration of conformity ..................16 About this edition of user instructions The current edition of the user instructions applies to the following models and versions of DNA/RNA UV-cleaner box:... -
Page 4: Safety Precautions
Safety precautions Caution! Make sure you have fully read and understood the present Manual before using the equipment. Please pay special attention to sections marked by this symbol. Caution! The front protective screen must be closed while the open UV lamp is switched on. -
Page 5: General Information
ELECTRICAL SAFETY Connect only to the mains with voltage corresponding to that on the serial number • label. Do not plug the unit into an ungrounded power socket, and do not use an ungrounded • extension lead. Ensure that the power plug is easily accessible during use. •... - Page 6 UV-Cleaner box is equipped with a flowing bactericidal UV-cleaner-recirculator AR, which provides constant decontamination inside the box during operation. It is recommended for operations with DNA/RNA amplicons. UV recirculator consists of an UV lamp (fig. 1/1), a fan and dust filters (fig. 1/2) organized in a plastic case.
-
Page 7: Getting Started
Getting started 4.1. Unpacking. Remove packing materials carefully and retain them for future shipment or storage of the unit. Examine the unit carefully for any damage incurred during transit. The warranty does not cover in-transit damage. Warranty covers only the units transported in the original package. -
Page 8: Operation
4.3. Setup. If the moving table is used, unpack it carefully and assemble according to the enclosed assembling scheme. Place the unit upon stable surface. Ensure that the unit is placed on a solid, level surface not less than 720x550 mm (1290x600 mm for UVT-S-AR model), which is able to support its weight and the weight of equipment and materials inside, for instance on the T-4 / T-4L table. - Page 9 Note. Open UV lamp operation can be checked with the visible light lamp switched off (switch 1 is OFF). Use the indicator in the centre of recirculator cover (fig. 1/3) to check operation of UV lamp inside the recirculator. If indicator lights from inside while switch 2 is ON, then the UV lamp is functioning.
- Page 10 5.3.3. To use electric devices inside the cabinet, pull their power cable through the inlet and close the flap (fig. 3/6) or connect the power cable to a built-in mains socket (fig. 3/7, models with mains socket). Warning! Overall consumed power of devices connected through internal mains sockets should not exceed 1000 W for 230V, or 600 W for 100–...
-
Page 11: Specifications
Specifications The unit is designed for operation in cold rooms and closed laboratory rooms at ambient temperature from +4°C to +40°C in a non-condensing atmosphere and maximum relative humidity 80% for temperatures up to 31°C decreasing linearly to 50% relative humidity at 40°C. - Page 12 6.1. Used materials. ® PMMA – polymethylmethacrilate (acrylic) glass, Altuglas • ® Glass – clear film (0.1 mm) coated glass, Euroglas • Steel – stainless polished steel. • Coated steel – white enamel powder coated steel. • 6.2. Cabinet dimensions. Outer and inner dimensions, opening heights. UVC/T-AR UVC/T-M-AR, UVT-B-AR UVT-S-AR...
-
Page 13: Care And Maintenance
Care and maintenance 7.1. If the unit requires maintenance, disconnect the unit from the mains and contact your local representative. 7.2. All maintenance and repair operations must be performed only by qualified and specially trained personnel. 7.3. Fuse replacement. 7.3.1. Fuse for the control box. Disconnect the unit from electric circuit. Remove power cable from its socket on the rear side of the unit. - Page 14 7.6. Cleaning and decontamination. Disconnect the unit from the mains before cleaning. Caution! Do not let liquid get into the control box. 7.6.1. Model UVC/T-AR and shelves P-5 and F-1, full cleaning. Transparent panels and ® shelves are made of acrylic glass (polymethylmethacrylate Altuglas EX) and are prone to scratches and optical transmission capacity decrease if improperly cleaned.
-
Page 15: Warranty
Warranty 8.1. The Manufacturer guarantees the compliance of the unit with the requirements of Specifications, provided the Customer follows the operation, storage and transportation instructions. 8.2. The warranted service life of the unit from the date of its delivery to the Customer is 12 months. -
Page 16: Eu Declaration Of Conformity
EU Declaration of conformity...
