DUTSCHER MagnetaPure 32 Operation Manual

Nucleic acid purification system
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

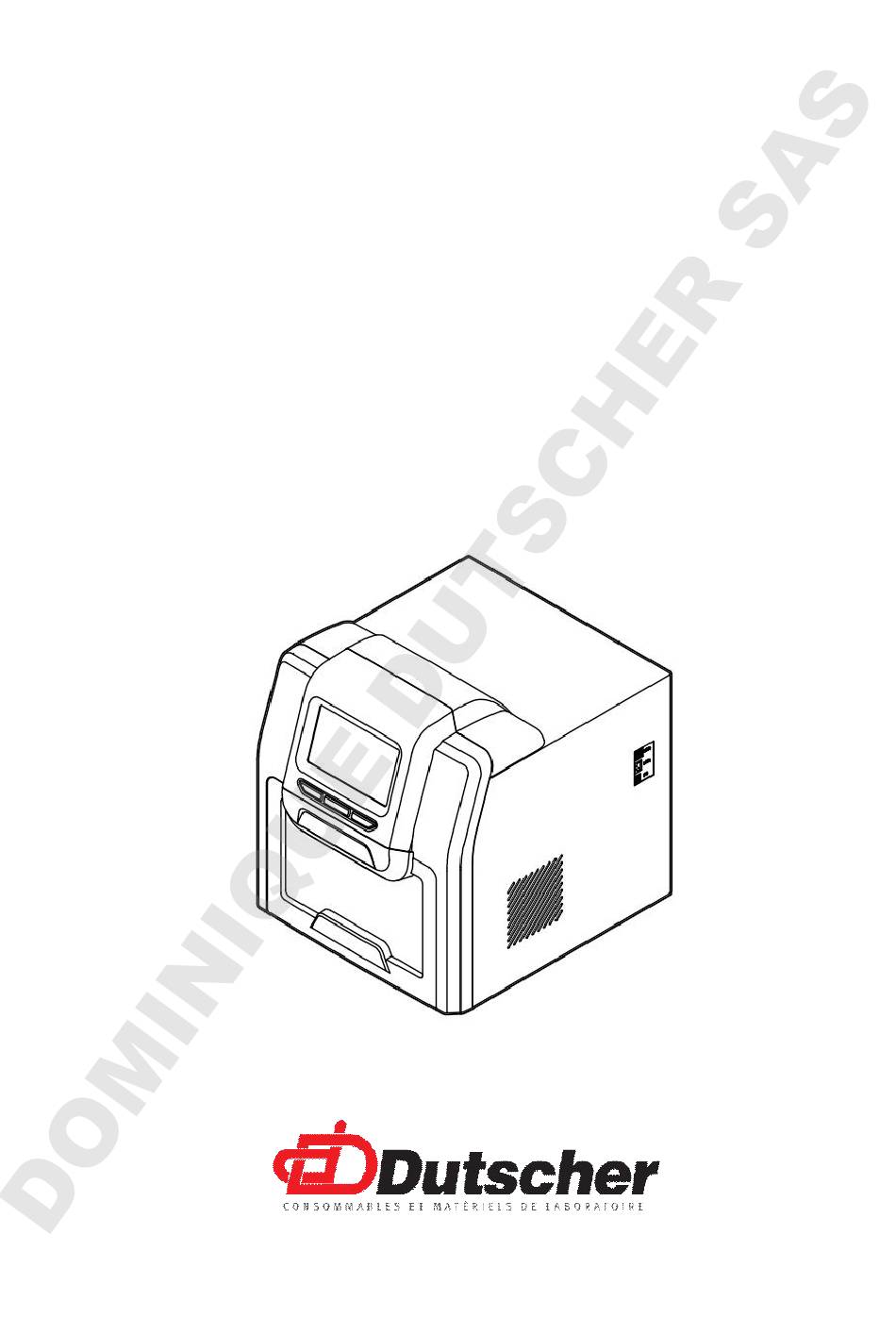

Operation Manual
V4.0
MagnetaPure 32
Nucleic Acid Purification
System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MagnetaPure 32 and is the answer not in the manual?

Questions and answers

Related Manuals for DUTSCHER MagnetaPure 32

Summary of Contents for DUTSCHER MagnetaPure 32

  • Page 1 Operation Manual V4.0 MagnetaPure 32 Nucleic Acid Purification System...
  • Page 2 Forewords Thank you for purchasing MagnetaPure 32 Nucleic Acid Purification System. In order to use the instrument properly, please read carefully this manual before operating and keep it for future reference. Opening Check Please check the instrument and Appendix with the packing list when you first open the package.
  • Page 3 Safety Warnings and Guidelines 1 Warning Please read this Manual carefully before operation. Operation without reading the manual may cause damage or even electrical shock. 2 Safety Tips The operation, maintenance and repair of the Instrument should comply with the basic guidelines and cautions as below. Improper use of the instrument may cause damage to the system, inaccurate results, or potentially nullify warranties.
  • Page 4 Before connecting to power, make sure the voltage used is same as the instrument required, and the maximum rated load should be sufficient for the instrument. Please replace the power cord with same specs if the power cord is damaged. Please make sure there’s nothing covered the power cord and keep it away from crowds when in use.
  • Page 5 Indicates disposal instruction. DO NOT throw this unit into a municipal trash bin when this unit has reached the end of its lifetime.To ensure utmost protection of the global environment and minimize pollution,please recycle this unit. 3 The maintenance of Instrument The inner side of drawer should be cleaned periodically by the cloth with alcohol.

  • Page 6: Table Of Contents

    Contents Chapter 1 Brief Introduction ................1 Chapter 2 Specification .................. 2 1. Normal operating conditions ................ 2 2. Basic parameter & Performance ..............2 3. Overall Dimension ..................3 Chapter 3 Product Introduction ................ 4 1. Structure ....................... 4 2.

  • Page 7: Chapter 1 Brief Introduction

    Chapter 1 Brief Introduction Chapter 1 Brief Introduction MagnetaPure 32 Nucleic Acid Purification System use the magnetic rod to adsorb, transfer and release magnetic particles to transfer the operating sample and in this way to purify DNA/RNA, protein and cell etc. The...

  • Page 8: Chapter 2 Specification

    MagnetaPure 32 Operation Manual Chapter 2 Specification Chapter 2 Specification 1. Normal operating conditions Environmental Temperature: 10°C～35°C Relative Humidity ≤70% Input: AC 100～240V，50Hz/60Hz 2. Basic parameter & Performance Table 1 Basic parameter & Performance Magneta Auto-Pure Auto-Pure Auto-Pure Auto-Pure Auto-Pure...

  • Page 9: Overall Dimension

    MagnetaPure 32 Operation Manual Chapter 2 Specification Dimension 400mm×470mm×450mm 400mm×520mm×450mm (W×D×H) Weight（kg） 28kg 30kg 3. Overall Dimension Dimension（W×D×H） MagnetaPure 32： 400mm×470mm×450mm Auto-Pure 48A： 400mm×470mm×450mm Auto-Pure 20A： 400mm×520mm×450mm Auto-Pure 20B： 400mm×520mm×450mm Auto-Pure 24D： 400mm×520mm×450mm Auto-Pure 24BT： 400mm×520mm×450mm ─ ─...

  • Page 10: Chapter 3 Product Introduction

    MagnetaPure 32 Operation Manual Chapter 3 Product Introduction Chapter 3 Product Introduction This chapter basically introduce the instrument structure, operation buttons, display panel as well as the preparations before operate. For the first time user, please make sure to read this chapter before start.
  • Page 11 Drawer (bottom inside) Note: The only difference between the experiment module of above products is the shape of the heating strip. 1.4. MagnetaPure 32 / Auto-Pure 48A Inside view Magnetic rod UV light (Over the magnetic rod cover) (top insid...

  • Page 12: Operation Panel

    MagnetaPure 32 Operation Manual Chapter 3 Product Introduction 2. Operation panel Display screen STOP Display screen: Operate by touch screen or mouse which connect with USB port TAB: Select for the shortcut program RUN: Run for the shortcut program STOP: Stop operating ─...

  • Page 13: Chapter 4 Operation

    MagnetaPure 32 Operation Manual Chapter 4 Operation Chapter 4 Operation 1. Preparation Take out the instrument from packing carton and tear off the tape on the edge of operation window, then open it and take out the foam. First please screw out the fixed screw of position ①...

  • Page 14: Connect The Power

    MagnetaPure 32 Operation Manual Chapter 4 Operation 2. Connect the power Connect one end of power cord to the instrument socket and the other to power (AC100~240V), then turn on the power switch. 3. Install the reagent kit 3.1 Install the customized reagent kit for Auto-Pure 20A & Auto-Pure 20B.
  • Page 15 3.3 Install the 96 well reaction plate on MagnetaPure 32. Take out the drawer and put the 96 well reaction plate which already filled with samples mounted on the locating slot, make sure the plate with chamfering should be on the left side, then push back the drawer slowly.

  • Page 16: Install The Magnetic Rod Cover

    MagnetaPure 32 Operation Manual Chapter 4 Operation 96 well reaction plate 4. Install the magnetic rod cover 4.1 Install the magnetic rod cover for 20A/20B/24D/24BT Insert the magnetic rod cover completely on the mounting groove, and the installation quantity depends on the reagent kit number.

  • Page 17: Remove Magnetic Rod Cover

    MagnetaPure 32 Magnetic rod cover Note: Magnetic rod cover for MagnetaPure 32 at most is 4pcs, for Auto-Pure at most is 6pcs.The installation method is same. 5. Remove magnetic rod cover Press the button and take out the magnetic rod cover as per below photo.

  • Page 18: Operation

    MagnetaPure 32 Operation Manual Chapter 4 Operation 6. Operation 6.1 Start-up Interface Turn on the instrument and make sure the drawer is closed before start, the screen will display the start-up interface. After start, it will enter into the shortcut mode as below: ─...
  • Page 19 MagnetaPure 32 Operation Manual Chapter 4 Operation 6.2 Program Run 6.3 Shortcut mode Under the shortcut mode, select the program needed and click “Run”, it will enter into the program run interface. The program can also be selected by press “Tab” button on the panel and then press “Run” for start or “Stop”...
  • Page 20 MagnetaPure 32 Operation Manual Chapter 4 Operation Auto-Pure 20B Running interface Auto-Pure 24BT Running interface ─ ─...
  • Page 21 MagnetaPure 32 Operation Manual Chapter 4 Operation Auto-Pure 24D Running interface MagnetaPure 32 Running interface ─ ─...
  • Page 22 MagnetaPure 32 Operation Manual Chapter 4 Operation Auto-Pure 48A Running interface On the left side, it shows the current step info., when the exact reagent position start to run, then this position will be highlighted, and there will be temperature display on the position of heating function.
  • Page 23 MagnetaPure 32 Operation Manual Chapter 4 Operation 6.3.1 List mode Users may review the file by scroll bar on the right side. Select the program and click "Run" to enter into the run interface. Click “View” to enter into the check interface.
  • Page 24 MagnetaPure 32 Operation Manual Chapter 4 Operation Click “Run” to enter the running interface. Click “Option” to view the parameter setting of the program. Click “Back” to previous interface. 6.3.2 Lamp At the bottom of interface, the icon “ ” shows that the lamp is on,and the icon “...
  • Page 25 MagnetaPure 32 Operation Manual Chapter 4 Operation ─ ─...
  • Page 26 MagnetaPure 32 Operation Manual Chapter 4 Operation Shortcut operation 6.4.1 Click “√” of the program in the “Manage Prog.” interface, the program will be displayed in the “Shortcut” list interface. In the list of “Lock”, if the icon is “...
  • Page 27 MagnetaPure 32 Operation Manual Chapter 4 Operation Click “Insert” to add a new step. Click “Well” to insert the well number, then input the program name, waiting time, mixing time, magnetic time and sample volume. At the end, please click the mixing speed to select the speed.
  • Page 28 For Auto-Pure 24BT, only well location 1 & 8 have heating function. For Auto-Pure 24D, only well location 1 & 6 have heating function. For MagnetaPure 32, only well location 1 & 6 (Corresponding to the well location of 1,6,7 &12 for 96 well plate ) have heating function.
  • Page 29 MagnetaPure 32 Operation Manual Chapter 4 Operation Click “Cancel”, it will be back to “Management prog” interface and without save. Click “Cancel”, it will stay in the “Insert” surface. 6.4.3 Program Management--Edit Choose the program in the “Manage prog.” interface, then click “Edit” enter into edit program.
  • Page 30 MagnetaPure 32 Operation Manual Chapter 4 Operation parameter of instrument. Remarks：Regularly, there’s no need to set unless it’s failed and need repair, as instrument has already finished setting before factory dispatch, and even if it’s failed, this kind setting will be authorized by distributor or manufacturer.
  • Page 31 MagnetaPure 32 Operation Manual Chapter 4 Operation 6.5.3 System Setting--Language Click “Language Setting” to choose the language that you need. 6.5.4 System Setting -- Fan Click “ Air Ejector Fan” to have the fan setting ─ ─...
  • Page 32 MagnetaPure 32 Operation Manual Chapter 4 Operation 6.5.5 System Setting -- Import/Export Click “Import/Export” and insert U disk to finish the step. 6.5.6 System Setting--Software upgrade Click “Software upgrade” to input the right password enter the interface and then insert the U disk to operation.
  • Page 33 MagnetaPure 32 Operation Manual Chapter 4 Operation 6.5.7 UV sterilization Click “UV sterilization” and input number or click “+” “-”to set time. Click “Start” to open the UV light to start UV sterilization and time count down. Click “Stop” to stop the UV sterilization.
  • Page 34 MagnetaPure 32 Operation Manual Chapter 4 Operation after the drawer is closed. 6.6 Help Click “Help” to check the help info. Help interface displays the relevant features and version information. ─ ─...

  • Page 35: Chapter 5 Troubleshooting

    MagnetaPure 32 Operation Manual Chapter 5 Trouble Shooting Chapter 5 Troubleshooting Fault phenomenon Possible Causes Solution Power not connected Check power Switch failure Replace switch No display after switch on Replace fuse （5X20 250V 8A） Fuse failure Others Contact with Distributor...
  • Page 36 MagnetaPure 32 Operation Manual Chapter 5 Trouble Shooting Software fault alarm list Fault type Fault name Error message Model T1,T2,T3,T4,T5,T6, E011,E021,E031,E041, T7,T8 Overheat E051,E061,E071,E081 T1,T2,T3,T4,T5,T6, E018,E028,E038,E048, T7,T8 Drive circuit fault E058,E068,E078,E088 MagnetaPure 32 Auto-Pure 48A T1,T2,T3,T4,T5,T6, E015,E025,E035,E045, T7,T8 Open circuit...

  • Page 37: Chapter 6 Spare Parts List

    Unit Remark Power line Mouse Kits tray Allen wrench For upgrading software and U disk transferring programs 2. MagnetaPure 32/Auto-Pure 48A /24D/24BT Spare parts list Item Unit Remark Power line Mouse Allen wrench For upgrading software and U disk transferring programs ─...

  • Page 38: Chapter 7 Abbreviation And Symbols

    MagnetaPure 32 Operation Manual Chapter 7 Abbreviation and Symbols Chapter 7 Abbreviation and Symbols 1. Abbreviation Abbreviation used Ampere Alternating current Volt Hertz Watt Universal Serial Bus Secure Digital Card WiFi WLAN Kilogram Millimeter μL Microlitre Hectopascal Degree Centigrade ℃...
  • Page 39 MagnetaPure 32 Operation Manual Chapter 7 Abbreviation and Symbols 2. Symbols Symbols used on device Warning Heating Indicates conformity with health, safety, and environmental protection standards for products sold within the European Economic Area ─ ─...
  • Page 40 MagnetaPure 32 Operation Manual Notes Notes ─ ─...
