Mayne Woodhaven Sign Post Assembly Instructions

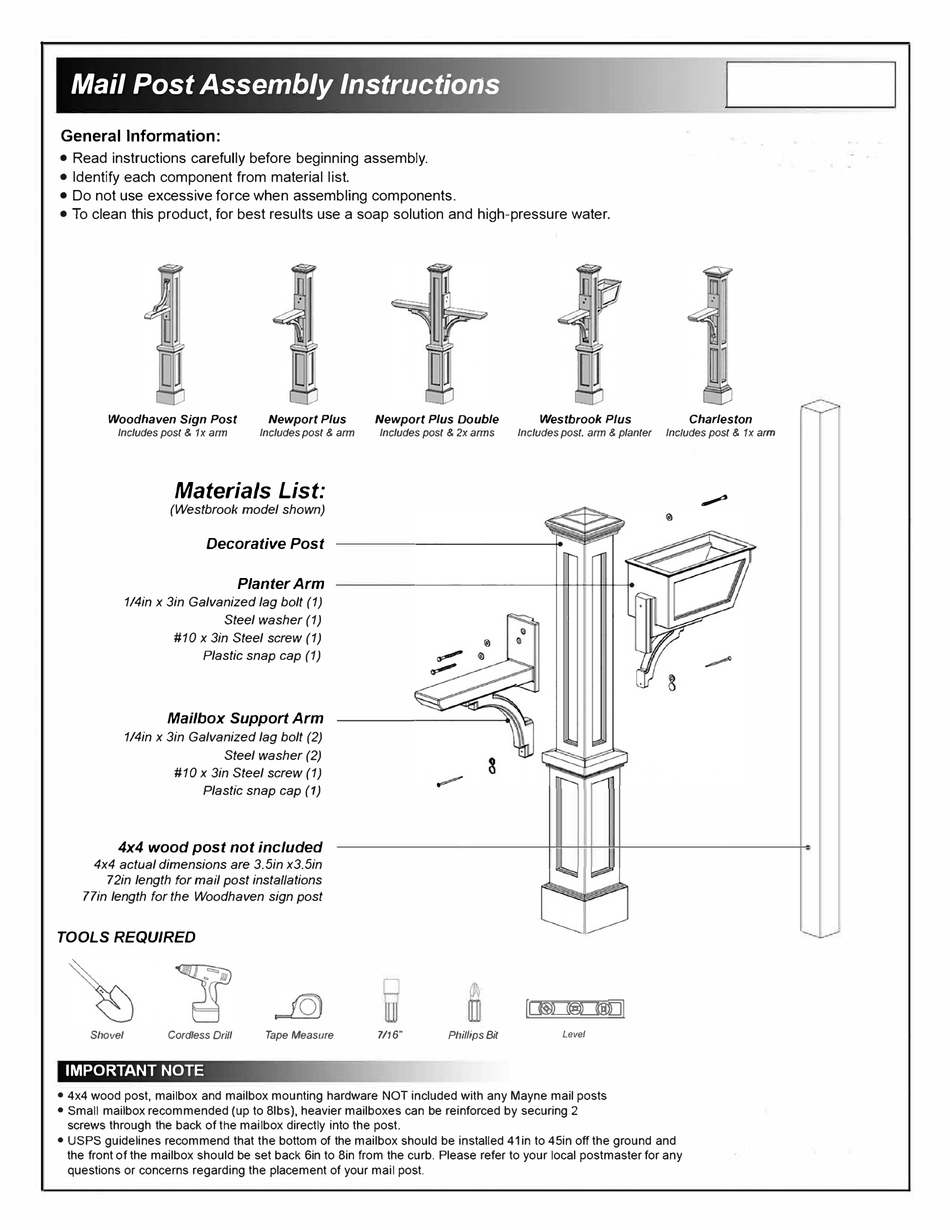

Mail Post Assembly lnstruction

General Information:

• Read instructions carefully before beginning assembly.
• Identify each component from material list.
• Do not use excessive force when assembling components.
• To clean this product, for best results use a soap solution and high-pressure water.
Woodhaven Sign Post
Includes post tx ann
&

Materials List:

(Westbrook model shown)
Decorative Post
114in x 3in Galvanized lag bolt (1)
Steel washer (1)
#10 x 3in Steel screw (1)
Plastic snap cap (1)
Mailbox Support Arm
114in x 3in Galvanized lag bolt (2)
Steel washer (2)
#10 x 3in Steel screw (1)
Plastic snap cap (1)
4x4 wood post not included
4x4 actual dimensions are 3.5in x3.5in
72in length for mail post installations
77in length for the Woodhaven sign post

TOOLS REQUIRED

Shovel Cordless Dri l l

IMPORTANT NOTE

• 4x4 wood post, mailbox and mailbox mounting hardware NOT included with any Mayne mail posts
• Small mailbox recommended (up to Bibs), heavier mailboxes can be reinforced by securing 2
screws through the back of the mailbox directly into the post.
• USPS guidelines recommend that the bottom of the mailbox should be installed 41 in to 45in off the ground and
the front of the mailbox should be set back 6in to Bin from the curb. Please refer to your local postmaster for any
questions or concerns regarding the placement of your mail post.
Newport Plus Newport Plus Double
Includes post ann Includes post
&
Planter Arm
Tape Measure
7116"
1
s
Westbrook Plus
2x anns Includes post, ann planter
& &
ICI@I::I@D®IJI
Philli p s Bit
Level
Charleston
Includes post 1 x arm
&
.,,,,,,,
