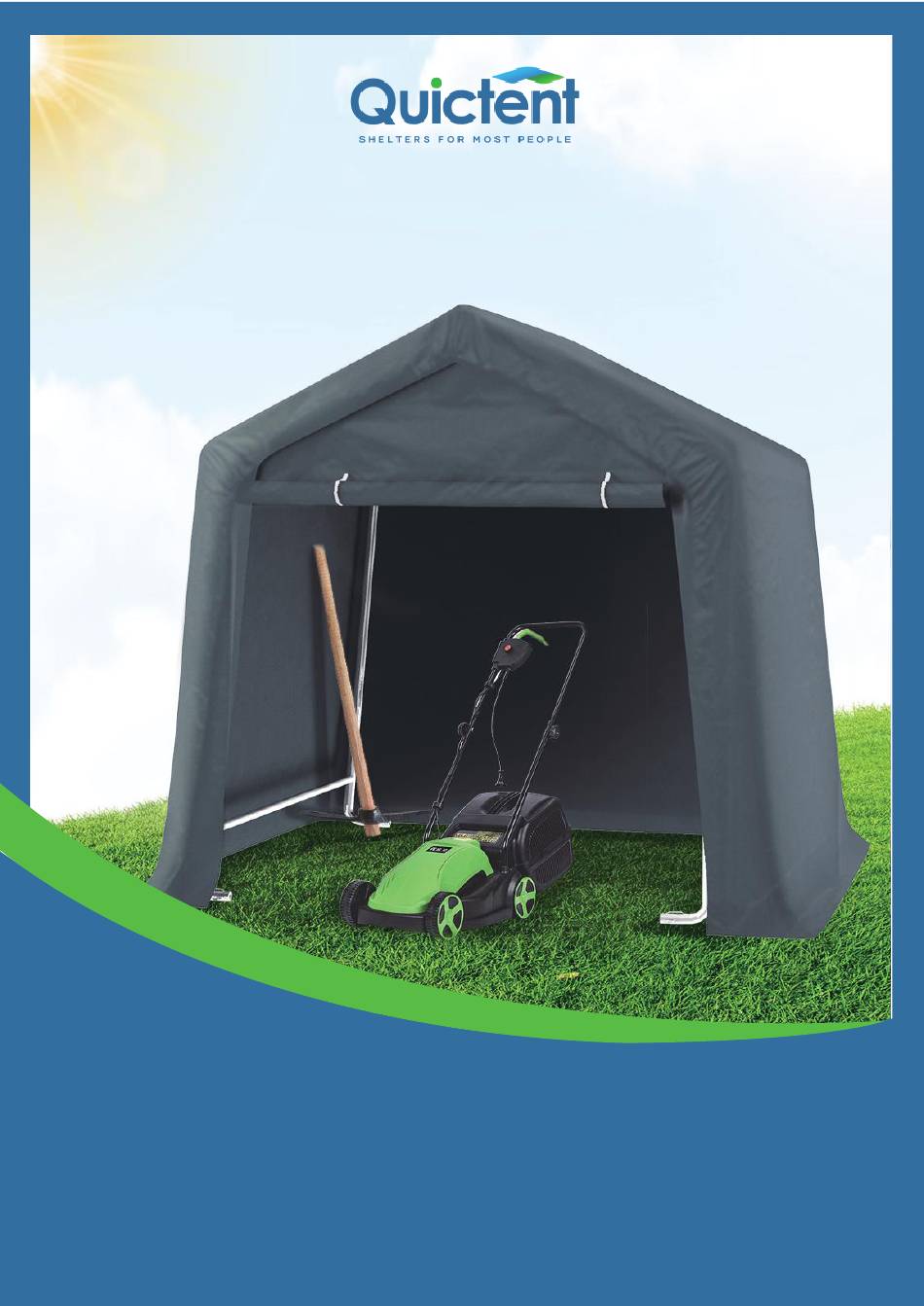

- Page 1 User Manual for Quictent Storage Shelter Please read, understand, and practice the guidelines in this user manual before use, and keep it for future reference. 6’ x 6’ 7’ x 12’ 8’ x 8’ 10’ x 10’...
-
Page 2: Table Of Contents
Add the following email address to your CONTACT LIST in case of any blocking. Email: sales@quictents.com, maxlead.us@gmail.com This user manual applies to Quictent Storage Shelter. It will help you to get to know your Quictent storage shelter. Please read the guidelines in this manual and keep the manual for future reference. -
Page 3: About Quictent
Our Service The customer-centric services are what we at Quictent take great pride in. In addition to the hassle-free warranty covering all Quictent products, an industrial-leading support team is standing behind at all times. Whenever you need help or have any suggestions and comments about our products, do not hesitate to reach us via sales@quictents.com or maxlead.us@g-... -
Page 4: 6' X 6' (Model #1116)
(she) should take the loss. 6’ x 6’ (Model #1116) Parts List You’ll receive one (1) box for this model. Please pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List, so does the quantity for each part. - Page 5 Part Number Diagram Description Quantity (PCS) Steel Pole Steel Pole Steel Pole Steel Pole 3-Way Corner Connector Curved Foot Base Screw (M6 x 45 mm) Metal Clip Bungee Cord Wrench Auger Anchor Cover Zipper Door Ratchet Clamp Assembly Steps Before the assembly, please check to make sure that you have all the parts listed on the Parts List above.
- Page 6 Step 2 Assemble the mainframe. Attach 2 x poles (#3) to the connectors (#A) on one side, then lift the structure from another side. Attach another 2 x poles (#3) to the connectors (#A) on the other side. Align the two ends of 2 x Ground Bars (#4) with the poles (#3), then reinforce each of their joints with 2 x Metal Clips (#D), and finally insert &...
- Page 7 Step 4 Assemble the 4 x Ratchet Clamps (#J) at the four corners. Thread the built-in webbing of the roof cover into the Ratchet Clamp (#J). Adjust the webbing until the roof cover is properly tightened. Hook the Ratchet Clamp (#J) with the Curved Foot Bases (#B). Step 5 Attach the 2 x Zipper Doors (#I) to the poles (#2) with Bungee Cords (#E).
-
Page 8: 8' X 8' (Model #1118) & 10' X 10' (Model #1119)
8’ x 8’ (Model #1118) & 10’ x 10’ (Model #1119) Parts List Model #1118 & Model #1119 share the same structure as below. You’ll receive one (1) box for each. Please pay particular attention to making sure all parts are numbered and graphically indexed as shown on Parts List 1 &... - Page 9 Part Number Diagram Description Quantity (PCS) Steel Pole 3-Way Corner Connector 4-Way Corner Connector Curved Foot Base Foot Base L-Shaped Peg Auger Anchor Screw (M6x 45 mm) 3-Way Metal Clip Cover Zipper Door Bungee Cord 4-Way Metal Clip Wrench Ratchet Clamp Parts List 2.
- Page 10 Part Number Diagram Description Quantity (PCS) Foot Base L-Shaped Peg Auger Anchor Screw (M6x 45 mm) 3-Way Metal Clip Cover Zipper Door Bungee Cord 4-Way Metal Clip Wrench Ratchet Clamp Assembly Steps The assembly steps for model #1118 & model #1119 are the same. Reminder Before the assembly, please check to make sure that you have all the parts listed on the Parts Lists above.
- Page 11 Step 2 Assemble the mainframe. Form a middle supporting pole by connecting a pole (#3) with a pole (#5), then repeat what you’ve done to form another middle supporting pole. On one side, attach a middle pole to the connectors (#B) on the top frame and attach 2 x poles (#3) to the connectors (#A), then lift the structure from another side.
- Page 12 Step 4 Assemble the 4 x Ratchet Clamps (#J) at the four corners. Thread the built-in webbing of the roof cover into the Ratchet Clamp (#J). Adjust the webbing until the roof cover is properly tightened. Hook the Ratchet Clamp (#J) with the Curved Foot Bases (#B). Step 5 Attach the 2 x Zipper Doors (#I) to the poles (#2) with Bungee Cords (#E).
-
Page 13: 7' X 12' (Model #1120)
7’ x 12’ (Model #1120) Parts List You’ll receive two (2) boxes for this model. You can identify the packages by referring to (Table B) below. Please also pay particular attention to making sure all parts are numbered and graphically indexed as shown on the Parts List (Table A), so does the quantity for each part. - Page 14 Part Number Diagram Description Quantity (PCS) Steel Pole 3-Way Corner Connector 4-Way Corner Connector Foot Base Curved Foot Base Ratchet Clamp 4-Way Metal Clip 3-Way Metal Clip L-Shaped Peg Screw (M6 x 40 mm) Bungee Cord Cover Zipper Door Table B. Package Contents for Shipping Cartons Part Number Parts Included 6 x Part #6 (3-Way Corner Connector)
- Page 15 Assembly Steps Before the assembly, please check to make sure that you have all the parts listed on the Parts Lists. Step 1 Layout and assemble the roof frame as instructed with the poles (6 x part #1 & 6 x part #2) and the connectors (6 x part #6 &...
- Page 16 Align the two ends of 4 x Ground Bars (#5) with the poles (#3 & #4), then reinforce each joint of the poles (#3 & #5) with 2 x 4-Way Metal Clips (#B) and each joint of the poles (#4 & #5) with 2 x 3-Way Metal Clips (#C). Please remember that you’ll use the Screws (M6 x 40 mm, #E) to fix all the joints and the Ground Bars need to pass through the cloth cover at the bottom of the tarp.
-
Page 17: Maintenance
M 6 X 4 0 M M... -
Page 18: Warranty
Quantity required for each part Pictures (or video clips, if applicable) Warning Restructuring the product without written permission from Quictent in advance would VOID the warranty. Damages due to improper use in severe weather conditions, including but not limited to high winds, heavy rain, sleet, snow, etc., will NOT be covered by the warranty. - Page 19 Party Tent Preparing for parties and events? We've got your back. Quictent party tents in different sizes are available. From a small-sized one in 10' x 8' to some regular sizes in 10' x 20' or 10' x 30' to a large one in 20' x 40', you can always find a perfect solution matching your demands.
- Page 20 Shelter for Vehicle Carport The Quictent carports share something in common: They are heavy-duty, easy-to-assemble, and of the most importance, supported by an industrial-leading after-sales service. You can choose from the ones with or without sidewalls depending on your needs.
- Page 21 Garage Shed A Quictent outdoor storage shed is not only a budget-friendly solution to keep your belongings safe, but also helps organize your life – gone is the backyard/basement clutter.
- Page 22 Light in weight and excellent in performance, Quictent truck bed tents are always a safer and more comfortable choice for road trips with a pickup truck. They can protect you from the elements when traveling and keep warm & keep you away from the crawling insects when sleeping. More importantly, whenever you want to stop to rest, the big awning would get you sheltered.
- Page 23 Grow Tent We highly recommend Quictent grow tents for anyone wanting to grow indoors. Passed the SGS certification, they’ll help create an optimal growing environment. You're sure to be surprised by lots of built-in features like more reflective cover materials, the big observation window, convenient hooks, a waterproof tray floor, etc.
