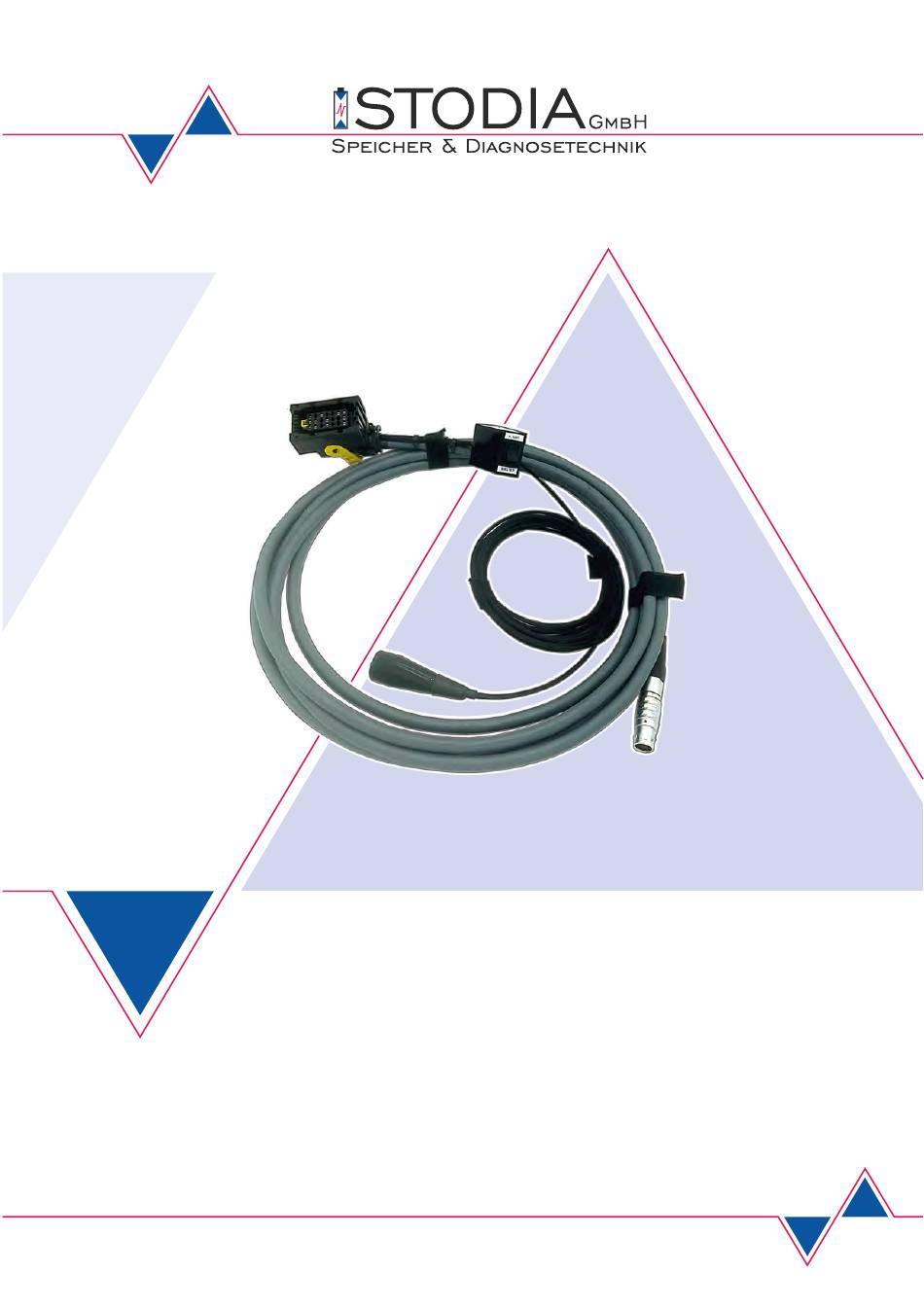

- Page 1 Operating manual Low voltage adapter cable Leavyseal Typ A 32.ST.2210.3057_BA_V01_EN...
- Page 2 TRANSLATION OF THE ORIGINAL OPERATING MANUAL All rights reserved. All text, images and graphics are subject to copyright and other intellectual property laws. Copyright 2022 Stodia GmbH. Image sources Symbols for warnings, prohibitions, mandatory actions and standards are taken from publicly accessible sources, such as the Internet.
-
Page 3: Table Of Contents
Introduction Contents Contents ..........................3 Introduction ....................... 4 Preliminary information ......................4 Validity of the declaration of conformity .................. 4 1.2.1 Addendum regarding declaration of conformity ..............4 Manufacturer specifications ...................... 4 Safety ......................... 5 Warning levels ..........................5 Important safety instructions..................... 5 Intended use .......................... -
Page 4: Introduction
Stodia's portfolio also includes smart charging and battery technology, diagnostic systems, battery and cell management, and vehicle-wide measurement and diagnostic technology. With experience in both software and hardware development, Stodia GmbH is your dependable partner at every production stage, from prototyping to series production. 32.ST.2210.3057_BA_V01_EN... -
Page 5: Safety
Safety Safety This operating manual is only valid for the following product: Item number 22103057 Low voltage adapter cable Leavyseal Typ A Designation Warning levels This chapter provides information about the warning levels used in this operating manual. DANGER Failure to observe the safety instructions WILL result in death or serious injury! -
Page 6: Intended Use
Safety WARNING Danger of fatal electric shock! The electrical voltage in high-voltage systems is lethal and can cause death by electric shock! Liquids, condensation and high humidity can cause short circuits! • Do not let the product come into contact with liquids! •... -
Page 7: Requirements For The Target Group
Safety Requirements for the target group Only qualified personnel may work with this product! In this operating manual, qualified personnel is defined as personnel meeting all requirements for working on high-voltage systems applicable in the country of operation, as defined by: •... -
Page 8: Product Description
Product description Product description Scope of delivery Immediately check the condition of the product and the completeness of the delivery. If anything is missing or defective, please contact the manufacturer immediately. (1) Low voltage adapter cable (2) USB stick with operating manual Design Product design: (1) Plug for battery management system... -
Page 9: Symbols And Connections
Product description Symbols and connections The following symbols are shown on the nameplate: Symbol Meaning Read the operating manual! Serial number of the product Disposal instruction QR code for accessing the operating manual on mobile devices. Wiring diagram 32.ST.2210.3057_BA_V01_EN... -
Page 10: Displays And Controls
The battery can be switched to “not configured” mode. MASTER The battery can be switched to “MASTER” mode. Technical data Rated data Values Manufacturer number 22103057 Maximum rated voltage DC 28 V Maximum rated current Weight ~ 370 g Cable length ~ 5000 mm... -
Page 11: Operation
Operation Operation This chapter provides information about the following activities: • Startup • Detaching the plug connection • Cleaning • Storage • Disposal • Maintenance Startup This section provides you with information about starting up and operating the product. WARNING Danger of fatal electric shock! The electrical voltage in high-voltage systems is lethal and can cause death by electric shock! - Page 12 Operation Connect the ground clip to a conductive part of the vehicle body. If the traction battery has been removed from the electric vehicle, connect the ground terminal to a conductive part of the traction battery housing. Connect the low-voltage plug to the disconnected socket on the battery management system.
-
Page 13: Detaching The Plug Connections
Operation Detaching the plug connections WARNING Risk of explosion! Product components may produce sparks and electric arcs. • Do not use the product in potentially explosive atmospheres! 4.2.1 Detaching the plug connection for the diagnostic cable (Leavyseal) The plug connection has a locking mechanism. To detach a plug connection: Pull out the locking mechanism. -
Page 14: Storage
Operation Storage Store the product in a dry and dust-free location when not in use. Observe the permitted ambient conditions (see the “Technical data” section). Disposal Observe the safety instructions! Always dispose of the product in accordance with all local disposal regulations. Maintenance Observe the safety instructions! National and local requirements for regular testing must be observed! -
Page 15: Help
Help Warranty Stodia GmbH grants a warranty period of 24 months from the date of purchase. The warranty is valid for demonstrable defects in functional material and workmanship. Further information on the warranty conditions can be found in the terms and conditions on the manufacturer’s website. - Page 16 Stodia GmbH Battery & Diagnostics Technology Im Freitagsmoor 45 38518 Gifhorn, Germany Phone: +49 (0) 53 73 / 92 197 – 0 Fax: +49 (0) 53 73 / 92 197 – 88 info@stodia.de www.stodia.de Translation of the original operating manual.
