Utemaster Sports Bar Load-Lid Manual

Ford ranger fx4 double cab under rail liner
Hide thumbs Also See for Sports Bar Load-Lid:

Advertisement

Quick Links

Download this manual
50315-01-05R
50315-01-05L
CT5
M8 Fender
Washer
M8 Spring
Washer
TK-M8x25
© Copyright Utemaster NZ Ltd.

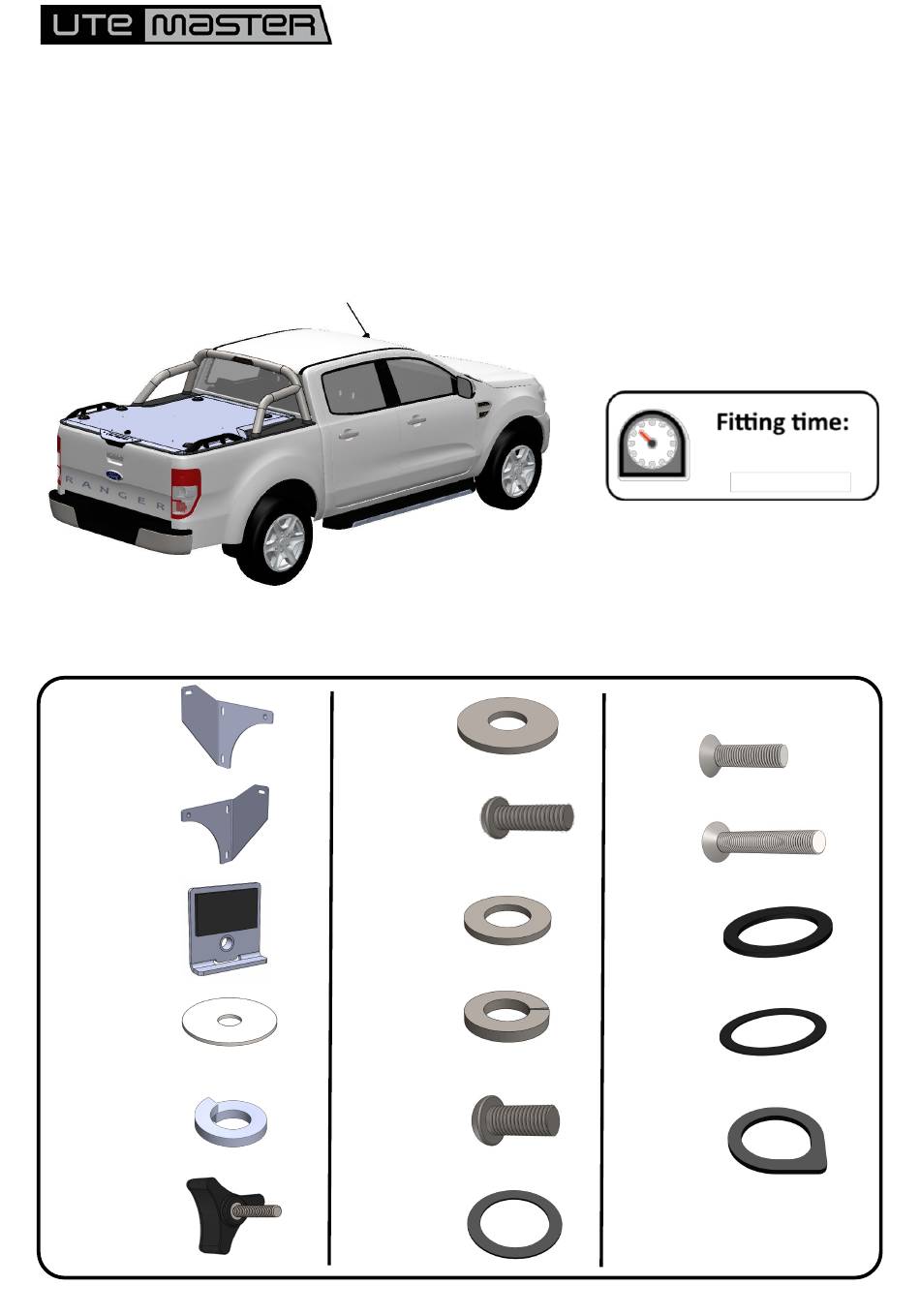

Ford Ranger FX4 Double Cab
Sports Bar Load-Lid™
Under Rail Liner
Despatch list:
x1
M8 Medium
Washer
x1
M8x25 Button
Head Bolt
M6 Medium
x2
Washer
M6 Spring
x4
Washer
M6x16
Button Head
x8
Bolt
50315-16-09
x4
3mm Foam
Foot
NZ Support:
P:
0800 683 352
E:
sales@utemaster.co.nz
W:
www.utemaster.co.nz
M8x30 Countersink
x4
Bolt
M8x50 Countersink
x4
Bolt
50315-16-06
x2
6mm Foam
Foot
x2
50315-16-07
3mm Foam
Foot
x2
50315-16-08
6mm Foam
Foot
x2
Australia Support:
P:
1800 353 383
E:
utemaster@autosafe.com.au
W:
www.utemaster.com.au
90-120 minutes
x2
x2
x2
x2
1xL
1xR
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Sports Bar Load-Lid and is the answer not in the manual?

Questions and answers

Related Manuals for Utemaster Sports Bar Load-Lid

Summary of Contents for Utemaster Sports Bar Load-Lid

  • Page 1 Head Bolt Bolt 50315-16-06 M6 Medium 6mm Foam Washer Foot M6 Spring 50315-16-07 M8 Fender Washer 3mm Foam Washer Foot M6x16 50315-16-08 Button Head M8 Spring 6mm Foam Bolt Washer Foot 50315-16-09 TK-M8x25 3mm Foam Foot © Copyright Utemaster NZ Ltd.
  • Page 2 Remove the rubber feet from the Sports Bar. Highly recommend watching the video before installation. Scan the QR code. Sports Bar Preparation Video https://wi.st/2Si0Pnz Cut the rubber feet as per the video. © Copyright Utemaster NZ Ltd.
  • Page 3 Insert foam feet to the sport bar. 50315-16-07 50315-16-09 4.__ 1.__ 3mm Foam 3mm Foam Foot Foot Trimmed rubber Trimmed rubber 5.__ 2.__ feet feet 50315-16-06 6mm 50315-16-08 3.__ 6.__ Foam Foot 6mm Foam Foot © Copyright Utemaster NZ Ltd.
  • Page 4 NZ Support: Australia Support: 0800 683 352 1800 353 383 sales@utemaster.co.nz utemaster@autosafe.com.au www.utemaster.co.nz www.utemaster.com.au 1.____ 2.____ 1.__ 2.__ Bolts go into existing threads in the tray. © Copyright Utemaster NZ Ltd.
  • Page 5 Bolts go into existing threaded holes in the sport bar. • Begin threading the bolt using a hex key to prevent cross- threading • Use lubricant if the thread is too tight • Fasten BOTH SIDES. © Copyright Utemaster NZ Ltd.
  • Page 6 Australia Support: 0800 683 352 1800 353 383 sales@utemaster.co.nz utemaster@autosafe.com.au www.utemaster.co.nz www.utemaster.com.au 1. Customer provided cardboard. Note: Place cardboard between cab and tray to protect the paint from scratching during installation. Load-Lid™ Fitting Video https://wi.st/2OW7L7N © Copyright Utemaster NZ Ltd.
  • Page 7 NZ Support: Australia Support: 0800 683 352 1800 353 383 sales@utemaster.co.nz utemaster@autosafe.com.au www.utemaster.co.nz www.utemaster.com.au Pull Load-Lid™ back to ensure face plate tab is sitting firmly against the tray. © Copyright Utemaster NZ Ltd.
  • Page 8 NZ Support: Australia Support: 0800 683 352 1800 353 383 sales@utemaster.co.nz utemaster@autosafe.com.au www.utemaster.co.nz www.utemaster.com.au Make sure the Load-Lid is sitting firmly on BOTH SIDES. Ensure Load-Lid™ Is sitting square on the tray. © Copyright Utemaster NZ Ltd.
  • Page 9 NZ Support: Australia Support: 0800 683 352 1800 353 383 sales@utemaster.co.nz utemaster@autosafe.com.au www.utemaster.co.nz www.utemaster.com.au Only clamp through the rear two slots marked ‘A’ at this stage. 1.______ 2.______ 3.______ 4.______ © Copyright Utemaster NZ Ltd.
  • Page 10 NZ Support: Australia Support: 0800 683 352 1800 353 383 sales@utemaster.co.nz utemaster@autosafe.com.au www.utemaster.co.nz www.utemaster.com.au Clamp through the two remaining slots. 1.______ 2.______ 3.______ © Copyright Utemaster NZ Ltd.

  • Page 11: Important Note

    QR code below for details. Slam Lock Adjustment Video. https://wi.st/2Bp7XJ9 IMPORTANT NOTE: When removing and refitting lock the lid into the mounting frame before undoing the clamps and removing the lid (this prevents damaging the tray). © Copyright Utemaster NZ Ltd.
  • Page 12 Your Load-Lid™ is now fully fitted and ready to use. We recommend frequently tightening the clamps and greasing the lock to enjoy the full benefits of your Load-lid. Thank you again for using Utemaster and don’t forget to keep checking our website for our latest innovations!
