CT5
M8 Fender
Washer
M8 Spring
Washer
TK-M8x25
© Copyright Utemaster NZ Ltd.
Mazda BT-50 2020+ Double Cab
Sports Bar Load-Lid™
Under Rail Liner
Despatch list:
x4
x4
x4
x4
NZ Support:
P:
0800 683 352
E:
sales@utemaster.co.nz
W:
www.utemaster.co.nz
M8x50 Button
Head Bolt
M8 Medium
Washer
PRT-004286
M8 Spring
Washer
Australia Support:
P:
1800 43 345
E:
sales@utemaster.com.au
W:
www.utemaster.com.au
60-90 minutes
x4
x4
x6
x4
1
Advertisement
Related Manuals for Utemaster Sports Bar Load-Lid
Summary of Contents for Utemaster Sports Bar Load-Lid

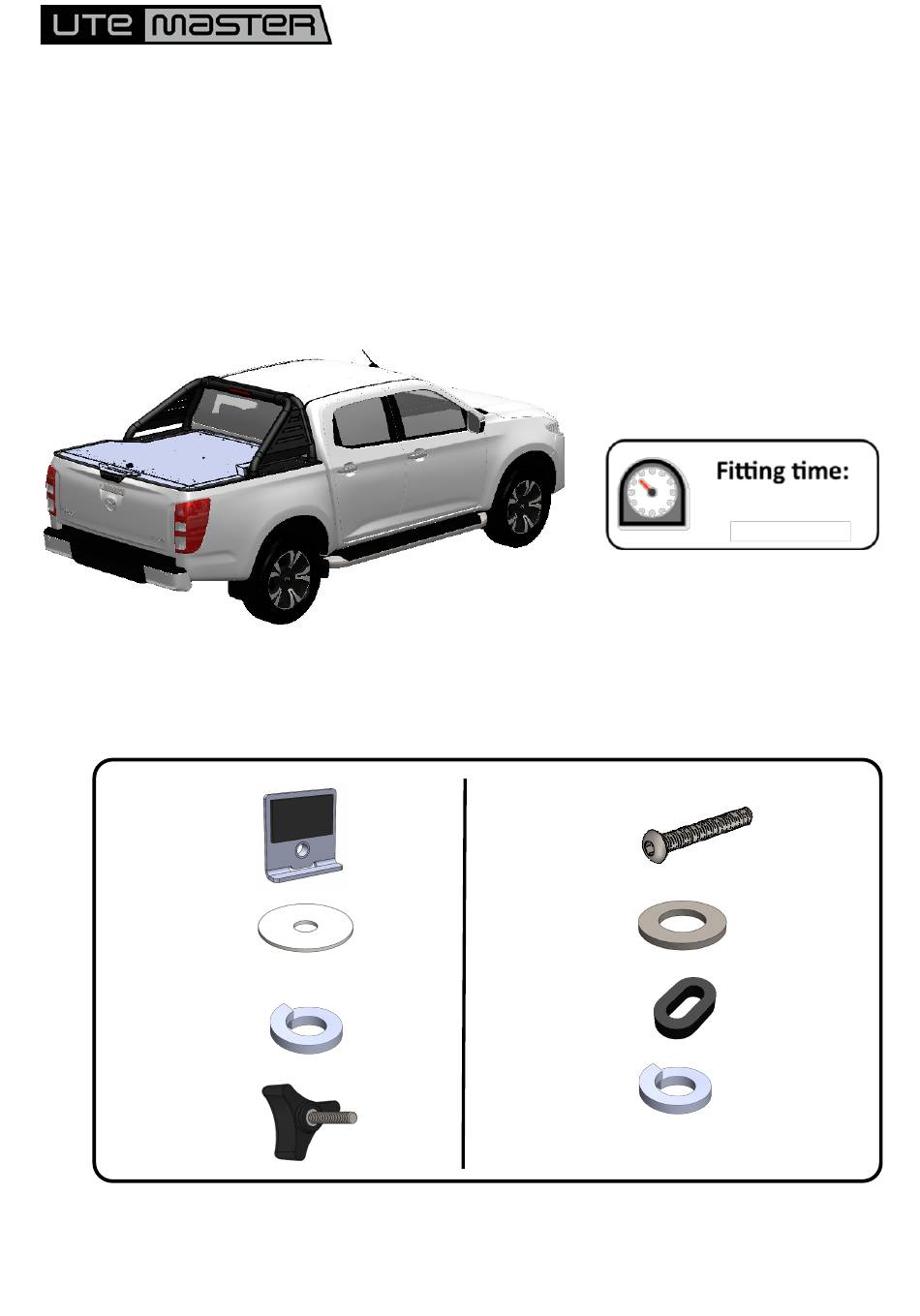

- Page 1 Mazda BT-50 2020+ Double Cab Sports Bar Load-Lid™ Under Rail Liner 60-90 minutes Despatch list: M8x50 Button Head Bolt M8 Medium M8 Fender Washer Washer PRT-004286 M8 Spring Washer M8 Spring Washer TK-M8x25 © Copyright Utemaster NZ Ltd.
- Page 2 (if installed) Remove the mounting brackets from the sports bar (if these are fitted). Place the sponge washers on the Load-Lid over the face plate holes in the positions indicated on each side. PRT-004286 © Copyright Utemaster NZ Ltd.
- Page 3 Ensure the wire is put through the sponge seal washer and the face plate hole before fitting the bar. (Only one side of the bar has a wire, the hole on the other side will be blank) © Copyright Utemaster NZ Ltd.
- Page 4 1. Customer provided cardboard. Note: Place cardboard between cab and tray to protect the paint from scratching during installation. Load-Lid™ Fitting Video https://wi.st/2OW7L7N Connect the sports bar brake light wiring to the vehicle © Copyright Utemaster NZ Ltd.
- Page 5 NZ Support: Australia Support: 0800 683 352 1800 43 345 sales@utemaster.co.nz sales@utemaster.com.au www.utemaster.co.nz www.utemaster.com.au Pull Load-Lid™ back to ensure face plate tab is sitting firmly against the tray. © Copyright Utemaster NZ Ltd.
- Page 6 NZ Support: Australia Support: 0800 683 352 1800 43 345 sales@utemaster.co.nz sales@utemaster.com.au www.utemaster.co.nz www.utemaster.com.au Make sure the Load-Lid is sitting firmly on BOTH SIDES. Ensure Load-Lid™ Is sitting square on the tray. © Copyright Utemaster NZ Ltd.
- Page 7 NZ Support: Australia Support: 0800 683 352 1800 43 345 sales@utemaster.co.nz sales@utemaster.com.au www.utemaster.co.nz www.utemaster.com.au Only clamp through the rear two slots marked ‘A’ at this stage. 1.______ 2.______ 3.______ 4.______ © Copyright Utemaster NZ Ltd.
- Page 8 NZ Support: Australia Support: 0800 683 352 1800 43 345 sales@utemaster.co.nz sales@utemaster.com.au www.utemaster.co.nz www.utemaster.com.au Clamp through the two remaining slots. 1.______ 2.______ 3.______ © Copyright Utemaster NZ Ltd.
-
Page 9: Important Note
QR code below for details. Slam Lock IMPORTANT NOTE: Adjustment Video. When removing and refitting lock the lid into the mounting frame before undoing https://wi.st/2Bp7XJ9 the clamps and removing the lid (this prevents damaging the tray). © Copyright Utemaster NZ Ltd. - Page 10 Your Load-Lid™ is now fully fitted and ready to use. We recommend frequently tightening the clamps and greasing the lock to enjoy the full benefits of your Load-lid. Thank you again for using Utemaster and don’t forget to keep checking our website for our latest innovations!
