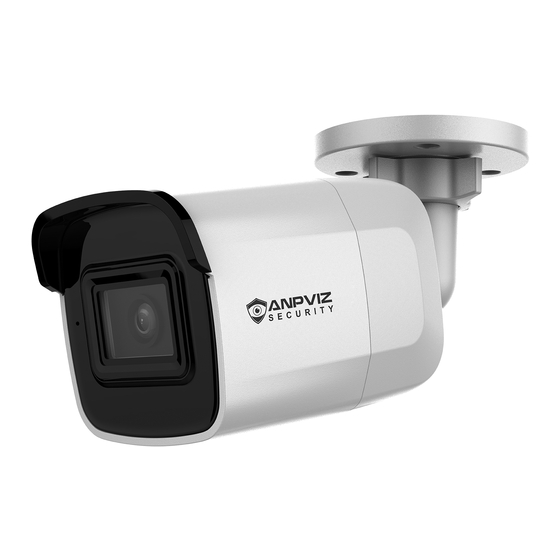

Network bullet camera
Hide thumbs Also See for HK Series:

Advertisement

Quick Links

Download this manual
User
Manual
HK Series
Network Bullet Camera
EN / DE / FR / ES / IT Version

Advertisement

loading
Need help?

Need help?

Do you have a question about the HK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ANPVIZ HK Series

Summary of Contents for ANPVIZ HK Series

  • Page 1 User Manual HK Series Network Bullet Camera EN / DE / FR / ES / IT Version...
  • Page 2 Thank you very much for choosing ANPVIZ. Our products are supported by the world's first video monitoring manufacturers. and they have adopted military level of protection. It is our top priority to ensure your data safety and offer you a satisfactory service.

  • Page 3: About This Manual

    About this Manual The Manual includes instructions for using and managing the product Picture, charts, images and all other information hereinafter are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.

  • Page 4: Eu Conformity Statement

    —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver Is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Conditions This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.
  • Page 5 Warnings: Serious Injury or death may occur if any of the warnings are neglected. Cautions: Injury or equipment damage may occur if any of the cautions are neglected. Warnings: Follow these safeguards to Cautions: Follow these precautions to prevent serious injury or death. prevent potential injury or material damage.

  • Page 6: Appearance Description

    • Do not place the camera In extremely hot, cold (the operating temperature shall be -30°C to +60°C, or -40"C to +60*C if the camera model has an "H1 in its suffix), dusty or damp Locations, and do not expose it to high electromagnetic radiation. •...

  • Page 7: Installation

    Type II: Bullet Camera Overview 2. Installation Before you start: • Make sure the device in the package is in good condition and all the assembly parts are included. • Hie standard power supply is PoE or12 VDC, please make sure your power supply matches with your camera.
  • Page 8 Steps: 1. Loosen the screws to remove the memory card slot cover. Unscrew the Cover and Insert Memory Card 2. Insert the memory card into the memory card slot. 3. (Optional)To unmount the memory card, push to get it ejected. 4.
  • Page 9 Note: Drill the cable hole. If adopting ceiling outlet to route the cable. The Drill Template 3. Route the cables through the cable hole (optional), or the side opening. 4. Fix the camera on the ceiling with supplied screws. Note: •...
  • Page 10 5. Connect the corresponding power cord, and network cable. 6. Power on the camera, and set the network configuration (for details, refer to 3 Activate and Access Network Camera) to check whether the Image Is gotten from the optimum angle. If not, adjust the surveillance angle. 1) Loosen the No.
  • Page 11 Steps: 1. Paste the drill template (supplied) to the desired mounting position on the wall. 2. Drill the screw holes and the cable hole (optional) In the wall according to the drill template. Note: Drill the cable hole, if adopting ceiling outlet to route the cable. The Drill Template 3.
  • Page 12 5. Secure the junction box's body with three supplied screws on the wall Fix the Junction Box on the Wall 6. Route the cables through the cable hole. Here we take bottom cable hole as the example to describe the installation. 1) .
  • Page 13 2.4 Install Network Cable Waterproof Jacket If the camera is installed outdoor, you should use the waterproof accessory to waterproof the network cable. Otherwise the cable might get wet or a short circuit occurs. Install Waterproof Jacket Step: 1. Feed the network cable through ①Ù and ③Û In order. 2.
  • Page 14 4. Operate IP Cameras via IE Browser You can configure the IP cameras In the LAN network via the IE browser. 1. Power on the camera with a DC 12 V adapter and connect it to the same router as your computer with a network cable.
  • Page 15 4. Double click the camera's address or you can input the IP address on the IE browser to enter the login page. The default account name is admin and the password is the one you just set up. 5. Download and install the plug-in to view live video and manage the camera. Close the browser when installing the plug-in.
  • Page 16 5. Remote Live Stream via Smart phones You can view the IP camera remotely via your mobile phone with the GuardingVision App. 1. Power on the camera with a DC 12 V adapter and connect it to the same router as your computer with a network cable.
  • Page 17 4. Click Read and Agree GuardingVision terms of service to enable GuardingVision service before continuing to add the device. Create a verification code and finish the adding process. After that, the device will be shown in the device list. Click the device name to get live view.
  • Page 18 3. Launch Guarding Vision/IVMS 4200 software. The control panel and live view interface of Guarding Vision/IVMS 4200 are shown below. 4.Go to Control Panel-Device Management-Device. At the bottom of the screen and in the Online Devices section, the screen will display all devices on the network. Create a password to active the device if the device's status is inactive.
  • Page 19 6.Go to Control Panel-Main View. If you have added the IP camera, you can get a live view in the screen (as shown in the picture below). For more information, Please press F1 to get user manual 7. View Live Stream with Other Software thats Supports RTSP Protocol The IP camera supports RTSP protocol.
  • Page 20 8. Connect IP Cameras to ANPVIZ NVRs 1. Please confirm that the resolution of the IP camera is not higher than the resolution that the NVR supports. For example, the maximum resolution that the NVR108-8P NVR supports is 8MP. You can only connect the IP camera with up to 8MP resolution.
  • Page 21 4. After logging in the camera, please go to Configuration -> Network -> Advance Setting -> Integration Protocol. Check the Enable ONVIF box. Click Add to create an ONVIF account and password. The ONVIF account and password will be used when you add the IP camera to the third-party NVR or DVR.
  • Page 22 Anpviz Security Electronics Co.,Ltd. Tech Support Email Address: support@annpvizsecurity.com Made in China...
