Bartuf KYS-816D quad B001650 Assembly Instructions

Assembly Instructions
Flexi-News™ quad B001650
Tel: 0113 244 5524 Fax: 0113 244 6664 email: sales@bartuf.com web: www.bartuf.com
All dimensions are approximate and may be subject to change.
All drawings and designs are protected by design right and copyright©
Patents GB 2293538B.GB 2317328 US 6,112,912
1.
x1
x2
A
x2

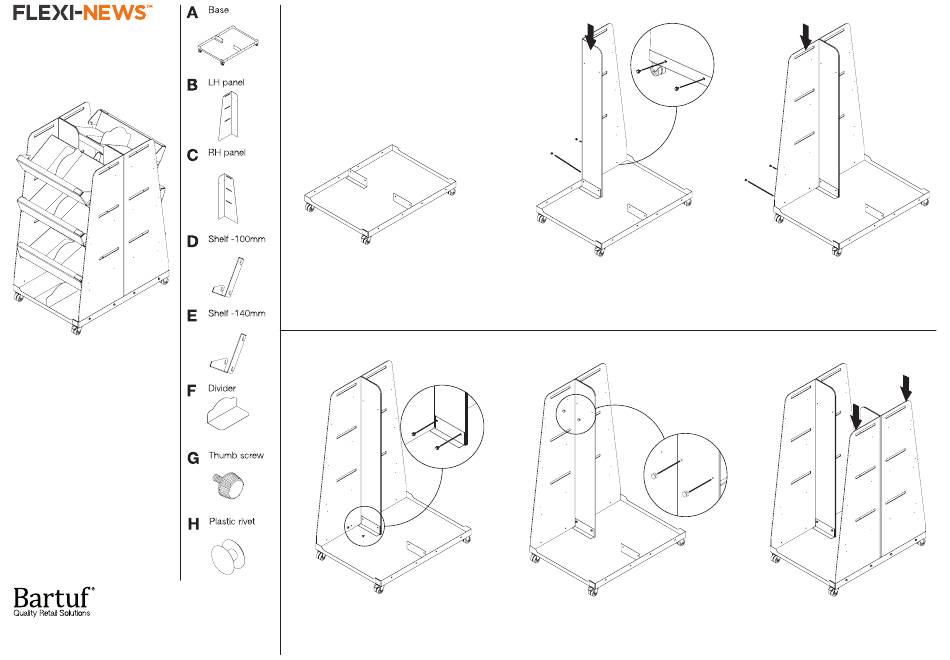

First, take base (A) and ensure brakes are
applied to the two castors that have them.
x4
Braked castors are at opposite corners of
base.
4.
x2
x8
G
x12
x4
Secure both panels to the upright tab on the
base with x2 thumb screws (G). Ensure the 90°
returns of both panels sit on the same side of
the upright tab on base (A) as shown.
2.
C
G
G x2
With the base locked in place, drop the first
RH panel (C) into the base (A) as shown above.
Secure in place with x2 thumb screws (G).
5.
H
Next secure the panels together at the top using
x2 plastic rivets (H). The plastic rivet (H) is a 2
piece component that secures the panels when
pressed together from both sides.
3.
B
G x2
Next postion the first LH panel (B) in place
and secure with x2 thumb screws (G).
6.
B
C
Repeat steps 2-5 to install the remaining
set of LH and RH panels as shown above.
