Bartuf Flexi News B001765 Assembly Instructions

Assembly Instructions
Flexi-News™ cross category
Flexi News™
Cross category single
B001765
Tel: 0113 244 5524 Fax: 0113 244 6664 email: sales@bartuf.com web: www.bartuf.com
All dimensions are approximate and may be subject to change.
All drawings and designs are protected by design right and copyright©
Patents GB 2293538B.GB 2317328 US 6,112,912

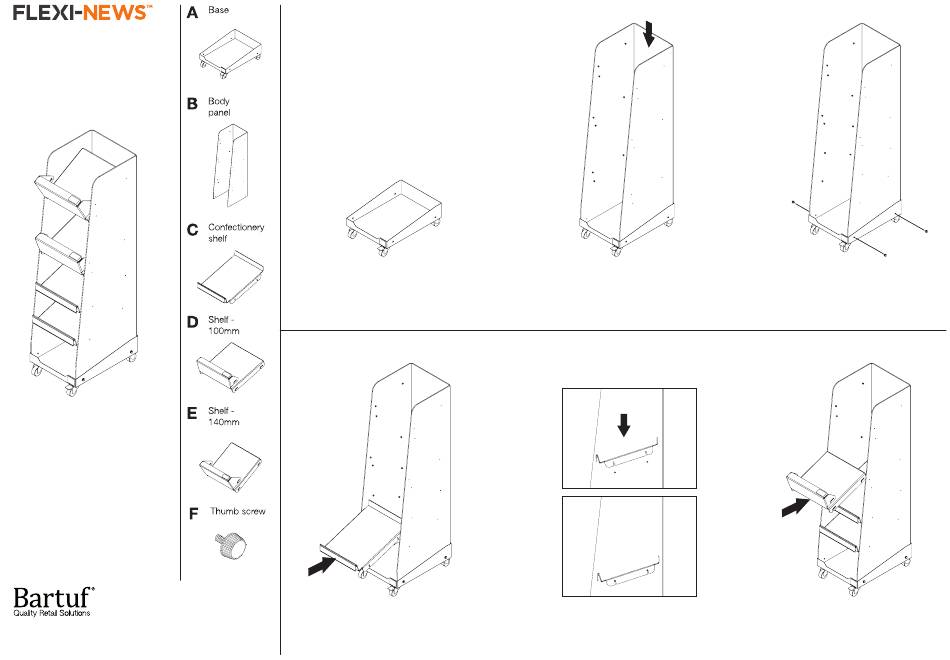

1.
x1
x1
A
First, take base (A) and ensure brakes are
applied to the two castors that have them.
Braked castors are at opposite corners of
x2
base.
4.
x1
x1
x4
C
Next take the first of the confectionery shelves (C).
Locate the slots on the sides of the shelf with the
studs on the body panel (B).
2.
B
With the base locked in place, drop the body
panel (B) into the base (A) as shown above.
5.
C
PUSH
DOWN
C
Guide the slots on the sides of the shelf onto the
metal studs on the body (B). Push down until the
shelf 'snaps' into place.
3.
F
Next secure the body panel (B) in place
with x4 thumb screws (F). Screw the fixings
through holes in side of base and through
body panel.
6.
D
Repeat steps 4 and 5 for the second
confectionery shelf (C). Next install the
100mm shelf (D) above the two
confectionery shelves (C) as shown.
