Bartuf Flexi-News B001730 Assembly Instructions

Assembly Instructions
Flexi-News™ cross category
Flexi News™
triple
B001727

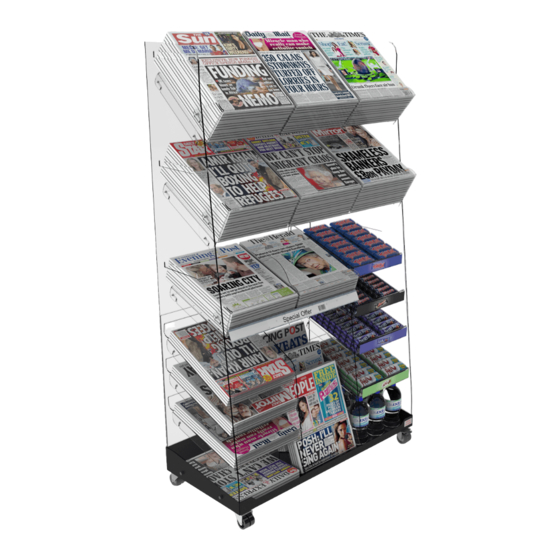

Flexi News™
tall triple
B001730
Tel: 0113 244 5524 Fax: 0113 244 6664 email: sales@bartuf.com web: www.bartuf.com
All dimensions are approximate and may be subject to change.
All drawings and designs are protected by design right and copyright©
Patents GB 2293538B.GB 2317328 US 6,112,912
1.
x1
x1
x1
A
x1
x1

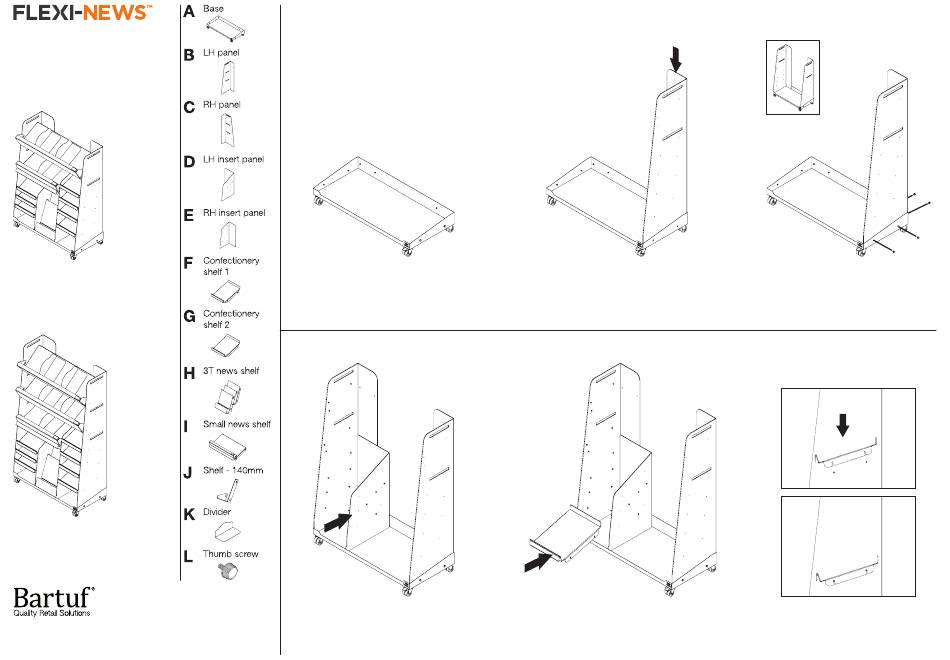

First, take base (A) and ensure brakes are
applied to the two castors that have them.
Braked castors are at opposite corners of
x3
base.
4.
x4
x1
x1
x1/2
D
x3/5
x8
Next place the LH insert panel (E) onto the
base as shown.
2.
C
With the base locked in place, drop the RH
panel (C) into the base (A) as shown above.
5.
F
Take the first confectionery shelf 1 (F) and locate
the slots on the sides onto the lowest set of metal
studs on the left hand panel of the existing display
and the LH insert panel (D).
3.
Fig. i
L
Next secure the RH panel (C) in place with
x4 thumb screws (L). Repeat steps 2 and
3 for the LH panel (B). Both LH and RH
panels should now be in place as in Fig. i
6.
F
PUSH
DOWN
F
Install the remaining confectionery shelves
(F) to create a 3 tier module on the left
hand side.
