Lintec MC-3500L Series Instruction Manual

Mass Flow Controller
Instruction Manual
MC-3500L Series
Safety Precautions
Incorrect handling may cause death or injury
(1) Before connecting the fittings, check that no damage or defects are found on
the fittings. Make connections properly and make sure that a leak test is
conducted before actual operation to prevent fluid from leaking into the
atmosphere (Hereafter, the measured fluid is called "gas" or "fluid").
(2) DO NOT apply any corrosive fluid to materials exposed to gas. Corrosion may
cause gas to leak into the atmosphere.
(3) This device is not designed as an explosion proof structure. DO NOT use this
device in a place where explosion-proof structures are required. Doing so may
cause fire or explosion.
Incorrect handling may lead to medium or slight injury or may
cause damage to, or loss of, facilities or equipment
(1) Observe the precautions listed in the WARNING (above).
(2) Strictly observe the electrical specifications. Not doing so may cause fire,
damage to sensors or malfunction.
(3) This device is not designed to be waterproof. DO NOT locate this device
outdoors or in a place where it may be splashed with water. Doing so may cause
fire, trouble, or malfunction of the device.
(4) DO NOT modify this device. It may cause fire or other problems.
(5) While a power supply is applied to the device, +15VDC and -15VDC must be
applied simultaneously. If only +15VDC or -15VDC is applied, electronic
circuits will become unstable and it may cause a malfunction.
(6) This device is not designed to handle hot swap. Please avoid attaching and
removing the power supply connector and interface connector with the power
switched on. Attachment and/or removal with the power on may result in
failure of the device.
(7) This device is a precious device, please handle it carefully. Dropping down or
handling it carelessly will cause damage. Please use assist instrument while
moving or setting the device.
(8) Regular maintenance is recommended for steady use of this device
(Recommended proofreading frequency is once a year).
1. Introduction
This manual explains basic operation of the MC-3500L series (Hereafter, it is called
"MFC"). Please read through this manual and other separate volumes (Digital
Interface Manual, Special Function Manual, Command Chart) carefully to
familiarize yourself with the features of this device.
2. Summary
The MFC is high performance mass flow controller for gas using thermal flow
sensor and high response piezoelectric valve. In the MFC model, MO type and
MC type are available depending on the kind of valve operation mode.
3. Features
The MFC is the following features.
(1) LINTEC's proprietary ambient temperature compensation type flow sensor is carried.
· Low sensor temperature, long-time steady monitor, and few problems such
as degradation of gas to be monitored.
· The effect of ambient temperature is less because the sensor temperature is
kept at the ambient temperature.
· Steady temperature distribution of sensor and high-speed response.
(2) Digital computing system with microprocessor and high-resolution A/D, D/A
converter is carried.
· High functionality.
· By setting of device number (address), multiple devices can be controlled
through a single interface.
· Many additional are provided as standard, e.g., totalizer function, zero adjust,
ramping function.
(3) Universal digital Interface (RS-485).
(4) Small dead space structure using a diaphragm valve.
(5) Superior corrosion resistant sealing materials make maintenance easy. Metal
seals (Au).
(6) Particle-free structure.
(7) By using a metal case and various types of filters, steady operation can achieve
even in an environment of high-frequency noise and stationary magnetic field.
(8) RoHS compliant

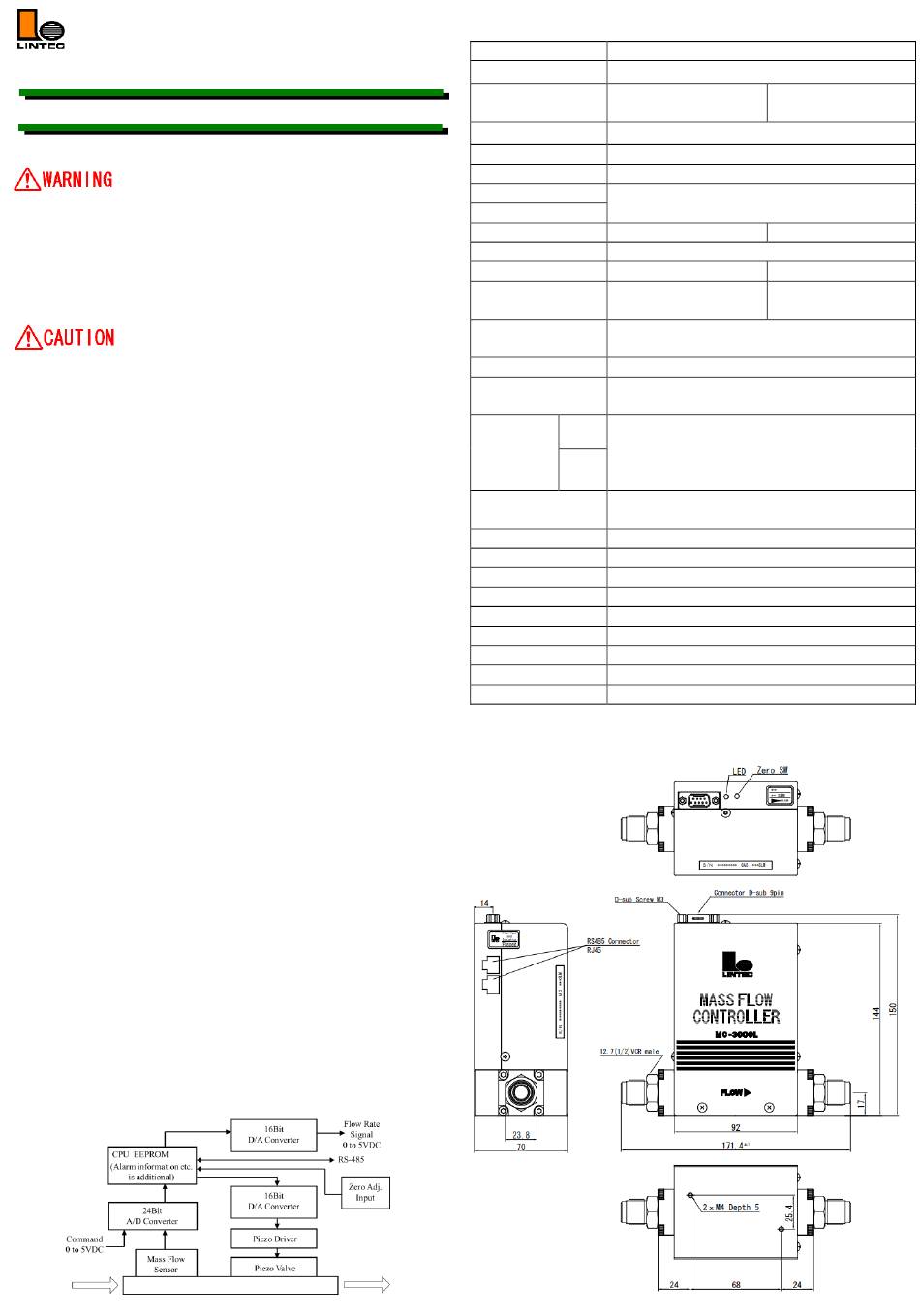

4. Structure
The MFC consists of sensors, bypass, valves, and a microcomputer for signal
processing. A digital PID feedback control system controls the valve action so that
flow rate output from the sensor agrees with flow rate setting value.
LN0469E2112B0 5. Specification / Dimensions
(1) Specification
Name
Model
Standard flow rate in
nitrogen
Valve operation mode
Internal surface treatment
Minimum controllable flow rate
Analog flow rate output signal
Analog flow rate setting signal
Accuracy
Repeatability
Response time
Operating differential
pressure
Maximum operating
pressure (Note1)
Withstanding pressure
Operating temperature &
Humidity
Temperature
coefficient
(Standard
Temp.25 ºC)
Storage temperature &
Humidity
Leak integrity
Mounting direction
Wetted materials
Seal Materials
Actuator
Fittings
Power supply
Digital interface
Weight
·Connect this unit to the frame ground.
(2) Dimensions
Mass Flow Controller
MC-3582L
300SLM
Normally closed valve
No treatment
Proportional to flow rate 0 to 5VDC
±2.0% F.S.
±1.0%F.S.
1 second (Typical)
320 to 500kPa
500kPa(G)
1MPa(G)
5 to 50 ºC·0 to 80%RH (Condensation should be avoided)
Zero
±0.1%F.S./ºC
Span
0 to 60 ºC·0 to 80%RH (Condensation should be avoided)
Less than 1×10
Stainless steel 304, Stainless steel 316L, Teflon, Viton, Au
Piezoelectric actuator
12.7mmVCR
+15V DC±3%: 100mA
RS-485 (2-wire)
Approx. 2.4kg
400SLM
2%F.S.
±3.0% F.S.
2 second (Typical)
350 to 500kPa
-8 3
Pa · m /sec (He)
Free
Au
-15VDC±3%: 50mA
