InFocus SP7205 Lamp Replacement Update

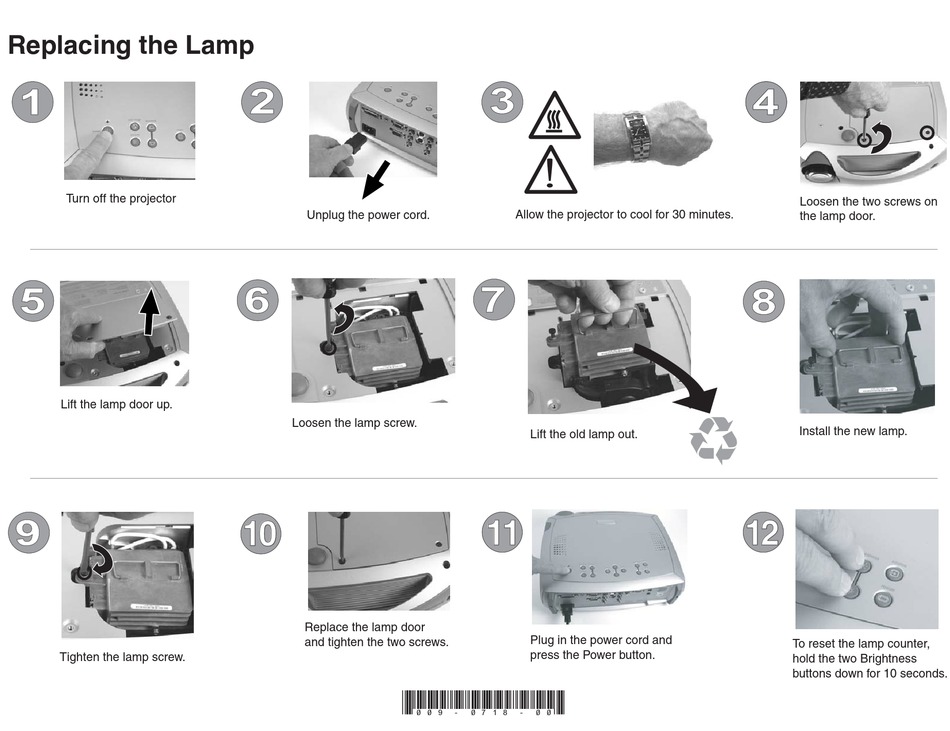

Replacing the Lamp

Turn off the projector
Lift the lamp door up.
9
Tighten the lamp screw.
Unplug the power cord.
Loosen the lamp screw.
10 10
Replace the lamp door
and tighten the two screws.
*009-0718-00*
!
Allow the projector to cool for 30 minutes.
Lift the old lamp out.
11 11
Plug in the power cord and
press the Power button.
Loosen the two screws on
the lamp door.
Install the new lamp.
12 12
To reset the lamp counter,
hold the two Brightness
buttons down for 10 seconds.
