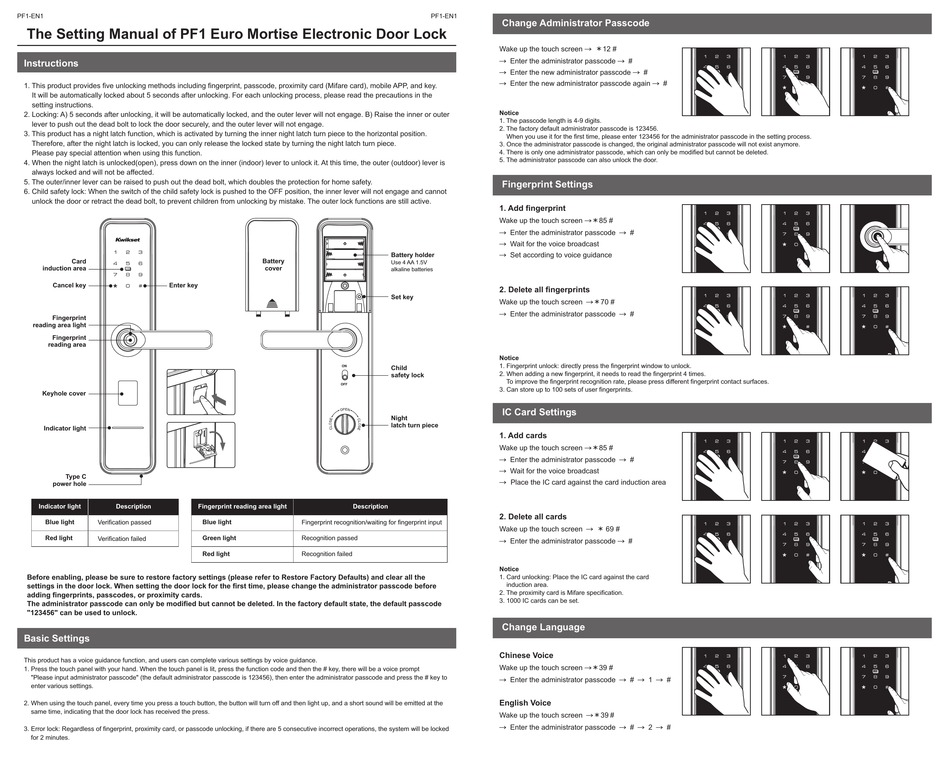

The Setting Manual of PF1 Euro Mortise Electronic Door Lock
Instructions
1. This product provides five unlocking methods including fingerprint, passcode, proximity card (Mifare card), mobile APP, and key.
It will be automatically locked about 5 seconds after unlocking. For each unlocking process, please read the precautions in the
setting instructions.
2. Locking: A) 5 seconds after unlocking, it will be automatically locked, and the outer lever will not engage. B) Raise the inner or outer
lever to push out the dead bolt to lock the door securely, and the outer lever will not engage.
3. This product has a night latch function, which is activated by turning the inner night latch turn piece to the horizontal position.
Therefore, after the night latch is locked, you can only release the locked state by turning the night latch turn piece.
Please pay special attention when using this function.
4. When the night latch is unlocked(open), press down on the inner (indoor) lever to unlock it. At this time, the outer (outdoor) lever is
always locked and will not be affected.
5. The outer/inner lever can be raised to push out the dead bolt, which doubles the protection for home safety.
6. Child safety lock: When the switch of the child safety lock is pushed to the OFF position, the inner lever will not engage and cannot
unlock the door or retract the dead bolt, to prevent children from unlocking by mistake. The outer lock functions are still active.
Card
induction area
Cancel key Enter key
Fingerprint
reading area light
Fingerprint
reading area
Keyhole cover
Indicator light
Type C
power hole
Indicator light Description
Blue light Verification passed
Red light
Verification failed
Before enabling, please be sure to restore factory settings (please refer to Restore Factory Defaults) and clear all the
settings in the door lock. When setting the door lock for the first time, please change the administrator passcode before
adding fingerprints, passcodes, or proximity cards.
The administrator passcode can only be modified but cannot be deleted. In the factory default state, the default passcode
"123456" can be used to unlock.

Basic Settings

This product has a voice guidance function, and users can complete various settings by voice guidance.
1. Press the touch panel with your hand. When the touch panel is lit, press the function code and then the # key, there will be a voice prompt
"Please input administrator passcode" (the default administrator passcode is 123456), then enter the administrator passcode and press the # key to
enter various settings.
2. When using the touch panel, every time you press a touch button, the button will turn off and then light up, and a short sound will be emitted at the
same time, indicating that the door lock has received the press.
3. Error lock: Regardless of fingerprint, proximity card, or passcode unlocking, if there are 5 consecutive incorrect operations, the system will be locked
for 2 minutes.
Battery
cover
Fingerprint reading area light Description
Blue light Fingerprint recognition/waiting for fingerprint input
Green light Recognition passed
Red light Recognition failed
PF1-EN1

Change Administrator Passcode

Wake up the touch screen → ✽12 #
→ Enter the administrator passcode → #
→ Enter the new administrator passcode → #
→ Enter the new administrator passcode again → #
Notice
1. The passcode length is 4-9 digits.
2. The factory default administrator passcode is 123456.
When you use it for the first time, please enter 123456 for the administrator passcode in the setting process.
3. Once the administrator passcode is changed, the original administrator passcode will not exist anymore.
4. There is only one administrator passcode, which can only be modified but cannot be deleted.
5. The administrator passcode can also unlock the door.

Fingerprint Settings

1. Add fingerprint
Wake up the touch screen →✽85 #
→ Enter the administrator passcode → #
→ Wait for the voice broadcast
→ Set according to voice guidance
Battery holder
Use 4 AA 1.5V
alkaline batteries
2. Delete all fingerprints
Set key
Wake up the touch screen →✽70 #
→ Enter the administrator passcode → #
Notice
1. Fingerprint unlock: directly press the fingerprint window to unlock.
Child
2. When adding a new fingerprint, it needs to read the fingerprint 4 times.
safety lock
To improve the fingerprint recognition rate, please press different fingerprint contact surfaces.
3. Can store up to 100 sets of user fingerprints.

IC Card Settings

Night
latch turn piece
1. Add cards
Wake up the touch screen →✽85 #
→ Enter the administrator passcode → #
→ Wait for the voice broadcast
→ Place the IC card against the card induction area
2. Delete all cards
Wake up the touch screen → ✽ 69 #
→ Enter the administrator passcode → #
Notice
1. Card unlocking: Place the IC card against the card
induction area.
2. The proximity card is Mifare specification.
3. 1000 IC cards can be set.

Change Language

Chinese Voice
Wake up the touch screen →✽39 #
→ Enter the administrator passcode → # → 1 → #
English Voice
Wake up the touch screen →✽39 #
→ Enter the administrator passcode → # → 2 → #
