Summary of Contents for Lightstar LUXED Series

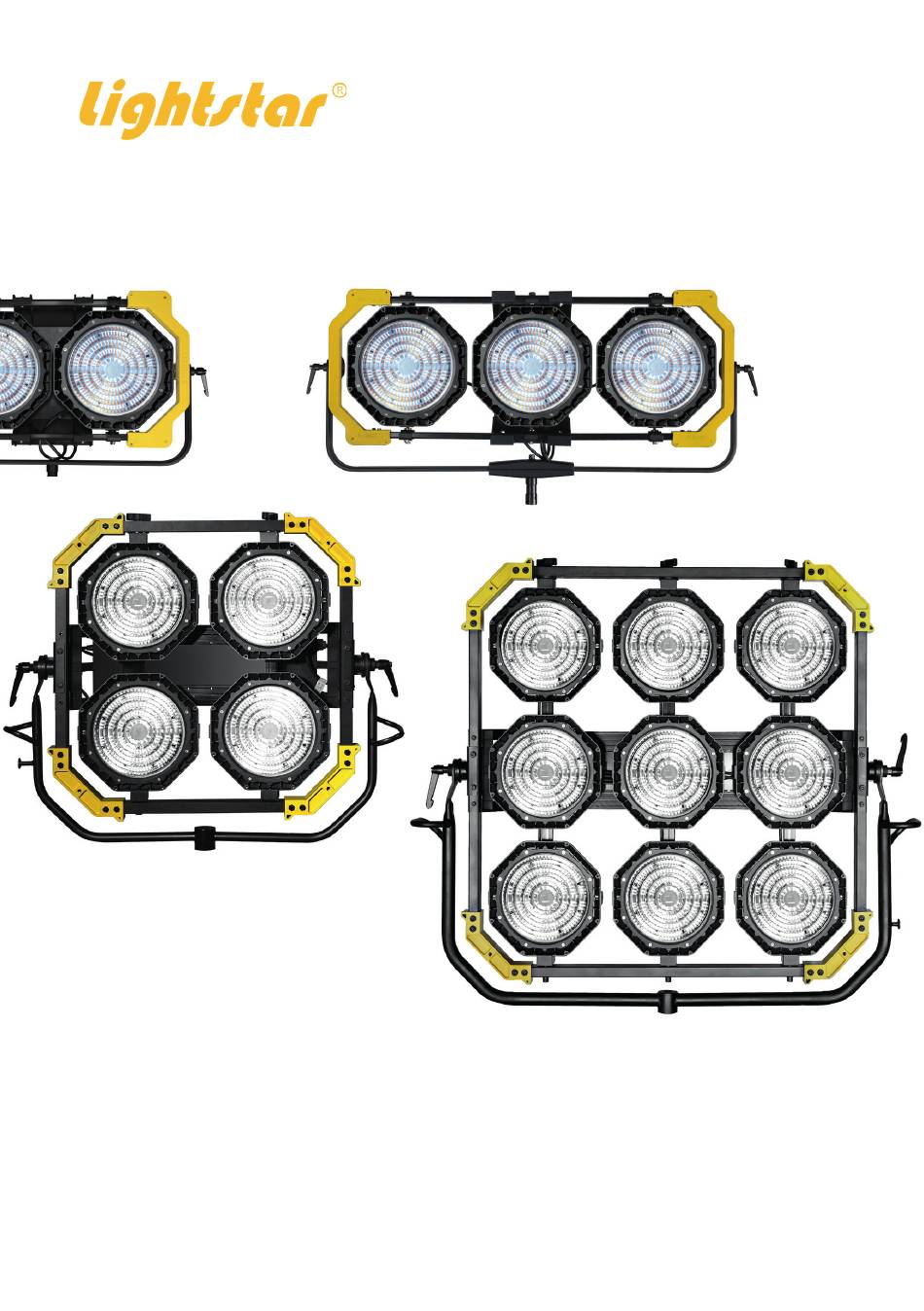

  • Page 1 LUXED Series User Manual...
  • Page 2 User Manual Version: 23. Dezember 2021, 9:37 AM Lightstar Lights info@lightstar-lights.com...

  • Page 3: Table Of Contents

    Table of Contents General Introduction General Characteristics LUXED-S – Technical Information LUXED-S – Operational Instructions LUXED-2 – Technical Information LUXED-3 – Technical Information LUXED-4 – Technical Information LUXED-6 – Technical Information LUXED-9 – Technical Information LUXED-12 – Technical Information LUXED-2 to LUXED-12 Introduction LUXED-2 to LUXED-12 Operational Instructions DMX Control...

  • Page 4: General Introduction

    By using two high-quality LED‘s the spectral light distribution is even more continuos, resulting in accurate colors. The LUXED Series has a high output of power and can be used to substitute old Dyno tungsten lights, which need a lot more power. Also the ability to change the color temperature is a huge advantage to the original Dyno lights.

  • Page 5: Luxed-S - Technical Information

    LUXED-S – Technical Information SKU: LUXED-S Description: Bi-Color LED Spotlight Power: 180W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input (indirect): 100-240V AC via power supply (3-Pin XLR) DC Input: 48V DC (DC-IN 3-Pin XLR socket) Control: DMX In- &...

  • Page 6: Luxed-S - Operational Instructions

    100% 3200K Figure 1 - Control Panel The LCD display (Figure 1) shows the lightstar logo on startup, as well as DMX information, when connected. Depending on the selected function, the screen shows the corresponding values. The adjustable knob next to the LCD display is used to set the color tem- perature, brightness, frequency and DMX address.
  • Page 7 Quick link button B to switch Bi-Color Mode and Frequency, in Menu but- ton B is to select down. 100% Strobe 3200 Freq 1 - - - - - - - - - - - - 50Hz - > > - - - - - - - - - - - - - - Figure 4 - Bi-Color Mode Figure 5 - Strobe Mode Quick link button E is for turning the light on / off.

  • Page 8: Luxed-2 - Technical Information

    LUXED-2 – Technical Information SKU: LUXED-2 Description: Bi-Color LED Spotlight Power: 360W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input (indirect): 100-240V AC via power supply (3-Pin XLR) DC Input: 48V DC (DC-IN 3-Pin XLR socket) Control: DMX In- &...

  • Page 9: Luxed-3 - Technical Information

    LUXED-3 – Technical Information SKU: LUXED-3 Description: Bi-Color LED Spotlight Power: 540W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input (indirect): 100-240V AC via power supply (3-Pin XLR) DC Input: 48V DC (DC-IN 3-Pin XLR socket) Control: DMX In- &...

  • Page 10: Luxed-4 - Technical Information

    LUXED-4 – Technical Information SKU: LUXED-4 Description: Bi-Color LED Spotlight Power: 720W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input (indirect): 100-240V AC via PowerCon DC Input: 48V DC (DC-IN 3-Pin XLR socket) Control: DMX In- &...

  • Page 11: Luxed-6 - Technical Information

    LUXED-6 – Technical Information SKU: LUXED-6 Description: Bi-Color LED Spotlight Power: 1080W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input: 100-240V AC via PowerCon Control: DMX In- & Output (5-Pin XLR socket) Wireless DMX (LumenRadio) Frequency: 1-50Hz...

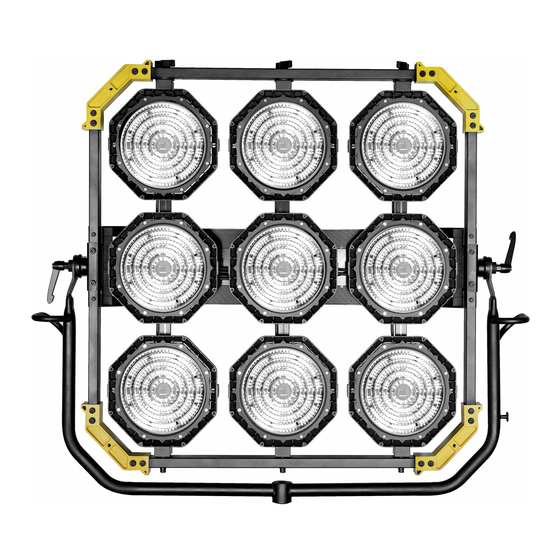

  • Page 12: Luxed-9 - Technical Information

    LUXED-9 – Technical Information SKU: LUXED-9 Description: Bi-Color LED Spotlight Power: 1620W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input: 100-240V AC PowerCon Control: DMX In- & Output (5-Pin XLR socket) Wireless DMX (LumenRadio) Frequency: 1-50Hz IP Class:...

  • Page 13: Luxed-12 - Technical Information

    LUXED-12 – Technical Information SKU: LUXED-12 Description: Bi-Color LED Spotlight Power: 2160W Material: Aluminium casting Cooling: Active Cooling Color Temperature: 2800-6500K Dimming: 0-100% CRI: TLCI: >96 AC Input: 100-240V AC via PowerCon Control: DMX In- & Output (5-Pin XLR socket) Wireless DMX (LumenRadio) Frequency: 1-50Hz...

  • Page 14: Luxed-2 To Luxed-12 Introduction

    LUXED-2 to LUXED-12 Introduction The LUXED Series ar multi-units, adjustable bi-color LED lights. Users can control these fixtures from three different modes via the menu. WALL MODE: controls the whole fixture RANK MODE: controls only one rank (column) SINGLE MODE: controls every single unit These lights all feature integrated DMX512 protocol as well as Wireless DMX via LumenRadio.
  • Page 15 100% 100% 3200 3200K - > > - - - - - - - - - - - - - - Figure 2 - Brightness Adjustment Figure 3 - Temperature Adjustment Select button M or quick link button E to enter lighting mode selection screen.

  • Page 16: Dmx Control

    DMX Control There are two kinds of DMX signal control: Wireless DMX and DMX. By default, DMX is selected. There are 5-Pin XLR In- & Outputs on the console for DMX via cable. For wireless DMX, there is an antenna mounted on the side of the ballast.
  • Page 17 Select button A/B to select DMX (cable). Select WDMX Switch if using Wireless DMX. Enter by pushing button E. DMX SETUP DMX Add DMX Mode DMX Switch Figure 1 - DMX Setup Screen When using Wireless DMX, make sure that the WDMX button on the bal- last is also in ON position! The WDMX Reset is used to resett/unlink the built-in LumenRadio module.
  • Page 18 8. The technicians must get professional trainings to install, operate or repair LED‘s. 9. If any equipment from Lightstar doesn‘t work properly, please get in contact with a Lightstar special repair department or professional techni- cian. Do not disassemble or reassemble the parts by yourself.
  • Page 19 - Damage caused by misuse or abuse, disassembly and non-original parts replacement. - Damage caused by natural disasters, unconventional voltage and envi- ronmental factors 3. Lightstar will remain in the power of interpretation. 4. Software version modification without further notice.
