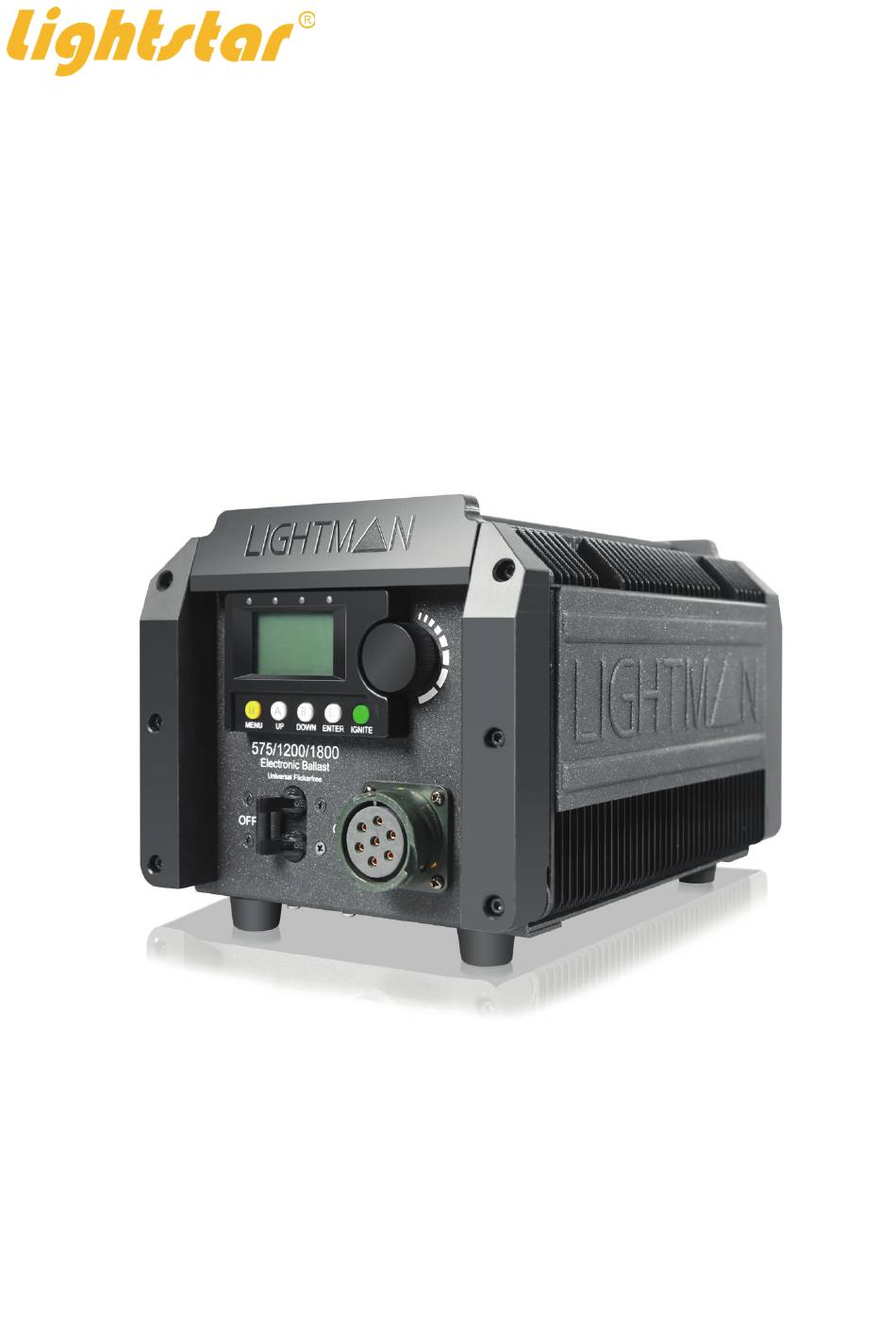

- Page 1 LIGHTMAN 575/1200/1800 EB User Manual...
- Page 2 User Manual Version: 23. Dezember 2021, 4:40 PM Lightstar Lights info@lightstar-lights.com...
-
Page 3: Table Of Contents
Table of Contents Important Safety Instructions Product Overview Technical Information Operational Instructions LCD Display Control Error Codes DMX Control Notice and Maintenance Service Warranty Ordinance... -
Page 4: Important Safety Instructions
Important Safety Instructions • Disconnect EB from mains power before power supply is being prepa- red. Do not pull connection cable with force. • Before connecting the EB to mains power, ensure that the socket is correctly wired. • The lamphead must be disconnected from power before changing or fitting the lamp. -
Page 5: Technical Information
Technical Information SKU: - EB Description: 575W / 1200W / 1800W Electronic Ballast for Metal Halide Lamps Power: 2600VA Nominal Current: 11.5 - 16A Cooling: Passive Cooling Dimming: 50-100% Output Frequency: 50/60/75/300/1000Hz AC Input: 180-250V AC / 50/60Hz / 1 Phase Control: DMX In- &... -
Page 6: Operational Instructions
Operational Instructions Energizing System 1. Check if the EB is disconnected from mains supply before connecting cables to the lamp head. 2. Check if the main circuit break switch of the EB is in the off position 3. Confirm if the lamp head meets the requirements of the EB 4. -
Page 7: Lcd Display Control
LCD Display Control 100% 100% 75Hz 25EB 75Hz IGNITE IGNITE MENU DOWN ENTER MENU DOWN ENTER Figure 1 - Menu Screen (not ignited) Figure 2 - Menu Screen (ignited) After the EB hast power and the switch is on, this LCD display pops up. After 3 minutes the EB is locked and all operations cannot be dialled. -
Page 8: Error Codes
Error Codes PARAMETERS DMX SETUP Run Data Parameters Fault Info Advanced MENU DOWN ENTER IGNITE MENU DOWN ENTER IGNITE Figure 4 - Menu Screen Figure 3 - Menu Screen Press button M to enter menu setting screen, then press button B to select Parameters. -
Page 9: Dmx Control
DMX Control DMX Setup DMX Address DMX Switch IGNITE MENU DOWN ENTER Figure 5 - DMX Screen Initial Address Set-Up In menu settings screen (Figure 3) press button B and select DMX Set- up. Then press E again to open the DMX address screen. Adjust the start address with the dimming knob by turning it. -
Page 10: Notice And Maintenance
8. The technicians must get professional trainings to install, operate or repair LED‘s. 9. If any equipment from Lightstar doesn‘t work properly, please get in contact with a Lightstar special repair department or professional techni- cian. Do not disassemble or reassemble the parts by yourself. -
Page 11: Service Warranty Ordinance
We always try to offer quick solutions, whenever possible. Do not open any de- vice without explicit consultation of Lightstar. The repair must be carried out with our guidance or if not possible by our technician team.
