Replacing the lamp

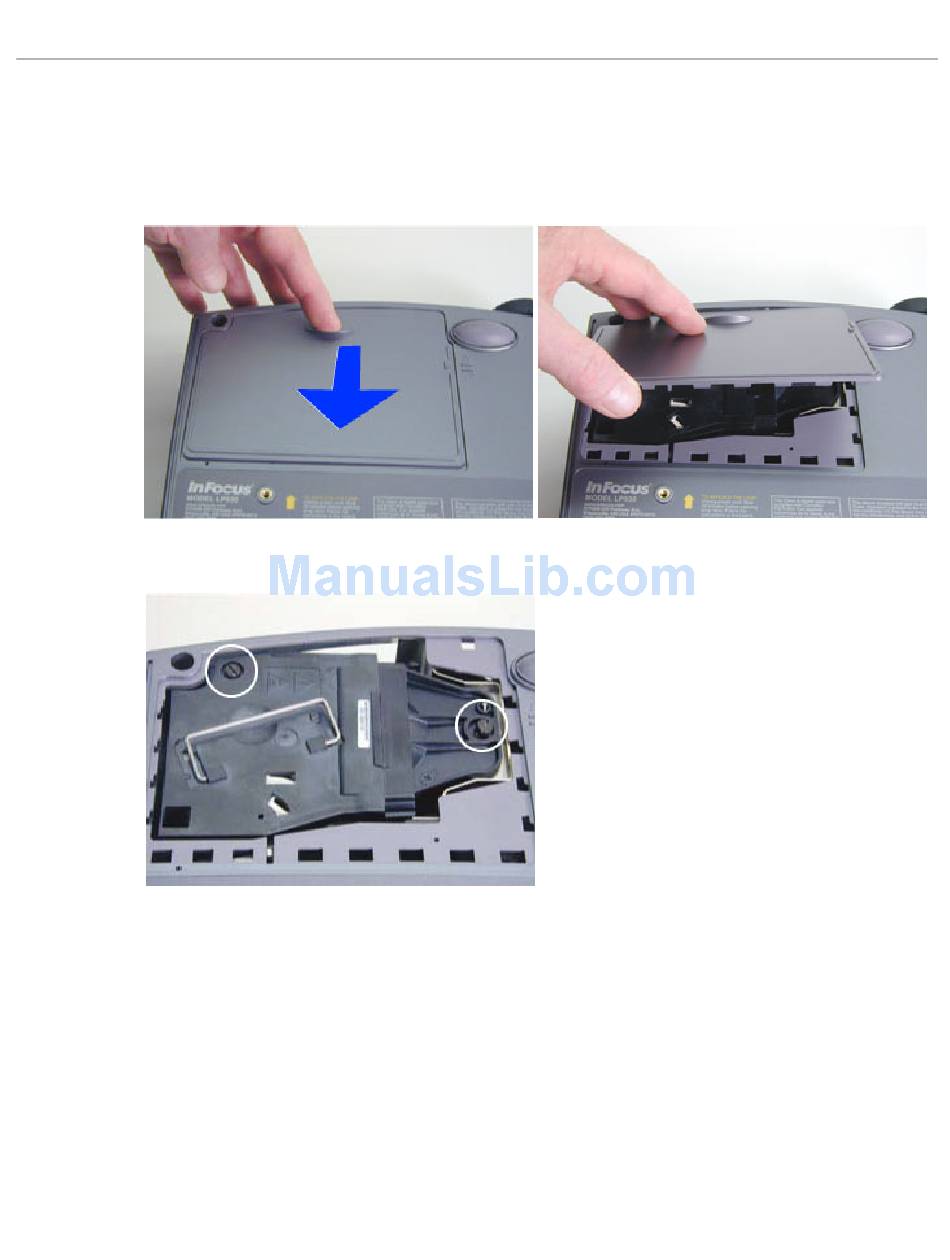

1. Place the projector upside down on a soft surface.

2. To remove the lamp door, press the lip on the outside edge of the door until the door slides

inward. Then swing the door open.

3. Loosen the two captive screws that secure the lamp to the lamp housing.

4. Swing the bail on the top of the lamp module up from its storage postion, and then pull the

module out of the projector.

Table of Contents

Do you have a question about the SP110 and is the answer not in the manual?

Page 1 ScreenPlay 110 Maintenance Replacing the lamp 1. Place the projector upside down on a soft surface. 2. To remove the lamp door, press the lip on the outside edge of the door until the door slides inward. Then swing the door open.
Page 2 Make sure the bail on the lamp module is folded down in storage position. It snaps into position. You must replace the lamp door for the projector to operate. The door is completely shut when the caret on the edge of the lamp door points to the lock icon.
Page 3 If you installed a new lamp module, follow the directions below to reset the lamp timer. Plug the projector in and turn it on. Press and hold down the Volume – button. While holding the Volume – down, press the Source button.
