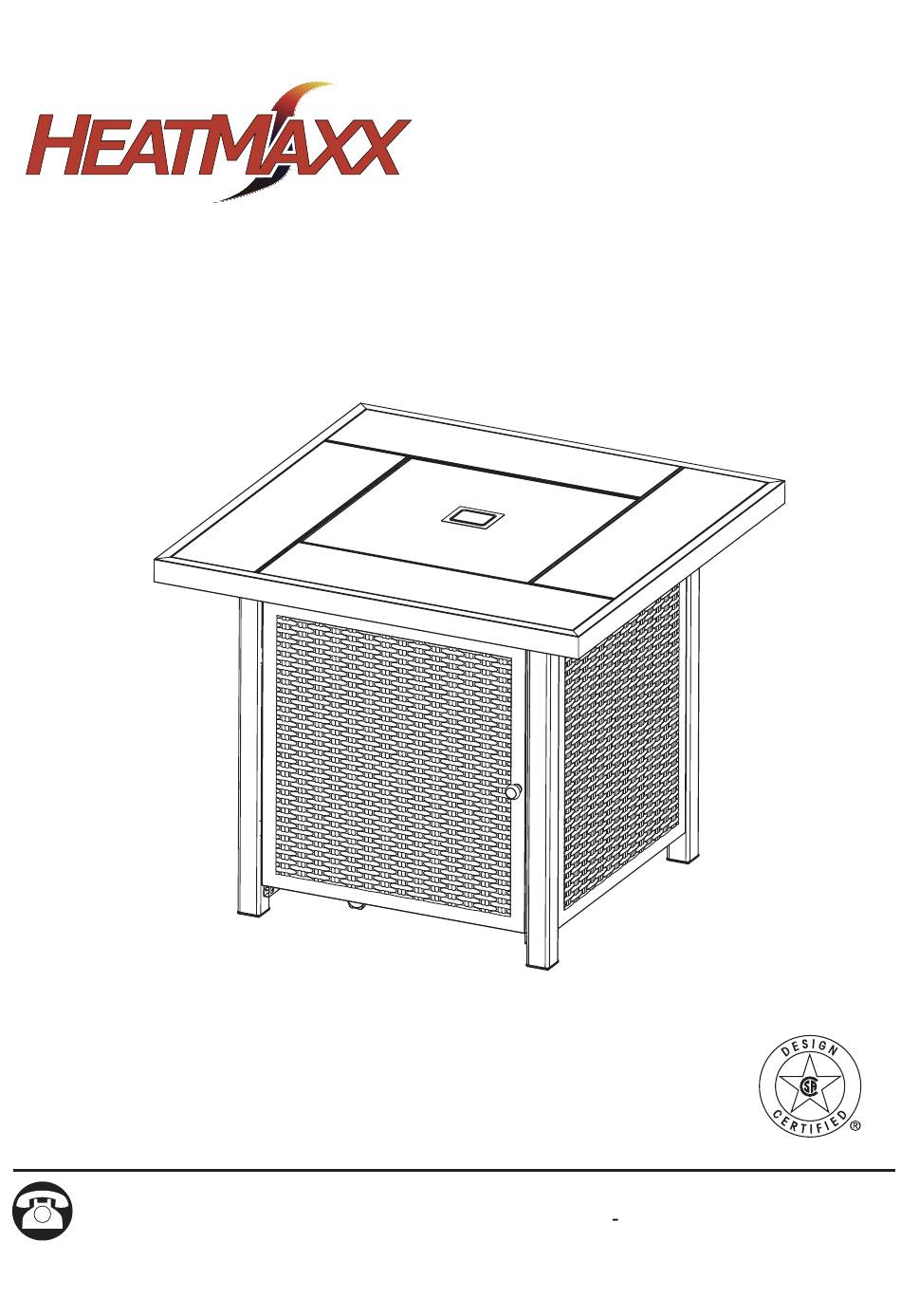

- Page 1 30" Gas Fire Pit Model #: SRGF11626 Questions, problems, missing parts? Be fore retu rning to your retaile r, call our customer service department at 1-888-909-3888, 7 :00 AM 4:00 PM PST, Monday - Friday, or e-mail to customerservice@shinerich.us.
- Page 2 WARNINGS AND CAUTIONS Read the instructions before use. This appliance must be installed in accordance with such regulations as are enforced. DANGER WARNING:For Outdoor Use Only. FIRE OR EXPLOSION HAZARD Installation and service must be If you smell gas: performed by a qualified installer, Shut off gas to the appliance.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Warnings and Cautions..............2, 4-5 Table of Contents...................3 Tools and Parts...................6-7 Assembly Instructions...............8-15 Installation Instructions ................16 Operation..................17-19 Locating Fire Pit For Use..............20 Maintenance and Storage...............21-22 Trouble Shooting..................23 Warranty Information................24 REMINDER BEFORE ASSEMBLY Verify that all parts are included with your gas fire pit BEFORE you begin assembly by checking the Parts and Hardware List. -
Page 4: Warnings And Cautions
WARNINGS AND CAUTIONS IMPORTANT SAFETY INFORMATION The installation must conform with local codes or, in the absence of local codes, with either the Natural Gas and Propane Installation Code, CSA B149.1, or the Propane Storage and Handling Code, CSA B 149.2. This appliance requires 20 lb (9 kg) LP gas supply cylinder. - Page 5 WARNINGS AND CAUTIONS NOTE: PLEASE READ THE FOLLOWING SAFETY RULES: Perform a leak test with a soapy solution: 1. To check gas connections. 2. After connecting a new cylinder. 3. Upon re-assembly after disassembly. This appliance is designed to operate with a standard 20 Ib propane cylinder with Approved Cylinder Connection.
-
Page 6: Tools And Parts
PACKAGE CONTENTS TOOLS NEEDED: (NOT INCLUDED) Philips screwdriver Estimated time for assembly: 30-45 minutes. - Page 7 PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Table Top Frame Door Handle Cylinder Holder Side Panel Control Panel Assembly Cylinder Locking Bolt Cover Lid Leg With Door Magnet Glass Chips Cylinder Holder Pole Cushion Pad Door Ceramic Tile HARDWARE CONTENTS (shown actual size) M5 x 12 Bolt Assembly M5 x 12 Bolt M5 x 20 Bolt...
-
Page 8: Assembly Instructions
Assembly Instructions Choose a good, cleared assembly area and get a friend to help you put your gas fire pit together. Lay cardboard down to protect gas fire pit finish and assembly area. Step 1 Fig. 1 Blade Connector Place the table top frame (A) upside down to the soft, level surface. - Page 9 Assembly Instructions Step 2 Fig. 2 Attach a leg with door magnet (E) and three legs (D) to the table top frame (A) with (12) M6x12 bolts (DD) as illustrated. Hardware Used M6 x 12 Bolt x 12 Fig. 3 Step 3 Attach side panel 1 (B) to two legs (D)
- Page 10 Assembly Instructions Step 4 Fig. 4 Attach cylinder holder pole (F) to two legs (D) with (2) M5x20 bolts (CC) as illustrated. Note: The side with arrow sticker assemble to the leg at front side. Hardware Used M5 x 20 Bolt Step 5 Fig.
- Page 11 Assembly Instructions Step 6 Fig.6 Attach side panel 3 (B) to a leg (D) and leg with door magnet (E) with (6) M5x12 bolts (BB) as illustrated. Hardware Used M5 x 12 Bolt Step 7 Fig.7 Attach another cylinder holder pole (F) to a leg (D) and leg with door magnet (E) with (2) M5x20 bolts (CC) as illustrated.
- Page 12 Assemb Instructions Step 8 Fig. 8 Screw cylinder locking bolt (L) to cylinder holder (K) as illustrated. Fig.9 Step 9 Attach cylinder holder (K) to cylinder hold poles (F) with (4) M6x12 bolts (DD) as illustrated. Hardware Used M6 x 12 Bolt...
- Page 13 Assembl y Instructions Step 10 Fig.10 Screw door handle (J) to door (I) as illustrated. Fig.11 Step 11 Attach door (I) to the leg (D) with (4) ST4.2x9.5 bolts (EE) as illustrated. Note: With the help of a friend, turn the gas fire pit into upright position after this step finished.
- Page 14 Assembly Instructions Fig.12 Step 12 Peel and stick the cushion pads (P) on the table top frame (A) as illustrated, total 16 cushion pads. Note: Before applying the adhesive cushion pads, be sure to wipe down the metal surface and make sure it is free of any dust or debris.
- Page 15 Assembly Instructions Step 14 Fig.14 Put the glass chips (N) into the Place the cover lid (M) onto the tabletop when the gas fire pit not use. Note: To avoid ignition failure, do not cover the shield with glass chips. shield WARNING: Failure to position the parts in accordance with these diagrams or failure to...
-
Page 16: Installation Instructions
INSTALLATION INSTRUCTIONS Fig. 15 glass chips (max15.43 lb) Open the door (I) assembly. Attach regulator to clylinder and turn clockwise by hand. Make sure the valve outlet of cylinder is facing outward. (Fig.15) 4. Make leakage solution by mixing 1 part liquid dish soap and 3 parts water. -
Page 17: Operation
OPERATION WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY DAMAGE, SERIOUS INJURY, OR DEATH. WARNING!!! WARNING Do not use an open flame to check for leakage. FOR YOUR SAFETY: Do not smoke during testing. - Page 18 OPERATION WARNING: DO NOT ATTEMPT TO OPERATE THE APPLIANCE UNTIL YOU HAVE READ AND UNDERSTAND ALL PRECAUTIONS. FAILURE TO DO SO CAN RESULT IN PROPERTY ATION DAMAGE, SERIOUS INJURY, OR DEATH. Before Lighting The gas fire pit should be thoroughly inspected before each use, and by a qualified service person at least annually.
- Page 19 OPERATION CAUTION: AVOID INHALING FUMES EMITTED FROM THE GAS APPLIANCE'S FIRST USE. SMOKE AND ODOR FROM THE BURNING OF OILS USED IN MANUFACTURING WILL APPEAR. BOTH SMOKE AND ODOR WILL DISSIPATE AFTER APPROXIMATELY 30 MINUTES. THE GAS APPLIANCE SHOULD NOT PRODUCE THICK BLACK SMOKE. NOTE: The burner may be noisy when initially turned on.
-
Page 20: Locating Fire Pit For Use
LOCATING FIRE PIT FOR USE CAUTION: WHEN CERTAIN MATERIALS OR ITEMS ARE LEFT ABOVE, BESIDE OR UNDER THIS APPLICANCE WHILE IN USE, THEY WILL BE SUBJECT TO RADIANT HEAT AND COULD BE SERIOUSLY DAMAGED. This gas fire pit is primarily used for the heating of outdoor patios, decks, spas, pools and open working areas. -
Page 21: Maintenance And Storage
MAINTENANCE AND STORAGE CLEANING AND MAINTENANCE : To enjoy years of outstanding performance from your WARNING: gas fire pit, make sure you perform the following FOR YOUR SAFETY ; maintenance activities on a regular basis: DO NOT touch or move gas appliance for at least 45 minutes after use. - Page 22 MAINTENANCE AND STORAGE NOTE: Store the fire pit indoors during the winter if it will be subjected to Wait until the appliance is freezing temperatures. cool before covering. Disconnect and remove the cylinder from the appliance before the appliance can be stored indoors. STORAGE Turn the control knob to "OFF"...
-
Page 23: Trouble Shooting
TROUBLE SHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE MEASURES OBSERVED Gas odor Gas leak Check all gas connections Check gas supply pressure. Low gas pressure. Delayed ignition Clean burner parts--see manual. Clogged or dirty burner ports. "CLEANING AND MAINTENANCE" section. Incorrect burner Incorrect gas supply or pressure. -
Page 24: Warranty Information
Warranty Information The appliance has been manufactured under the highest standards of quality and workmanship. We warrant to the original consumer purchaser that all aspects of this product will be free of defects in material and workmanship for one year from the date of purchase. A replacement for any defective part will be supplied free of charge for installation by the consumer.
