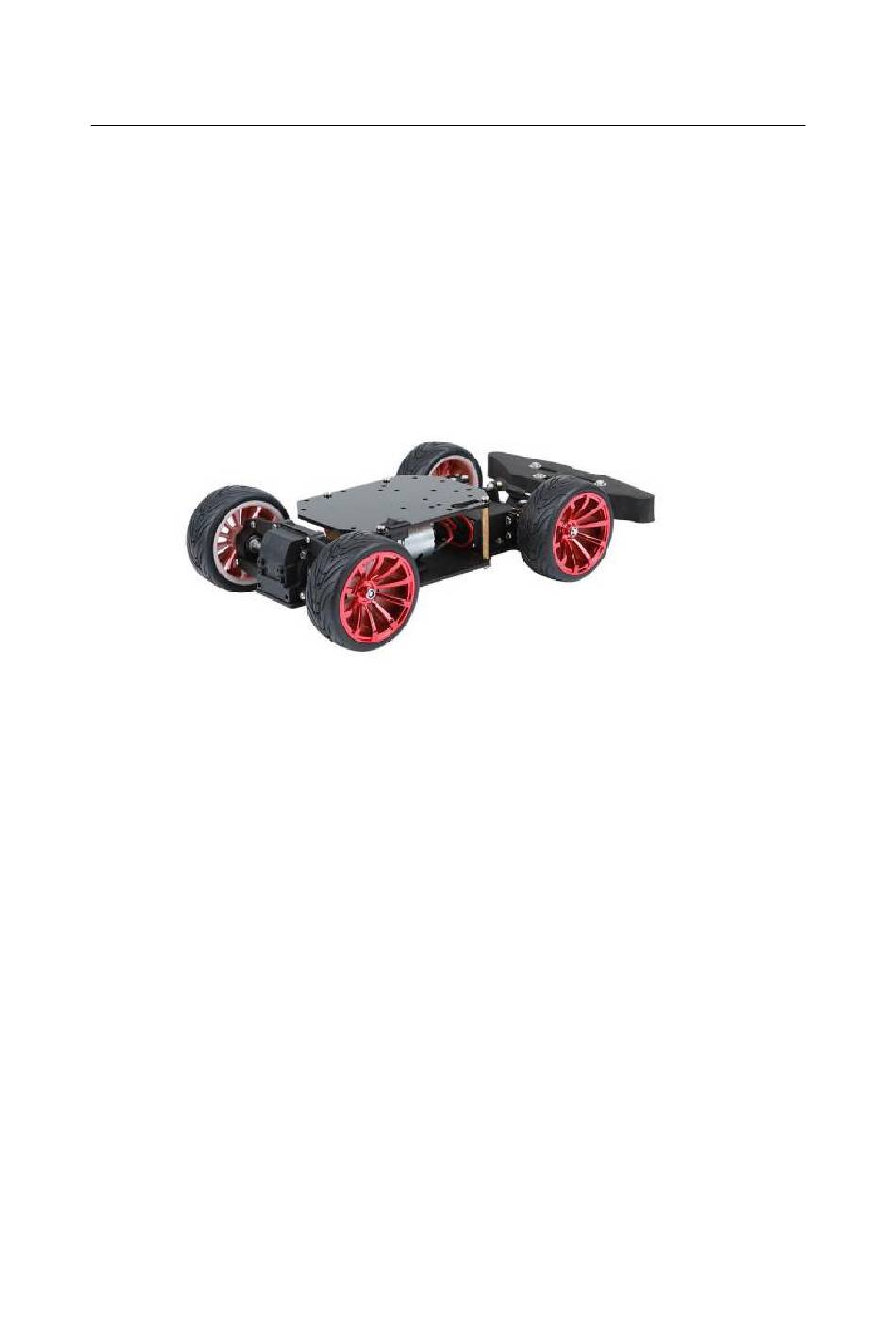

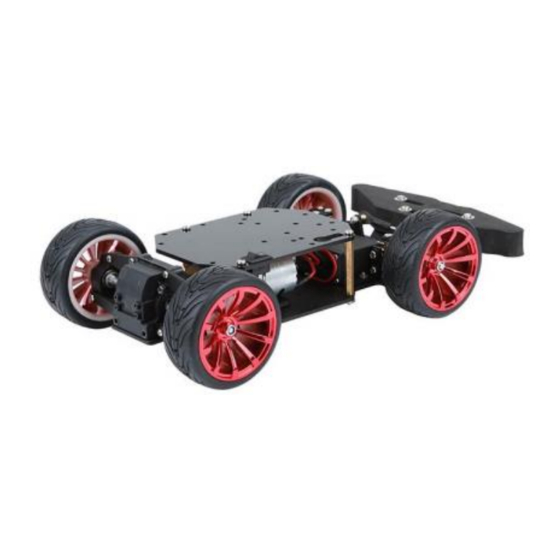

- Page 1 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit User’s Manual for Differential Car...
- Page 2 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit A. Assembly 1. Check the list Before the assembly, please check the list of items to see if there are any missing parts, flawed pieces, and make sure the parts are complete before installation.
- Page 3 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit ➢ In this order: front rotating shaft - large bearing - steering cup - small bearing - bolt - hexagon connector - wheels – locknut (M4) ➢ The rotating shaft is loaded into the inner side of the steering cup through the large bearing.
- Page 4 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit 5.3 Fix steering gear, rudder angle, steering ball stud Brown - Ground Red – Vcc Yellow - Signal ➢ Fix the steering gear on the L-shaped bracket and fixed holes are circled in red. Pay attention to the left and right positions of the steering gear output shaft.
- Page 5 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit 5.4 Fixed steering assembly ➢ The steering cup is fixed to the chassis, and kept to rotate flexibly, so as not to damage the steering gear or the main board due to the locked-rotor during steering gear rotation.
- Page 6 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit 5.5 Drive assembly lower support, wide in the inside and narrow in the outside ➢ The rear wheel seat shall be fixed at last. The transmission shaft shall be fixed to the output shaft first.
- Page 7 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit 5.6 Fix drive to the chassis ➢ Install the plastic gear on the input shaft of the reduction gearbox, fix the lock screw to the D-shaped plane, and fix it with the L-type wrench.
- Page 8 YFRobot 4WD Car Alu, mit Lenkung und Differential, Kit 5.8 Install anti-collision cotton ➢ The holes circled in red are the fixed holes of the copper cylinders, and the anti-collision cotton is pressed with gaskets. ➢ M3 * 8mm screws x 8 ➢...
