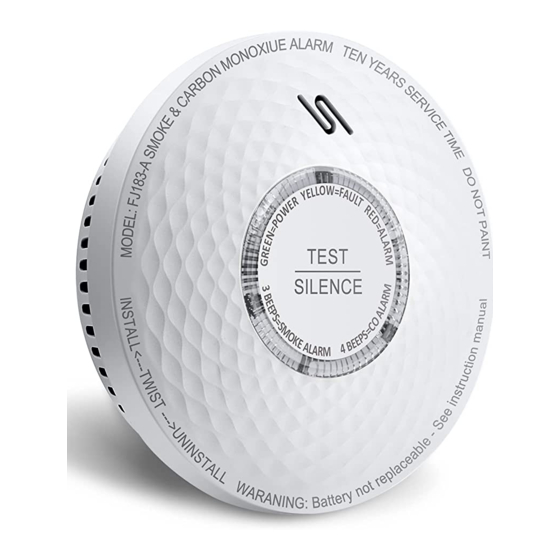

Model: FJ183
Combo Smoke/CO Alarm
User Manual
PRODUCT SPECIFICATIONS
TEST
SILENCE
• Power Supply: 3V ( EVE CR17450 )
(non-replaceable, sealed-in battery)
• CO Alarm Sensitivity Setting:
Conforms to EN50291-1:2010+A1:2012
30PPM
Without alarm before 120 minutes
50PPM
Between 60 to 90 minutes
100PPM Between 10 to 40 minutes
300PPM Less than 3 minutes
• Sensor of Smoke: Photoelectric reflection
• Smoke Alarm Sensitivity: 0.09~0.15 dB/m
• Smoke Alarm Silence: About 10 minutes
• Sensor of CO: Electrochemical
• Product Life: 10 years after manufacture
• Alarm Sound: ≥85dB at 10ft @3.2±0.5KHz
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ecoey FJ183
Summary of Contents for ecoey FJ183
- Page 1 Conforms to EN50291-1:2010+A1:2012 30PPM Without alarm before 120 minutes 50PPM Between 60 to 90 minutes Model: FJ183 100PPM Between 10 to 40 minutes 300PPM Less than 3 minutes Combo Smoke/CO Alarm • Sensor of Smoke: Photoelectric reflection • Smoke Alarm Sensitivity: 0.09~0.15 dB/m User Manual •...
- Page 2 PRODUCT OVERVIEW GENERAL MAINTENANCE To keep your Combo Smoke/CO alarm in good working order, • POWER indicator(green) please follow these simple steps: The green indicator is used to indicate power status of the 1. Verify the unit's alarm sound and indictors operation by enable device.
Need help?
Do you have a question about the FJ183 and is the answer not in the manual?
Questions and answers
Should it be mounted on a wall or a ceiling?
The Ecoey FJ183 smoke and carbon monoxide detector can be mounted on either a wall or a ceiling.
This answer is automatically generated
The FJ183-A I received does not flash green after the initial set up.
The ecoey FJ183-A may not flash green after the initial setup because it is not receiving power. The green indicator flashes every 40 seconds to show power status. If it does not flash, the sealed-in battery may be depleted or the unit may be faulty.
This answer is automatically generated
My FJ183-A is not blinking green after set up. When I touch the test button it turns red and beeps. Green light blinks 20 times and stops and doesn’t blink at all anymore
If the Ecoey FJ183-A is not blinking green after setup and only blinks red when the test button is pressed, it means the device may not be receiving power. The green indicator should flash every 40 seconds to show normal operation. No green flash suggests a power issue or battery failure.
This answer is automatically generated
