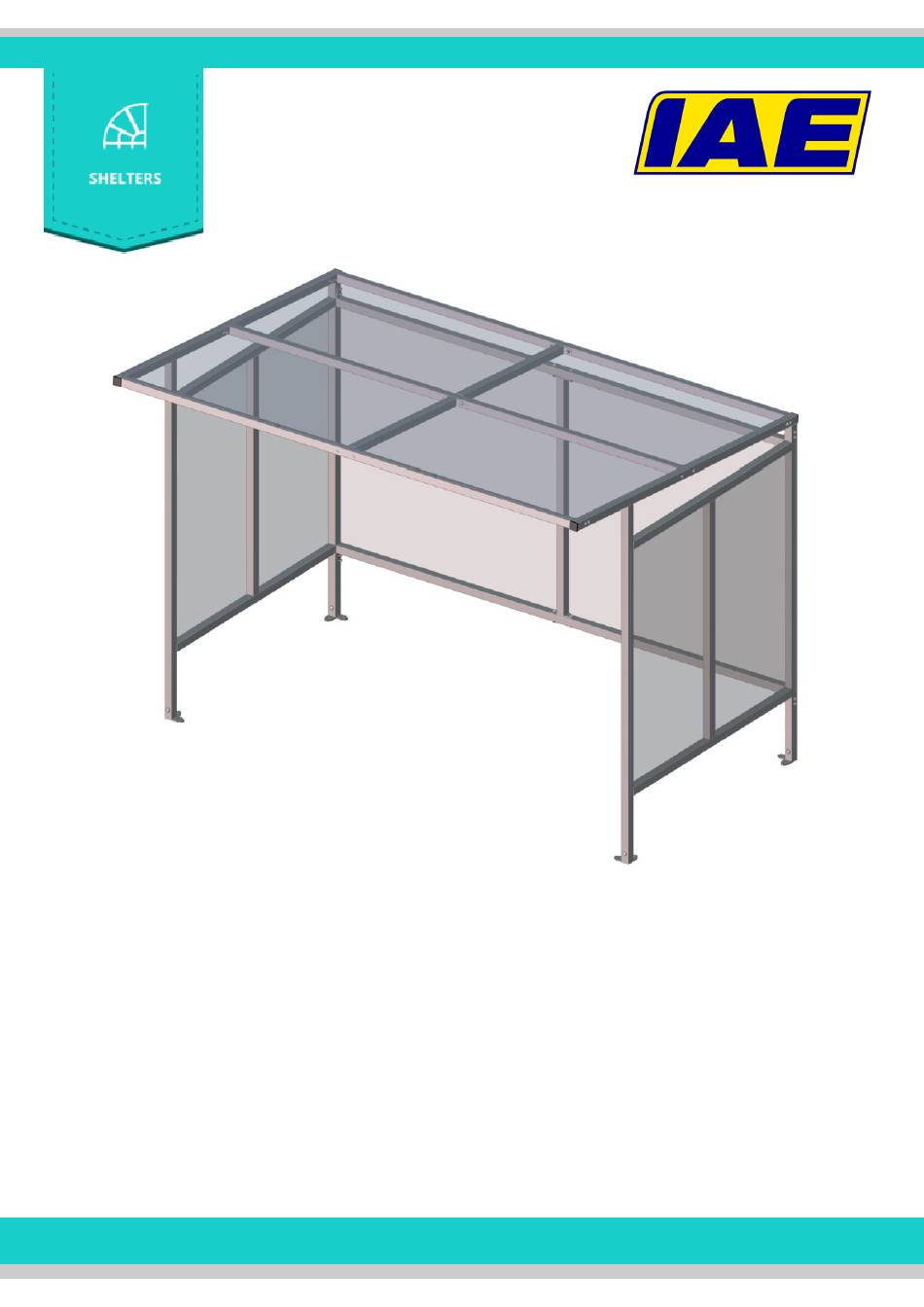

FLAT ROOF
SMOKING SHELTER
ASSEMBLY & MAINTENANCE
MANUAL
-22 QUEENS SQUARE, HODDLESDEN, DARWEN, LANCASHIRE. BB3 3NQ
MOSSFIELD ROAD, ADDERLEY GREEN, STOKE ON TRENT, STAFFORDSHIRE. ST3 5BW
Tel: + 44 (0)1254 703212 Fax: +44 (0)1254 707407 WEB: www.multihog.co.uk
TEL: 01782 339320 FAX:01782 339321 WEB: www.iae.co.uk
BF J000 0007 59
V1.2
SEP 2015
Advertisement
Related Manuals for IAE FLAT ROOF SMOKING SHELTER
Summary of Contents for IAE FLAT ROOF SMOKING SHELTER
- Page 1 -22 QUEENS SQUARE, HODDLESDEN, DARWEN, LANCASHIRE. BB3 3NQ MOSSFIELD ROAD, ADDERLEY GREEN, STOKE ON TRENT, STAFFORDSHIRE. ST3 5BW Tel: + 44 (0)1254 703212 Fax: +44 (0)1254 707407 WEB: www.multihog.co.uk TEL: 01782 339320 FAX:01782 339321 WEB: www.iae.co.uk BF J000 0007 59 V1.2...
-
Page 2: General Dimensions
Safety Stages of the installation may require the use of personal protection equipment. When working at heights refer to HSE guidance. Assembly will require at least two people. General Dimensions 3 x 2m Shelter Fig 1 2 x 1.5m Shelter Fig 2... - Page 3 Ground Fixing Detail It is the responsibility of the installer to ensure that the foundations are suitable for the ground conditions. The base plates supplied with the flat roof smoking shelter are drilled with Ø14.5mm holes. Fig 3 The installer should ensure that the ground ...
-
Page 4: Frame Assembly
The sequence of images is not representative of assembly order, use as a Frame Assembly guide for bolt selection only. Sit the support feet into the bottom of the shelter end frame sections. Do not fix the feet to the frame at this point. Fig 6 Starting from the bottom, bolt the 5no horizontal rails in place between the end... - Page 5 Frame Assembly Fit the mid bracing to the roof frame. Use M10 x 70mm socket dome head screws to bolt to the front and rear rails. Use M10 x 80mm socket button head screws to bolt through the centre purlin. Fig 9 Fit plastic caps to the top four corners.
-
Page 6: Front Panel Installation
The front panel (V200 2627 99) is Front Panel Installation supplied as an optional extra. Fit the front panel to the top rail at the front of the shelter using 4no M10 x 70 socket dome head screws. Fig 13 Note that the top of the front panel is cut at an angle to allow for the slope of the roof. - Page 7 Plastic Installation Before fitting the sheet, IAE advise that the mid purlins are pre drilled using a drill screw. Drill until it starts to thread then remove and clean to remove all swarf. · Pre drill ø10mm holes in sheet first to match purlins.
- Page 8 Exploded Detail - 2000mm x 1500mm Full Sides Fig 18 Bill Of Materials...
- Page 9 Exploded Detail - 2000mm x 1500mm Half Sides Fig 19 Bill Of Materials...
- Page 10 Exploded Detail - 3000mm x 2000mm Full Sides Fig 20 Bill Of Materials...
- Page 11 Exploded Detail - 3000mm x 2000mm Half Sides Fig 21 Bill Of Materials...
-
Page 12: Maintenance
Cracked or severely damaged panels should be removed and replaced. NOTE: IAE do not supply ground fixings IMPORTANT Only use genuine IAE service parts when servicing IAE equipment ® MOSSFIELD ROAD, ADDERLEY GREEN, STOKE ON TRENT, STAFFORDSHIRE. ST3 5BW TEL: +44 (0)1782 339320 FAX: +44 (0)1782 339321 WEB: www.iae.co.uk...
