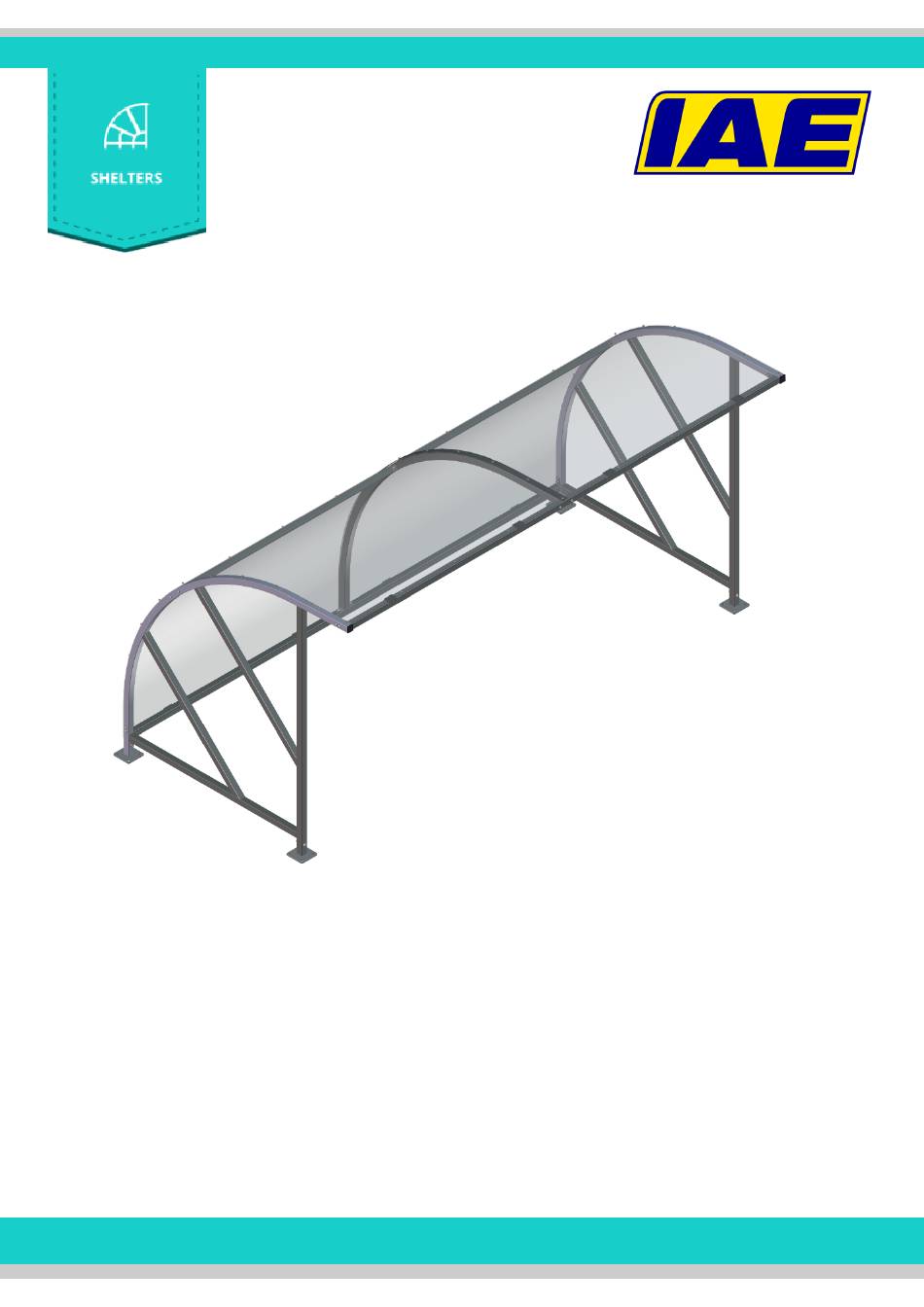

CIRCONOMY
ASSEMBLY & MAINTENANCE
MANUAL
-22 QUEENS SQUARE, HODDLESDEN, DARWEN, LANCASHIRE. BB3 3NQ
MOSSFIELD ROAD, ADDERLEY GREEN, STOKE ON TRENT, STAFFORDSHIRE. ST3 5BW
Tel: + 44 (0)1254 703212 Fax: +44 (0)1254 707407 WEB: www.multihog.co.uk
TEL: 01782 339320 FAX:01782 339321 WEB: www.iae.co.uk
BF J000 0007 05
V1.2
SEP 2015
Advertisement
Table of Contents
Related Manuals for IAE CIRCONOMY
Summary of Contents for IAE CIRCONOMY
- Page 1 -22 QUEENS SQUARE, HODDLESDEN, DARWEN, LANCASHIRE. BB3 3NQ MOSSFIELD ROAD, ADDERLEY GREEN, STOKE ON TRENT, STAFFORDSHIRE. ST3 5BW Tel: + 44 (0)1254 703212 Fax: +44 (0)1254 707407 WEB: www.multihog.co.uk TEL: 01782 339320 FAX:01782 339321 WEB: www.iae.co.uk BF J000 0007 05 V1.2...
-
Page 2: General Dimensions
Safety Stages of the installation may require the use of personal protection equipment. When working at heights refer to HSE guidance. General Dimensions Fig 1... - Page 3 It is the responsibility of the installer to ensure that the foundations are suitable for the ground conditions. The base plate supplied with the Circonomy shelter is drilled with Ø19 holes. The installer should ensure that the ground fixings ...
-
Page 4: Frame Assembly
The sequence of images is not representative of assembly order, use as a Frame Assembly guide for bolt selection only. The legs are supplied undrilled. Do not drill until frame is built & level. Levelling should be done before sheets are fixed. - Page 5 Frame Assembly Fit the intermediate purlins between the end panels and the centre trimmer. Use M10 x 70mm socket dome head screws to bolt to the end panels. Use M10 x 80mm socket button head screws to bolt through the centre trimmer.
- Page 6 Plastic Installation Before fitting the sheet, IAE advise that the mid purlins are pre drilled using a drill screw. Drill until it starts to thread then remove and clean to remove all swarf. See Fig 11. Make sure to allow a 10mm gap between the two sheets.
- Page 7 Plastic Installation Fit 50x3mm cover strips using 5.5x32 drill screws. When fitting these strips it is important that you work from one end. Apply 19mm wide tape to the strip before fitting. Fig 12...
-
Page 8: Cycle Racks
Cycle Racks Cycle racks are supplied as an optional extra. Installation will vary depending on the option purchased. Ensure sufficient fixings are used to secure the cycle rack to the ground. The holes to bolt the cycle rack to the ground are Ø13.5mm. NOTE: The hoops must be bolted to the rails before the rails are bolted to the ground. -
Page 9: Maintenance
Maintenance Routine visual inspection Cycle storage equipment may be subject to heavy use or vandalism, weekly inspection of this type can be necessary. Examples of frame inspection points are: Cleanliness. Rigidity of cycle hoops. Tightness of all fixings. Signs of corrosion or wear. Missing parts. - Page 10 Exploded Detail Fig 15...
-
Page 11: Bill Of Materials
Bill Of Materials NOTE: IAE do not supply ground fixings IMPORTANT Only use genuine IAE service parts when servicing IAE equipment... - Page 12 For further information contact your Authorised Dealer Dealer Stamp ® MOSSFIELD ROAD, ADDERLEY GREEN, STOKE ON TRENT, STAFFORDSHIRE. ST3 5BW TEL: +44 (0)1782 339320 FAX: +44 (0)1782 339321 WEB: www.iae.co.uk...
