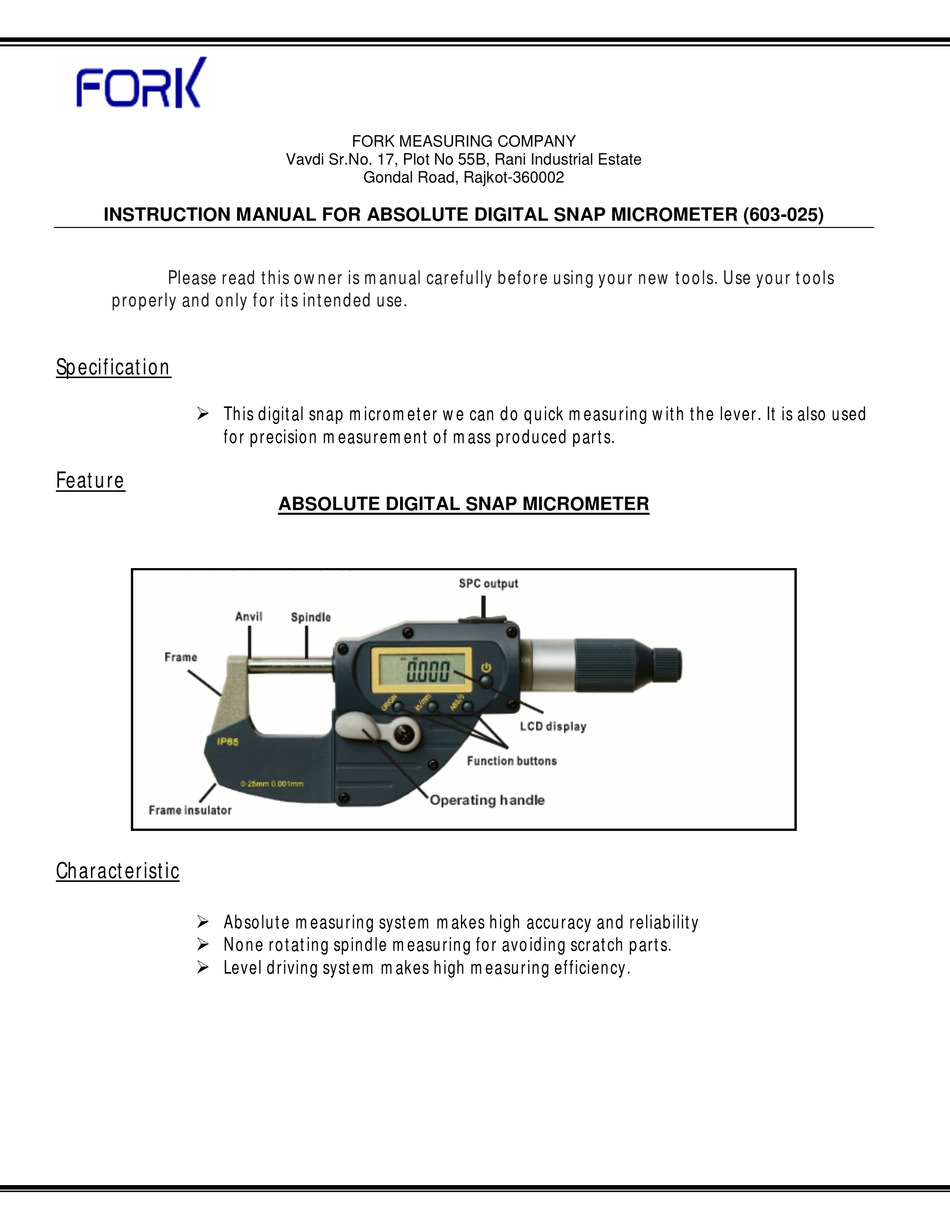

INSTRUCTION MANUAL FOR ABSOLUTE DIGITAL SNAP MICROMETER (603-025)
Please read this owner is manual carefully before using your new tools. Use your tools
properly and only for its intended use.

Specification

 This digital snap micrometer we can do quick measuring with the lever. It is also used
for precision measurement of mass produced parts.

Feature

Characteristic

 Absolute measuring system makes high accuracy and reliability
 None rotating spindle measuring for avoiding scratch parts.
 Level driving system makes high measuring efficiency.
FORK MEASURING COMPANY
Vavdi Sr.No. 17, Plot No 55B, Rani Industrial Estate
Gondal Road, Rajkot-360002
ABSOLUTE DIGITAL SNAP MICROMETER

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 603-025 and is the answer not in the manual?

Questions and answers

Related Manuals for FORK 603-025

Summary of Contents for FORK 603-025

  • Page 1 Vavdi Sr.No. 17, Plot No 55B, Rani Industrial Estate Gondal Road, Rajkot-360002 INSTRUCTION MANUAL FOR ABSOLUTE DIGITAL SNAP MICROMETER (603-025) Please read this owner is manual carefully before using your new tools. Use your tools properly and only for its intended use.
  • Page 2 FORK MEASURING COMPANY Vavdi Sr.No. 17, Plot No 55B, Rani Industrial Estate Gondal Road, Rajkot-360002 INSTRUCTION MANUAL FOR ABSOLUTE DIGITAL SNAP MICROMETER (603-025) Operation  On/Off Key Press and release: Power ON/OFF  ABS/ZERO Press and release: LCD will always display 0.000mm and INC Press and hold: System will return to absolute measuring made.
  • Page 3 FORK MEASURING COMPANY Vavdi Sr.No. 17, Plot No 55B, Rani Industrial Estate Gondal Road, Rajkot-360002 INSTRUCTION MANUAL FOR ABSOLUTE DIGITAL SNAP MICROMETER (603-025) Technical Specification Code Range L.C. 603-025 0-25mm / 0-1” 0.001 mm / 0.00005” 24.2 31.8 Precautions  Do not subject the instrument to blows or shock. Do not drop it or apply excessive force.
  • Page 4 FORK MEASURING COMPANY Vavdi Sr.No. 17, Plot No 55B, Rani Industrial Estate Gondal Road, Rajkot-360002 INSTRUCTION MANUAL FOR ABSOLUTE DIGITAL SNAP MICROMETER (603-025) Torbuleshooting Problem(s) Cause(s) Solution(s) 1.Dirty measuring faces 1.Clean measuring faces Measure data incorreted 2.Zero is incorrect 2.inspect and reset zero 1.Battery position is incorrect...
