FORK 301-012 Instruction Manual

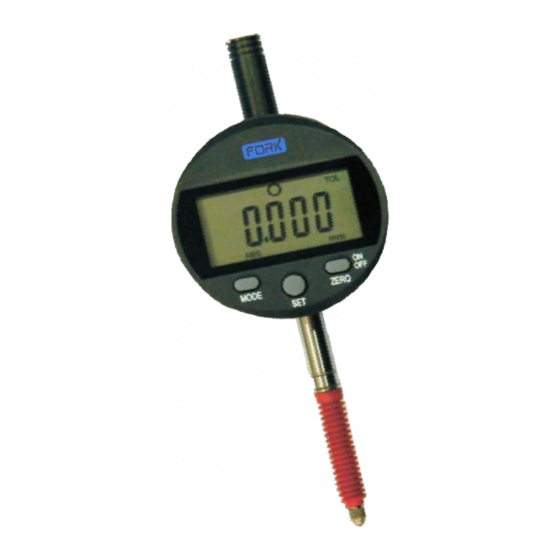

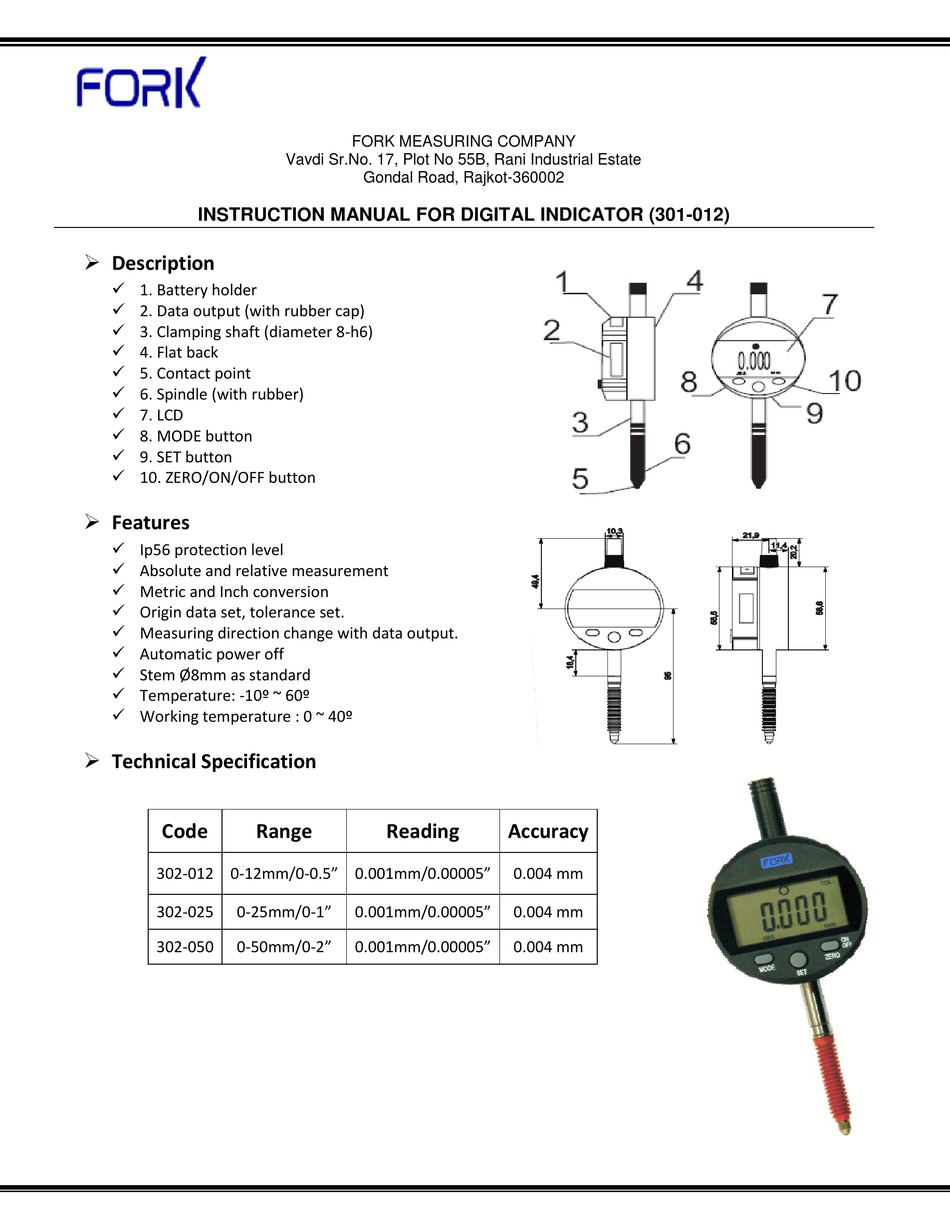

INSTRUCTION MANUAL FOR DIGITAL INDICATOR (301-012)
 Description
 1. Battery holder
 2. Data output (with rubber cap)
 3. Clamping shaft (diameter 8-h6)
 4. Flat back
 5. Contact point
 6. Spindle (with rubber)
 7. LCD
 8. MODE button
 9. SET button
 10. ZERO/ON/OFF button
 Features
 Ip56 protection level
 Absolute and relative measurement
 Metric and Inch conversion
 Origin data set, tolerance set.
 Measuring direction change with data output.
 Automatic power off
 Stem Ø8mm as standard
 Temperature: -10º ~ 60º
 Working temperature : 0 ~ 40º
 Technical Specification
Code Range
302-012 0-12mm/0-0.5" 0.001mm/0.00005"
302-025 0-25mm/0-1"
302-050 0-50mm/0-2"
FORK MEASURING COMPANY
Vavdi Sr.No. 17, Plot No 55B, Rani Industrial Estate
Gondal Road, Rajkot-360002
Reading
0.001mm/0.00005"
0.001mm/0.00005"
Accuracy
0.004 mm
0.004 mm
0.004 mm
