Volair Sim VS-MS Assembly Instructions Manual

Triple display stand

Advertisement

Quick Links

www.volairsim.com
Triple Display Stand Assembly Instructions
P/N: VS-MS
Version 1.1
© 2017 BARELLE GROUP LLC. ALL RIGHTS RESERVED.

Advertisement

loading
Need help?

Need help?

Do you have a question about the VS-MS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Volair Sim VS-MS

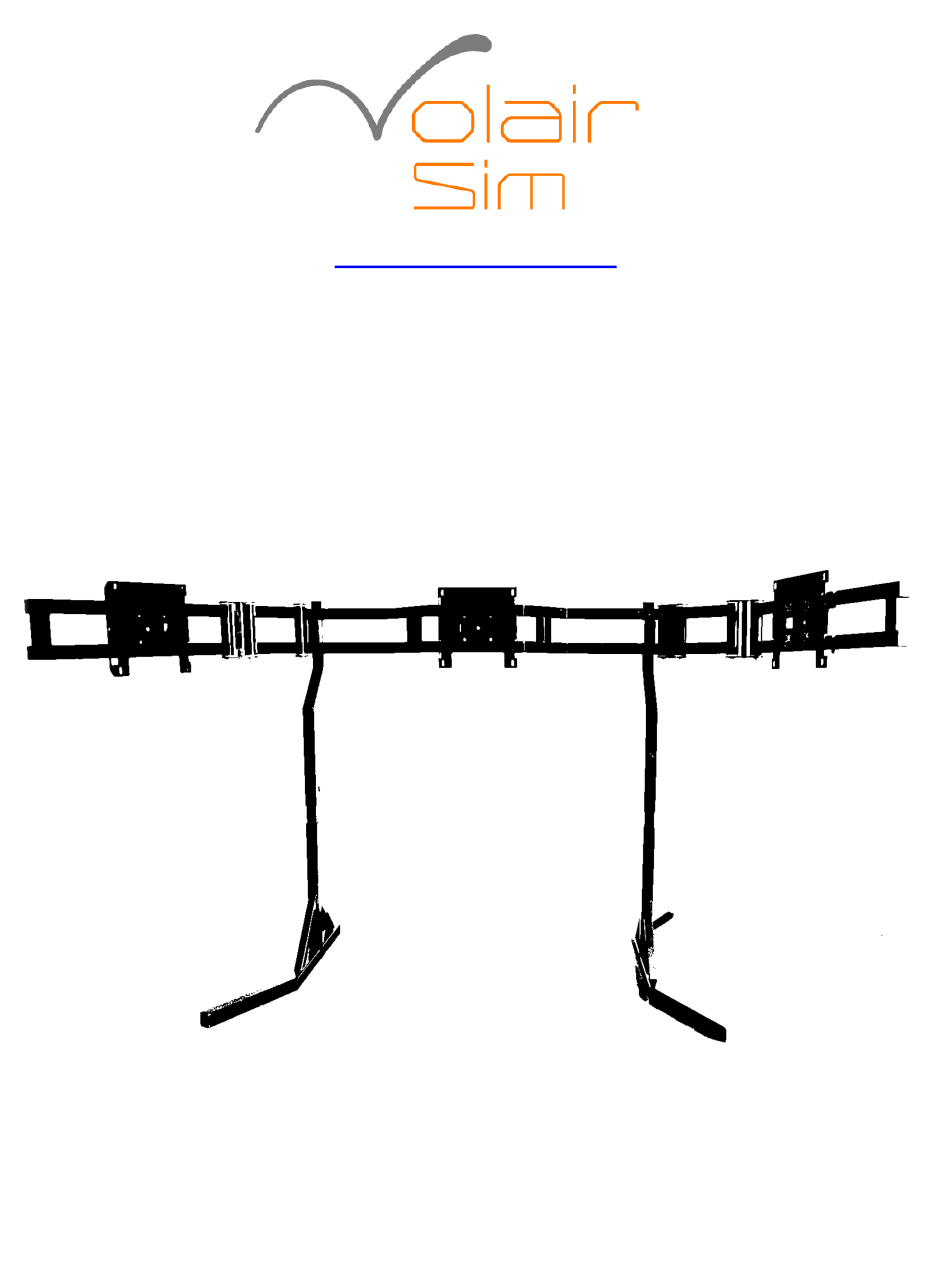

  • Page 1 Triple Display Stand Assembly Instructions P/N: VS-MS Version 1.1 © 2017 BARELLE GROUP LLC. ALL RIGHTS RESERVED.
  • Page 2 400mmx400mm (using the included adapters) VOLAIR SIM TRIPLE DISPLAY STAND SPECIFICATIONS Your Volair Sim Triple Display Stand is shipped in one large box. We recommend that you find an open space to carefully unpack and inventory everything before beginning the assembly process.
  • Page 3 PART NAME PHOTO COMMENTS M8*20mm Socket Cap USED TO SECURE HORIZONTAL SUPPORT TO THE Machine Screw VERTICAL POSTS - PACKED IN HARDWARE BAG M8*20mm Machine Screw PACKED IN HARDWARE BAG with Knob M6*12mm Button Head INCLUDES 12 EXTRA SCREWS FOR ATTACHING 3 Machine Screw TVs - PACKED IN HARDWARE BAG M6*12mm Button Head...
  • Page 4 STEP1: Begin assembly by attaching left and right leg extensions to stand base. Use four M8x20mm Machine Screws with Knobs (#2 in TABLE 1) to secure the four leg extensions to base as shown below in FIGURE 1 below. HINT: The legs extensions can be positioned facing inward (for minimizing footprint) or outward (for maximizing stability when large TVs are used).
  • Page 5 STEP 2: Attach the horizontal support to the left and right legs using four M8x20mm Socket Cap Machine Screws (#1 in TABLE 1) as shown on FIGURE 2 below. Use the Hex Key (#10 in TABLE 1) to tighten the four cap screws. FIGURE 2 STEP 3: Slide the completed assembly from STEP 3 into the left and right base legs (a helper here is desired).
  • Page 6 FIGURE 3 Page 6 of 9...
  • Page 7 STEP 4: Attach left and right arms to the center section by loosening the pre-installed M8 Cap Nuts (#7 in TABLE 1) and M8 Washers (#8 in TABLE 1), removing the threaded silver rod, and attaching each arm to the center section as shown in FIGURE 4 below: FIGURE 4 Page 7 of 9...
  • Page 8 STEP 5: Attach left, center, and right display mounting plates to the backs of your TVs or monitors using twelve (four per TV) M6x12mm Button Head Machine Screws (#3 in TABLE 1) and the M6 hex key (#9 in TABLE 1). Use appropriate VESA bolt pattern suitable for your TV or monitor. Do not tighten the screws all the way since you will have to align them in STEP 6.
  • Page 9 HINT: It is helpful to have a second person assist with the alignment process. FIGURE 6 Finally, check for stability of the display stand with the TVs/monitors installed. Adjust the in/out positioning of the base leg extensions as necessary. Enjoy your Volair Sim Triple Display Stand! Page 9 of 9...
