Summary of Contents for Picberm PB2210

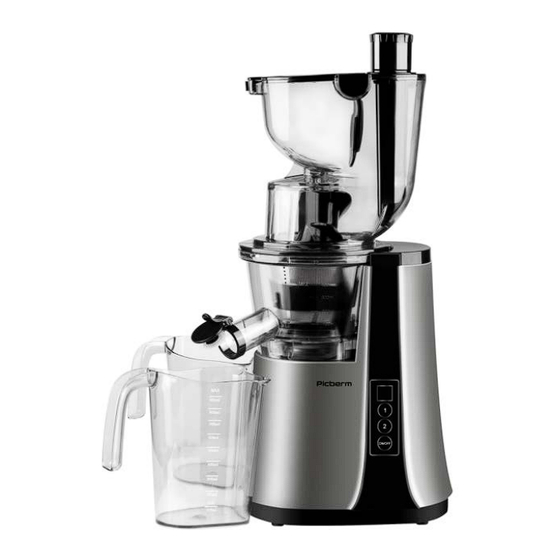

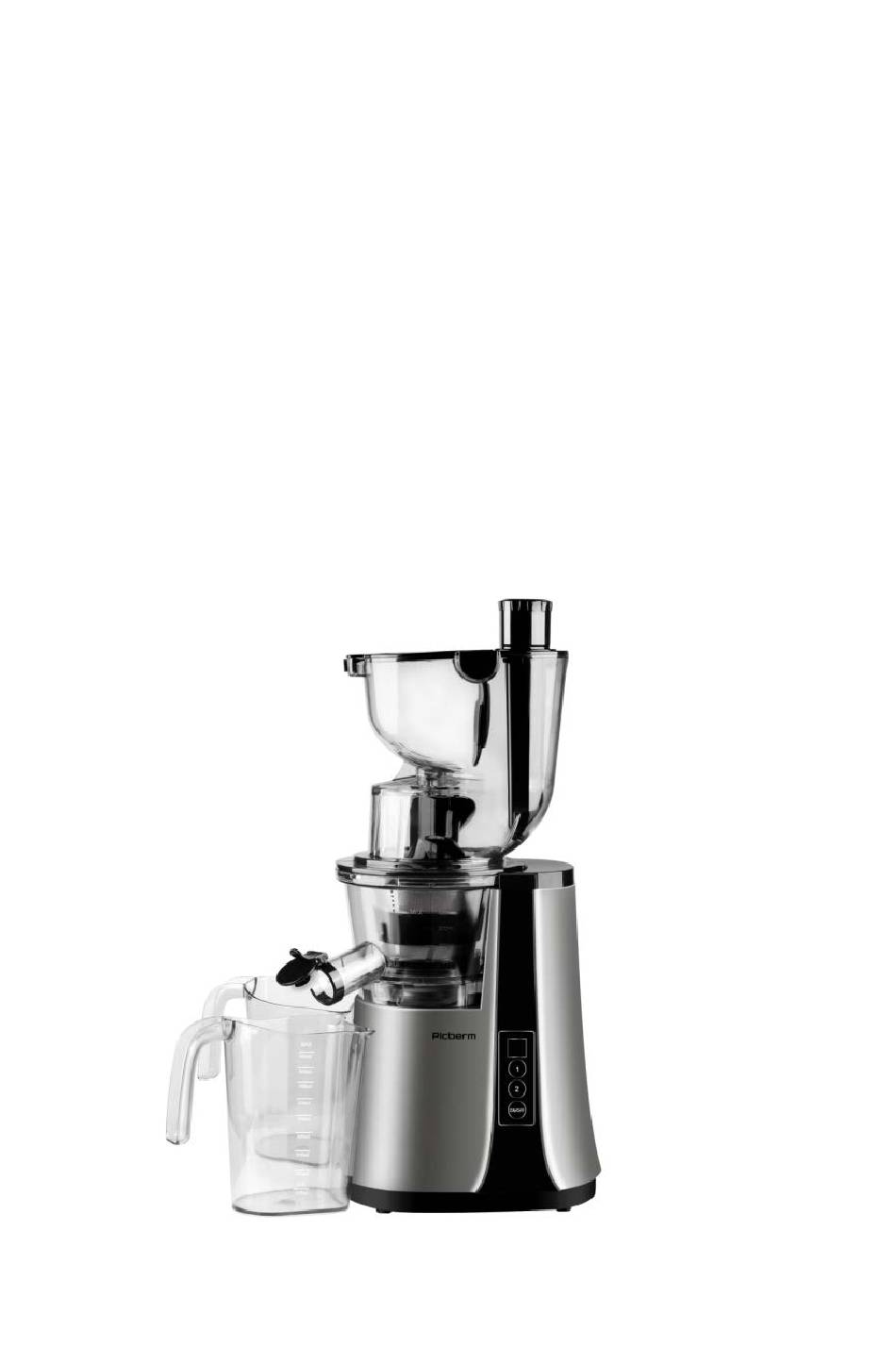

- Page 1 User Manual Picberm Masticating Juicer PB2210...
-
Page 2: Table Of Contents
Contents Chapter I. Precautions for Safe Operation....1 Chapter II. Parts and Functions.........4 Chapter III. Method of Operation......6 Chapter IV. How to Assemble........7 Chapter V. Tips for ingredients Selection....10 Chapter VI. Maintenance and Preservation....12 Chapter VII. Trouble Shooting.........13 Chapter VIII. Applicable Standard......15... -
Page 3: Chapter I. Precautions For Safe Operation
Chapter I. Precautions for Safe Operation Read the instructions below carefully before use. Before using the Juicer, please check the consistency between actual voltage with its rated voltage (110-130V～/60Hz). Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. - Page 4 Before power on, please ensure that detachable parts, such as juicing sieve and top cap, are put in place and fully fastened; if juicing sieve is damaged, please stop using the Juicer. During operating, do not put hand or sharp object into feeding inlet. It is strictly prohibited to use any other thing as a pushing rod.
- Page 5 Non-professionals are not allowed to randomly remove its detachable parts as it may cause electric shock; if the Juicer fails, please send it to a specified maintenance station for service or contact us. Upon completion, please disconnect the power cord. If damaged, the power cord must be replaced by a professional from the manufacturer, maintenance department or a similar department to prevent any danger.
-
Page 6: Chapter Ii. Parts And Functions
Chapter II. Parts and Functions Name of Function Introduction Parts Pomace Contain and gather pomace separated from container juicing body. Juice Contain and gather juice separated from juicing container body. Control working conditions of this product, including starting up, powering off, reverse Control panel rotation.( it reversely rotates a while only after turned off), hard fruits and vegetables, soft fruits... - Page 7 It is used to connect power supply and provide Power cord working power. This is the major part of this machine and Main body contains the motor that is the power producer and provides working power. Store ingredientss and produce juice and pomace Juicing body through juice outlet and pomace outlet.
-
Page 8: Chapter Iii. Method Of Operation
Chapter III. Method of Operation Before using this product for the first time, please thoroughly wash parts that touch with ingredientss. Instruction of buttons operation : “On/off” button: starting up, power off and reverse rotation.( it reversely rotates a while only after turned off) “1”... -
Page 9: Chapter Iv. How To Assemble
Chapter IV. How to Assemble The Juicer is designed with a double safety system and can start working only after all parts are installed correctly. Please install and use the Juicer as follows: Groove on the juicing body is aligned with convexity on the Main body. - Page 10 “ ” on the Top cap is aligned with “ ” on the juicing body, spin the top cap along with the juicing body. When a sound is heard, this indicates a good snap-fit. Contrary procedures are carried out for detaching the top cap from the juicing body.
- Page 11 Press “on/off” button on the control panel, then select “1” or “2” button. The juicer will continuously work for 20 minutes. Put ingredientss into the feeding inlet on the top cap and push them with the pushing rod. Feed larger ingredientss through the larger feeding inlet (e.g., apples/snow pear, etc.), and feed others especially the long one through the smaller feeding inlet (e.g.,...
-
Page 12: Chapter V. Tips For Ingredients Selection
Chapter V. Tips for ingredientss Selection 1. Use fresh fruits and vegetables, since they contain more fluid. Specific preferred fruits are the following: pineapple, beetroot, celery stick, apple, cucumber, carrot, spinach, melons, tomato, mandarin orange, grape, etc. 2. It is unnecessary to remove thin peels and skins. Only thick peels (e.g., those of oranges, pineapples or beetroots) need to be removed. - Page 13 Vitamins C, B, B6 and E, folic Brussels Sprouts 100 gram = 110 kJ(26 kcal) acidand dietary fiber Vitamin C, folic acid, potassium,Vitamin B6 and Cabbage 100 gram = 110 kJ(26 kcal) dietary fiber Vitamins A, C and B6, and 100 gram=110 kJ (26 kcal) Carrot dietary fiber...
-
Page 14: Chapter Vi. Maintenance And Preservation
Pineapple Vitamin C 150 gram = 245 kJ(59 kcal) Vitamin C, iron, potassium 125gram = 130kJ(31 kcal） Raspberry and magnesium Chapter VI. Maintenance and Preservation 1. Put the Juicer in a dry and ventilated place for long-term storage to prevent the motor from being affected by damp air, which threatens appliance safety. -
Page 15: Chapter Vii. Trouble Shooting
All parts ( ① according to the contrary direction to installation. Juice outlet lid can be freely detached or installed. If there are pomaces stay in pomace outlet, withdraw the sealing gum from the pomace outlet groove and rinse it with water, then insert it back to the groove Chapter VII. - Page 16 Motor gives out If the smell remains disguising smell after using for several Normal phenomenon during the first times, please contact us few times of use via email. 1. Check if the voltage 1. The voltage is below is too low. level.
-
Page 17: Chapter Viii. Applicable Standard
The above are analyses and resolutions of common faults. As for other faults, please contact us via service email.Be sure not to take apart or repair by yourself. Chapter VIII. Applicable Standard Model No. PB2210 Rated Voltage 110-130V~ Rated Frequency 60Hz... - Page 18 For a better household appliance For more information Please visit our website at www.picbermonline.com Or scan QR code Made in China Service email: service1@picbermonline.com...
