Picberm PB2314 User Manual

Centrifugal juicer
Hide thumbs

Advertisement

Quick Links

Download this manual
User Manual
of

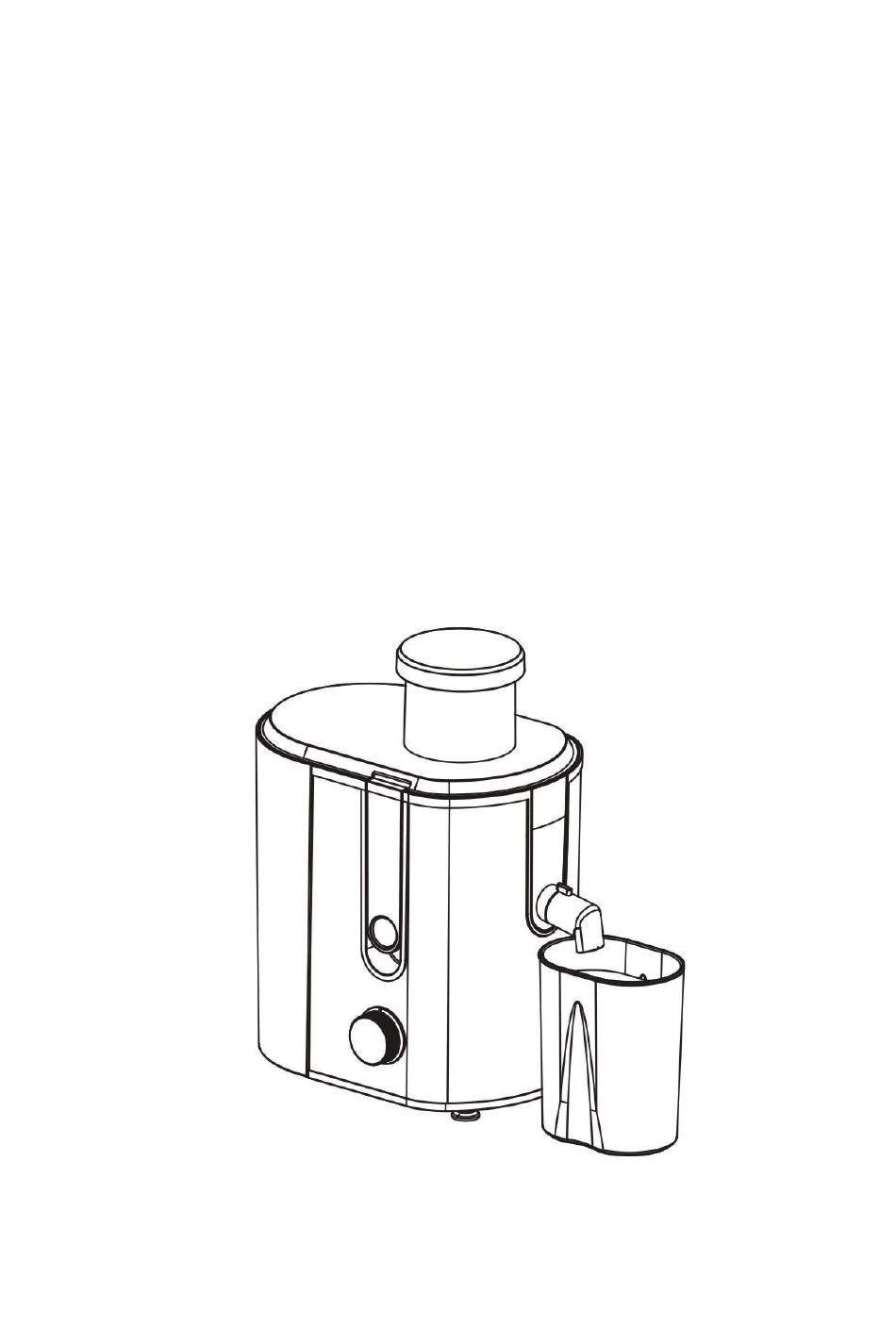

Picberm Centrifugal Juicer
PB2314

Advertisement

loading
Need help?

Need help?

Do you have a question about the PB2314 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Picberm PB2314

Summary of Contents for Picberm PB2314

  • Page 1 User Manual Picberm Centrifugal Juicer PB2314...

  • Page 2: Table Of Contents

    Contents Chapter I. Precautions for Safe Operation....1 Chapter II. Parts and Functions........ 4 Chapter III. Method of Operation......5 Chapter IV. How to Assemble........6 Chapter V. Tips for Ingredients Selection....9 Chapter VI. Maintenance and Preservation....Chapter VII. Trouble Shooting......... Chapter VIII.

  • Page 3: Chapter I. Precautions For Safe Operation

    Chapter I. Precautions for Safe Operation Read the instructions below carefully before use.  Before using the juicer, please check whether the consistency is between actual voltage with its rated voltage (110-130V～/60Hz).  Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
  • Page 4 - by clients in hotels, motels and other residential-type environments; - breakfast-type environments.  Before power on, please ensure that the detachable parts, such as the juicing sieve and transparent cover are all in place and fully fastened; if juicing sieve is damaged, please stop using the machine. ...
  • Page 5  Please operate it in strict accordance with rated working time: time of continuous working shall not exceed 1 min; each cycle must be stopped for 2 mins after completing functions; it must be stopped for 15-20 mins after continuously working 3 cycles, and then restarted after motor has cooled.

  • Page 6: Chapter Ii. Parts And Functions

    Chapter II. Parts and Functions Part Name Description and Function When putting the ingredients in it, tenderly pushes and presses the ingredients to ensure full Pusher contact with juicing sieve so as to improve juicing efficiency. Connects with the body. Exists as a major part of Transparent the juicing process and serves as a safety cover...

  • Page 7: Chapter Iii. Method Of Operation

    Middle ring Gets and exports juice separated by juicing sieve. Controls connection between transparent cover Handle and the body. Pomace Gets and collects pomace separated by juicing container sieve. Major part of the juicer, with internal motor and Main body other parts.

  • Page 8: Chapter Iv. How To Assemble

    Chapter IV. How to Assemble The juicer is designed with a double safety system and can start working only after all parts are installed correctly. Please install and use the juicer as follows: 1. Turn the body's switch into position “0”...
  • Page 9 6. Put the juice container under the juice outlet. 7. Connect power source and prepare for startup. The working time shall be ≤ 1 min. (Before connecting power, please ensure the switch is off.) 8. Clean, peel (shell) and pit fruits and vegetables, then cut them into pieces of suitable size for feed inlet.
  • Page 10 10. Put cut fruits and vegetables into feed inlet on transparent cover, and push it gently with the pusher. Do not push or press the fruits and vegetables with too much pressure on the pusher, since this would affect the quality of the end result. a.

  • Page 11: Chapter V. Tips For Ingredients Selection

    Chapter V. Tips for Ingredients Selection 1. Use fresh fruits and vegetables, since they contain more fluid. Specific preferred fruits are the following: pineapple, beetroot, celery stick, apple, cucumber, carrot, spinach, melons, tomato, mandarin orange, grape, etc.. 2. It is unnecessary to remove thin peels and skins. Only thick peels (e.g., those of oranges, pineapples or beetroots) need to be removed.
  • Page 12 The typical nutrient ingredient in fruits / vegetables are shown below: kcal Fruit/Vegetable Vitamin/Mineral Apple Vitamin C 200 gram = 150 kJ (36 kcal) 30 gram = 85 kJ (20 kcal) Apricot Dietary fiber and potassium Folic acid, dietary fiber, Beet 160 gram = 190 kJ (45 kcal) Vitamin C and potassium...
  • Page 13 Vitamins C and B6, and Grape 125 gram = 355 kJ (85 kcal) potassium Carambola Vitamin C and potassium 100 gram = 100 kJ (24 kcal) Vitamins C and A, folic acid 200 gram = 210 kJ (50 kcal) Muskmelon and dietary fiber Vitamins C and B3, potassium Nectarine...

  • Page 14: Chapter Vi. Maintenance And Preservation

    Chapter VI. Maintenance and Preservation 1. Put this juicer in a dry and ventilated place for long-term storage to prevent the motor from being affected by damp air, which threatens appliance safety. 2. It is easy and convenient to clean the juicer immediately after use. It is strictly prohibited to directly put the body in water or flush it with water.
  • Page 15 c. Take the juicing sieve and the middle ring down: 1. Grab the juice outlet and the edge of the middle ring that closer to the pomace container with both hands and lift it up. 2. The juicing sieve will automatically leave the motor wheel.

  • Page 16: Chapter Vii. Trouble Shooting

    Chapter VII. Trouble Shooting Common failure Cause analysis Solution 1. Put the middle ring in After power 1. Middle ring was not place. installed in place. connecting, switch it on and 2. Put the transparent 2. Transparent cover was cover in place. the juicer doesn't not installed in place.
  • Page 17 1. The voltage is below 1. Check if the voltage level. is too low. 2. Ingredients are 2. Disconnect power excessive. source and take redundant ingredients 3. Exert excessive Stop during out. pressure to press the operation pusher. 3. Lightly press the pusher.
  • Page 18 1. Put the juicing 1. Juicing sieve was not sieve in place. installed in an even position. 2. Put the juicer Abnormal smoothly and steadily 2. The juicier was not in place or put the vibration or loud placed smoothly and foot pad in place.

  • Page 19: Chapter Viii. Applicable Standard

    Chapter VIII. Applicable Standard Model No. PB2314 Rated Voltage 110 - 130 V~ 60 Hz Rated Frequency Rated Power 600 W Continuous Operating Time ≤1 minute Interval Time ≥2 minutes...
  • Page 20 For a better household appliance For more information Please visit our website at www.picbermonline.com Or scan QR code Made in China Service email: service1@picbermonline.com...
