Summary of Contents for cocopar J173FH10F

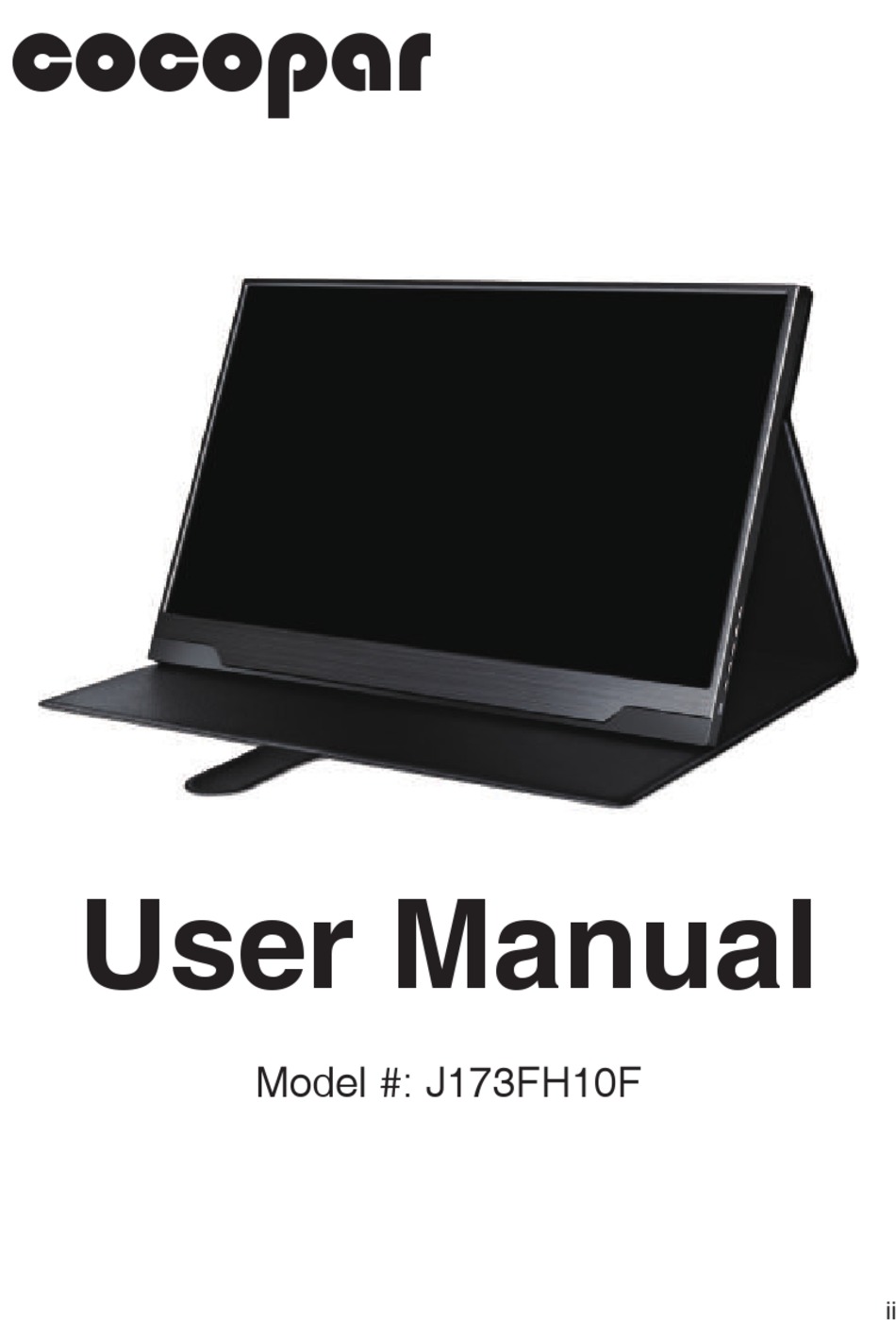

- Page 1 User Manual Model #: J173FH10F...
-
Page 2: Table Of Contents
Contents 1 About Your Monitor ......1 Monitor Specifications ............1 Package Contents .............. 2 Identifying Parts and Controls ..........3 2 Using the Monitor ......... 4 Identify the ports of your device .......... 4 Connecting your Monitor ............ 5 Using the On-Screen Display(OSD) Menu ...... -
Page 3: About Your Monitor
01 About Your Monitor Monitor Specifications Model Number J173FH10F Screen Type 17.3 inch 381*214 mm Screen Size 1920 x 1080 Resolution 16 : 9 Aspect Ratio 100% sRGB Color Gamut 16.78 Million colors Color Depth 9300K Color Temperature Brightness 350 cd/m... -
Page 4: Package Contents
Package Contents Please contact us if anything is missing or damaged. (service@cocopar.net) Cocopar Portable Monitor Smart Cover USB Type C to USB Type C Cable For power and video signal transmission. Can be connected to the Type-C port of your device for power and display by single cable. -
Page 5: Identifying Parts And Controls
Identifying Parts and Controls Speaker: For movies, games, etc. Type-C: Power supply, Compatible with PD2.0 protocol, support 5~20V input and reverse charging Speaker Speaker Audio and video signal transmission Mini HDMI: Audio and video signal transmission 3.5mm Audio Jack: Connect speakers, headphones, etc. Power: Turn ON / OFF the monitor Open volume menu, turn up... -
Page 6: Using The Monitor
Mini DisplayPort (Mini DP) e.g. Microsoft Surface For video signal transmission: Connect to monitor by (Mini) DP to HDMI adapter & HDMI cable. Please contact us to get adapter for free.(service@cocopar.net) USB Type-A For power output and data transmission. Cannot be used to connect to the monitor for video signal transmission, this port can only be used to power on the monitor. -
Page 7: Connecting Your Monitor
Connecting your Monitor Laptop/PC Connection 1) Laptop/PC with Type-C port USB-C Cable Laptop Portable Monitor Power & Display Note: Please use the wall charger to power on the monitor to avoid black or flashing screen when power supply is not enough. USB-C Cable USB-C Cable Laptop... - Page 8 Laptop Portable Monitor HDMI Cable Note: (Mini)DP to HDMI adapter is not included in package, please contact us to get the adapter free.(service@cocopar.net) PS4/Xbox Connection HDMI Cable Portable Monitor USB-A to USB-C Note: Please use the wall charger to power on the monitor to avoid black or flashing screen when power supply is not enough.
- Page 9 ·Some phones like Google Pixel do not support video output. USB-C Cable HDMI Cable iPhone Portable Monitor Lightning to HDMI Adapter Note: A Lightning to HDMI adapter is required for iPhone. Please contact us to get the adapter for free.(service@cocopar.net) Using the Monitor 7...
- Page 10 iPhone Connection with Lightning to HDMI adapter Note: Please also plug in a wall charger to the lightning port of the adapter to power on the adapter and make it work. 8 Using the Monitor...
-
Page 11: Using The On-Screen Display(Osd) Menu
Using the On-Screen Display(OSD) Menu ·Press the Menu button to open and display the OSD menu ·Press the “+” and “-” button to toggle between options. ·Press the Menu button to enter the slide bar of options. ·Press the Exit button to return to previous menu without saving current settings or Press Menu... - Page 12 Color Color 9300K Color Temp Saturation Low Blue Light FreeSync ·Color Temp: Adjust the tint of screen to 9300k, 6500k, sRGB, User. Adjust the hue of the image (Range: 0~10) ·HUE: Adjust the saturation of the image (Range: 0~10) ·Saturation: ·Low Blue Light: Decreasing the blue light emitted from the display reduces the blue light exposure to your eyes and create a less...
- Page 13 Other Other English Language Auto Reset USB1 Save Brightness English, German, French, Janpanese, Korean, etc. ·Language: Set the HDR Mode to AUTO / OFF / 2084(ON). ·HDR: Return all the settings to the default factory settings. ·Reset: When HDMI port is used for signal transmission, select ·USB: USB1 / USB2 port as data transmission port with your laptop.
- Page 14 Input Input Auto Select Type-C1 Type-C2 HDMI ·Auto Select: Monitor will automatically select the source input from Type-C1, Type-C2 and HDMI port which has signal input. Display the signal from Type-C1 port. ·Type-C1: Display the signal from Type-C2 port. ·Type-C2: Display the signal from HDMI port.
-
Page 15: Using The Duplicate/Extend/Second Screen
Using the Duplicate/Extend/Second Screen MacOS ·Choose Apple menu > System Preferences, click Displays. ·Click the Arrangement tab. ·Make sure that the Mirror Displays checkbox isn’t selected for Extend Mode or is selected for Mirror Mode. Windows ·Right click on the desktop and select “Display settings” ·Scroll down to the “Multiple Displays”... -
Page 16: Using The Portrait/Landscape Mode
Windows key + P keyboard shortcut Using the Portrait/Landscape Mode 14 Using the Monitor... - Page 17 Mac OS ·Choose Apple menu > System Preferences. ·Hold down the Cmd+Option(Alt) keys and click on “Displays” ·Look for the newly visible ‘Rotation’ drop down menu. Windows ·Right click on the desktop and select Display settings ·Scroll down to the “Display orientation” option. Selecting “Landscape”...
-
Page 18: Troubleshooting
03 Troubleshooting Please feel free to contact us for any problem. +1-888-666-0082 (24/7 Toll-Free) service@cocopar.net Black screen or No signal Please use the original accessories we provide (cables and charger). USB 3.0 A Male to USB Type C cable does not support video signal transmission. - Page 19 For example, the Type-C port of Google phones like Pixel does not support video output. An Android to HDTV cable is required to mirror the screen. Contact us to get the HDTV cable. (service@cocopar.net) Troubleshooting 17...
- Page 20 Please refer to Page 8 and contact us to get the Lightning to HDMI adapter for free. (service@cocopar.net) Why the brightness and contrast cannot be adjusted? The brightness/contrast cannot be adjusted if HDR is turned on or DCR is turned on.
-
Page 21: Support
Thank You Support Phone: +1-888-666-0082 (24/7 Toll-Free) Email: service@cocopar.net (reply within 8 hours) Support 19...
