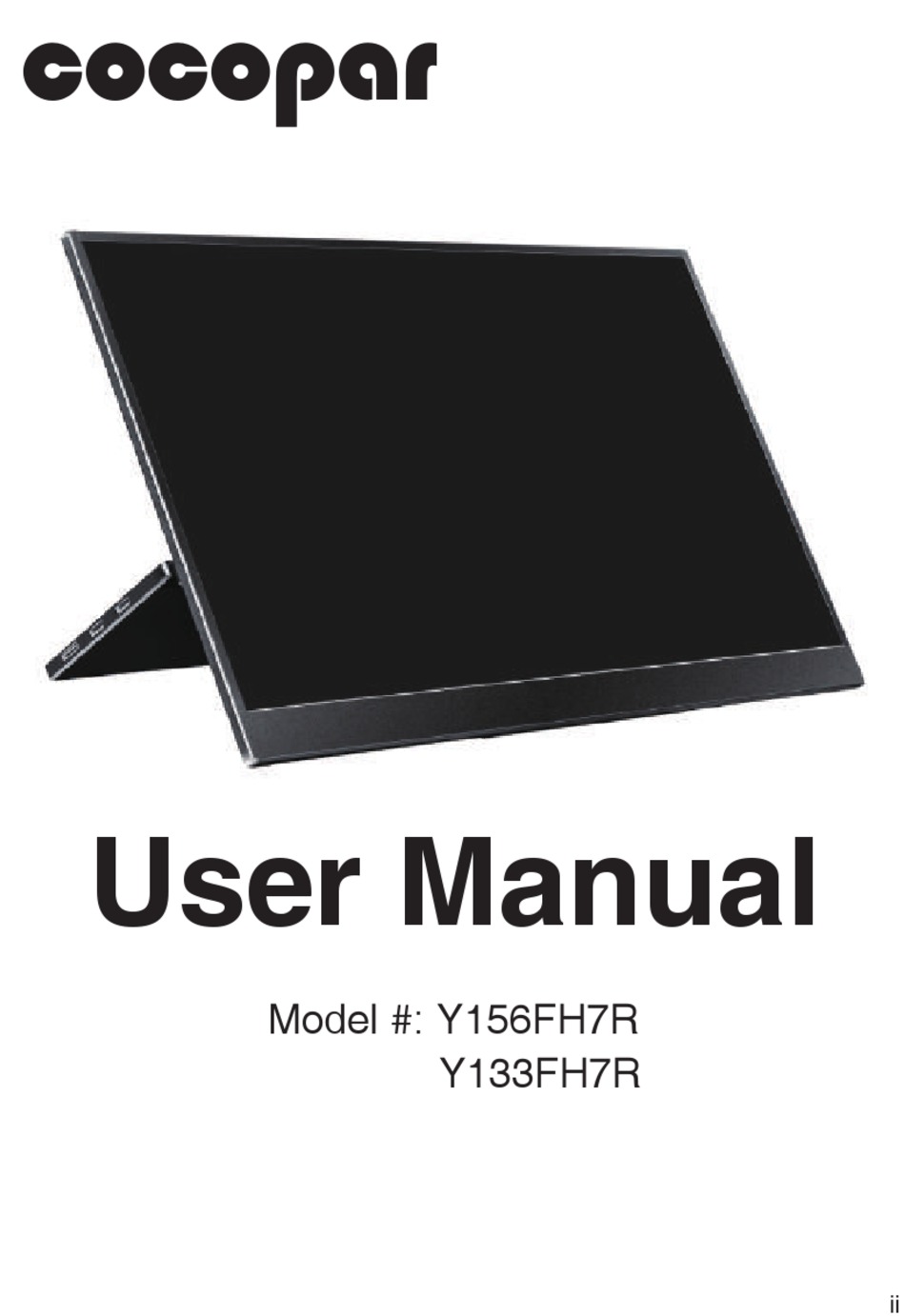

- Page 1 User Manual Model #: Y156FH7R Y133FH7R...
-
Page 2: Table Of Contents
Contents 1 About Your Monitor ......1 Monitor Specifications ............1 Package Contents .............. 2 Setting up the Monitor ............3 Identifying Parts and Controls ..........3 2 Using the Monitor ......... 4 Identify the ports of your device .......... 4 Connecting your Monitor ............ -
Page 3: About Your Monitor
Refresh Rate 60 Hz Net Weight Y133FH7R: 1.4 lbs Y156FH7R: 1.8 lbs Y133FH7R: 12 * 7.6 * 0.23 inch Dimension Y156FH7R: 14 * 8.7 * 0.23 inch HDR Support FreeSync Support Power Consumption Y133FH7R: 5W Y156FH7R: 6W 2 Full-featured Type-C ports, Connectivity Mini HDMI, 3.5mm Audio Jack... -
Page 4: Package Contents
Package Contents Please contact us if anything is missing or damaged. (service@cocopar.net) Cocopar Portable Monitor USB Type C to USB Type C Cable For power and video signal transmission. Can be connected to the Type-C port of your device for power and display by single cable. -
Page 5: Setting Up The Monitor
Setting up the monitor 90° Note: The bracket supports maximum 90° angle Identifying Parts and Controls Audio Jack: Connect speakers, headphones, etc. Menu/+/-: Press to enter the OSD menu Press to confirm the settings Scroll up to open brightness menu. Scroll down to open volume menu. -
Page 6: Using The Monitor
Mini DisplayPort (Mini DP) e.g. Microsoft Surface For video signal transmission: Connect to monitor by (Mini) DP to HDMI adapter & HDMI cable. Please contact us to get adapter for free.(service@cocopar.net) USB Type-A For power output and data transmission. Cannot be used to connect to the monitor for video signal transmission, this port can only be used to power on the monitor. -
Page 7: Connecting Your Monitor
Connecting your Monitor Laptop/PC Connection 1) Laptop/PC with Type-C port USB-C Cable Laptop Portable Monitor Power & Display Note: Please use the wall charger to power on the monitor to avoid black or flashing screen when power supply is not enough. USB-C Cable USB-C to USB-A Laptop... - Page 8 Laptop Portable Monitor HDMI Cable Note: (Mini)DP to HDMI adapter is not included in package, please contact us to get the adapter free.(service@cocopar.net) PS4/Xbox Connection HDMI Cable Portable Monitor USB-A to USB-C Note: Please use the wall charger to power on the monitor to avoid black or flashing screen when power supply is not enough.
- Page 9 HDMI Cable USB-C to USB-A iPhone Portable Monitor Lightning to HDMI Adapter Note: A Lightning to HDMI adapter is required for iPhone. Please contact us to get the adapter for free.(service@cocopar.net) Using the Monitor 7...
- Page 10 iPhone Connection with Lightning to HDMI adapter 8 Using the Monitor...
-
Page 11: Using The On-Screen Display(Osd) Menu
Using the On-Screen Display(OSD) Menu Shortcut Menu Brightness Volume ·Scroll up to open the Brightness Menu. ·Scroll down to open the Volume Menu. Main Menu Menu Brightness/Contrast Brightness Color Settings Contrast Audio Settings Standard Other Settings Input Source Sharpness Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz ·Press the Menu... - Page 12 Brightness/Contract Menu Brightness/Contrast Brightness Color Settings Contrast Audio Settings Standard Other Settings Input Source Sharpness Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz Allows you to adjust the brightness or luminance of ·Brightness: the backlight (Range: 0~100). Adjust the contrast between the objects and background. ·Contrast: (Range: 0~100).
- Page 13 Color Settings Menu Brightness/Contrast Color Temp User Color Settings Audio Settings Saturation Other Settings Low Blue Light Input Source Color Gamut NATIVE Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz ·Color Temp: Adjust the tint of screen to 9300k, 6500k, sRGB, User. Adjust the hue of the image (Range: 0~100) ·HUE: Adjust the saturation of the image (Range: 0~100) ·Saturation:...
- Page 14 Other Settings Menu Brightness/Contrast Aspect Full Color Settings FreeSync Audio Settings Language English Other Settings Input Source Reset Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz Set Aspect Ratio to Full Screen or 16:9 ·Aspect: FreeSync technology is a solution that eliminates ·FreeSync: screen tearing without all the usual lag and latency.
-
Page 15: Using The Duplicate/Extend/Second Screen
Using the Duplicate/Extend/Second Screen Windows ·Right click on the desktop and select “Display settings” ·Scroll down to the “Multiple Displays” option. Select “Duplicate these displays” or “Extend these displays” or “Show only on 2” for Different Modes How to extend a second screen on the left side ·Right click on the desktop and select “Display settings”... -
Page 16: Using The Portrait/Landscape Mode
MacOS ·Choose Apple menu > System Preferences, click Displays. ·Click the Arrangement tab. ·Make sure that the Mirror Displays checkbox isn’t selected for Extend Mode or is selected for Mirror Mode. Using the Portrait/Landscape Mode 14 Using the Monitor... - Page 17 Mac OS ·Choose Apple menu > System Preferences. ·Hold down the Cmd+Option(Alt) keys and click on “Displays” ·Look for the newly visible ‘Rotation’ drop down menu. Windows ·Right click on the desktop and select Display settings ·Scroll down to the “Display orientation” option. Selecting “Landscape”...
-
Page 18: Troubleshooting
03 Troubleshooting Please feel free to contact us for any problem. +1-888-666-0082 (24/7 Toll-Free) service@cocopar.net Black screen or No signal Please use the original accessories we provide (cables and charger). USB 3.0 A Male to USB Type C cable does not support video signal transmission. - Page 19 An Android to HDTV cable is required to mirror the screen. Contact us to get the HDTV cable. (service@cocopar.net) NTD Switch is connected to the monitor by USB-C cable, but it does not work. Please use the orignal USB Type C cable we provide to connect the monitor to NTD Switch, please refer to Page 7.
- Page 20 USB-C cable. But for iPad with lightning, a lightning to HDMI adapter is required to work with the monitor. Please contact us to get the free adapter.(service@cocopar.net) How to save the setting of brightness. The monitor will automatically save all settings when using USB-C connection or HDMI connection for display.
-
Page 21: Support
Thank You Support Phone: +1-888-666-0082 (24/7 Toll-Free) Email: service@cocopar.net (reply within 8 hours) Support 19...
