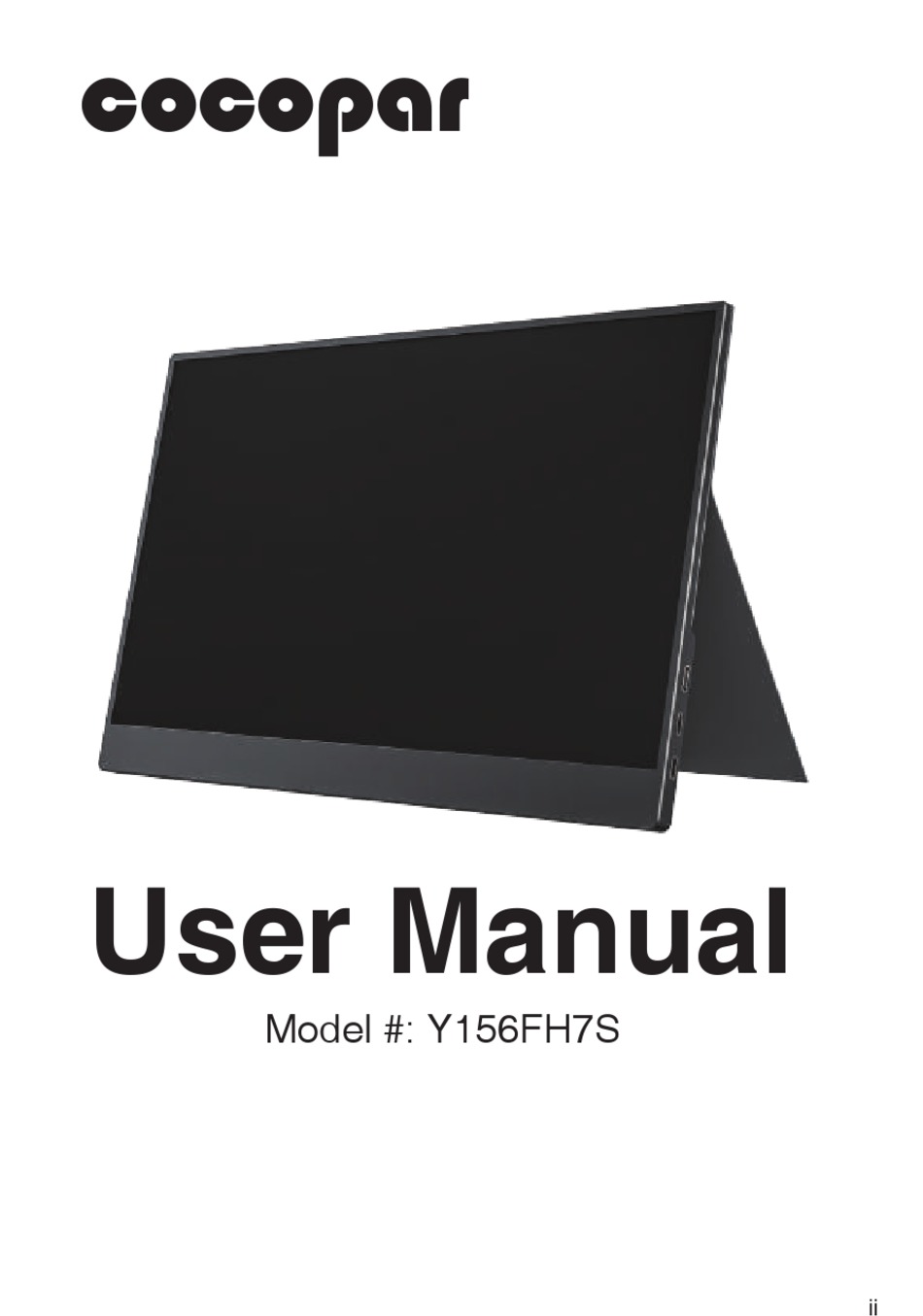

- Page 1 User Manual Model #: Y156FH7S...
-
Page 2: Table Of Contents
Contents 1 About Your Monitor ......1 Monitor Specifications ............1 Package Contents .............. 2 Identifying Parts and Controls ..........3 2 Using the Monitor ......... 4 How to use the monitor cover as a stand ......4 Connecting your Monitor ............ 5 Using the On-Screen Display(OSD) Menu ...... -
Page 3: About Your Monitor
01 About Your Monitor Monitor Specifications Screen Type Screen Size 15.6 inch 344*194 mm Resolution 1920 x 1080 Aspect Ratio 16 : 9 Color Gamut 72% NTSC Color Depth 16.78 Million colors Color Temperature 9300K Brightness 300 cd/m Contrast Ratio 1000 : 1 Viewing Angle Horizontal 178°... -
Page 4: Package Contents
Package Contents Please contact us if anything is missing or damaged. (service@cocopar.net) Cocopar Portable Monitor Magnetic Cover/Stand Watch the video to learn how to use the cover as stand USB Type C to USB Type C Cable For power and video signal transmission. -
Page 5: Identifying Parts And Controls
Identifying Parts and Controls Mini HDMI: Audio and video signal transmission Type-C: Audio and video signal transmission Power supply, supports reverse charging, compatible with PD2.0 protocol, supports 5~20V input. Power/Exit: Press to open the source input menu Press to return to previous menu without saving settings Long Press to Turn ON/OFF monitor Menu/+/-:... -
Page 6: Using The Monitor
02 Using the Monitor How to use the monitor cover as a stand ① Part A is magnetic. Backside of monitor is also magnetic. ② Attach Part A to the backside of the monitor magnetically. ③ Flip the cover and attach Part B to backside of Part A magnetically. -
Page 7: Connecting Your Monitor
Connecting your Monitor Laptop/PC Connection 1) Laptop/PC with Type-C port USB-C Cable Laptop Portable Monitor Power & Display Note: Please use the wall charger to power on the monitor to avoid black or flashing screen when power supply is not enough. USB-C Cable USB-C to USB-A Laptop... - Page 8 Laptop Portable Monitor HDMI Cable Note: (Mini)DP to HDMI adapter is not included in package, please contact us to get the adapter free.(service@cocopar.net) PS4/Xbox Connection HDMI Cable Portable Monitor USB-A to USB-C Note: Please use the wall charger to power on the monitor to avoid black or flashing screen when power supply is not enough.
- Page 9 USB-C to USB-A HDMI Cable iPhone Portable Monitor Lightning to HDMI Adapter Note: A Lightning to HDMI adapter is required for iPhone. Please contact us to get the adapter for free.(service@cocopar.net) Using the Monitor 7...
- Page 10 iPhone Connection with Lightning to HDMI adapter Note: Please also plug in a wall charger to the lightning port of the adapter to power on the adapter and make it work. 8 Using the Monitor...
-
Page 11: Using The On-Screen Display(Osd) Menu
Using the On-Screen Display(OSD) Menu Brightness/Volume Menu Brightness Volume Brightness Volume ·Scroll up the Menu Button to open the Brightness Menu. ·Scroll down the Menu Button to open the Volume Menu. Main Menu Menu Brightness/Contrast Brightness Color Settings Contrast Audio Settings Standard Other Settings Input Source... - Page 12 Brightness/Contract Menu Brightness/Contrast Brightness Color Settings Contrast Audio Settings Standard Other Settings Input Source Sharpness Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz Allows you to adjust the brightness or luminance of ·Brightness: the backlight (Range: 0~100). Adjust the contrast between the objects and background. ·Contrast: (Range: 0~100).
- Page 13 Color Settings Menu Brightness/Contrast Color Temp User Color Settings Audio Settings Saturation Other Settings Low Blue Light Input Source Color Gamut NATIVE Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz ·Color Temp: Adjust the tint of screen to 9300k, 6500k, sRGB, User. Adjust the hue of the image (Range: 0~100). ·HUE: Adjust the saturation of the image (Range: 0~100).
- Page 14 Other Settings Menu Brightness/Contrast Aspect Full Color Settings FreeSync Audio Settings Language English Other Settings Input Source Reset Resolution: 1920x1080@60Hz Maximum Resolution: 1920x1080@60Hz Set Aspect Ratio to Full Screen or 16:9 ·Aspect: FreeSync technology is a solution that eliminates ·FreeSync: screen tearing without all the usual lag and latency.
-
Page 15: Using The Duplicate/Extend/Second Screen
Using the Duplicate/Extend/Second Screen Windows ·Right click on the desktop and select “Display settings”. ·Scroll down to the “Multiple Displays” option. Select “Duplicate these displays” or “Extend these displays” or “Show only on 2” for Different Modes. How to extend a second screen on the left side ·Right click on the desktop and select “Display settings”. -
Page 16: Using The Portrait/Landscape Mode
MacOS ·Choose Apple menu > System Preferences, click Displays. ·Click the Arrangement tab. ·Make sure that the Mirror Displays checkbox isn’t selected for Extend Mode or is selected for Mirror Mode. Using the Portrait/Landscape Mode 14 Using the Monitor... - Page 17 Mac OS ·Choose Apple menu > System Preferences. ·Hold down the Cmd+Option(Alt) keys and click on “Displays” ·Look for the newly visible ‘Rotation’ drop down menu. Windows ·Right click on the desktop and select Display settings ·Scroll down to the “Display orientation” option. Selecting “Landscape”...
-
Page 18: Troubleshooting
03 Troubleshooting Please feel free to contact us for any problem. +1-888-666-0082 (24/7 Toll-Free) service@cocopar.net Black screen or No signal Please use the original accessories we provide (cables and charger). USB 3.0 A Male to USB Type C cable does not support video signal transmission. - Page 19 For example, the Type-C port of Google phones like Pixel does not support video output. An Android to HDTV cable is required to mirror the screen. Contact us to get the HDTV cable. (service@cocopar.net) Troubleshooting 17...
- Page 20 USB-C cable. But for iPad with lightning, a lightning to HDMI adapter is required to work with the monitor. Please contact us to get the free adapter.(service@cocopar.net) How to save the setting of brightness. The monitor will automatically save all settings when using USB-C connection or HDMI connection for display.
-
Page 21: Support
Thank You Support Phone: +1-888-666-0082 (24/7 Toll-Free) Email: service@cocopar.net Support 19...
