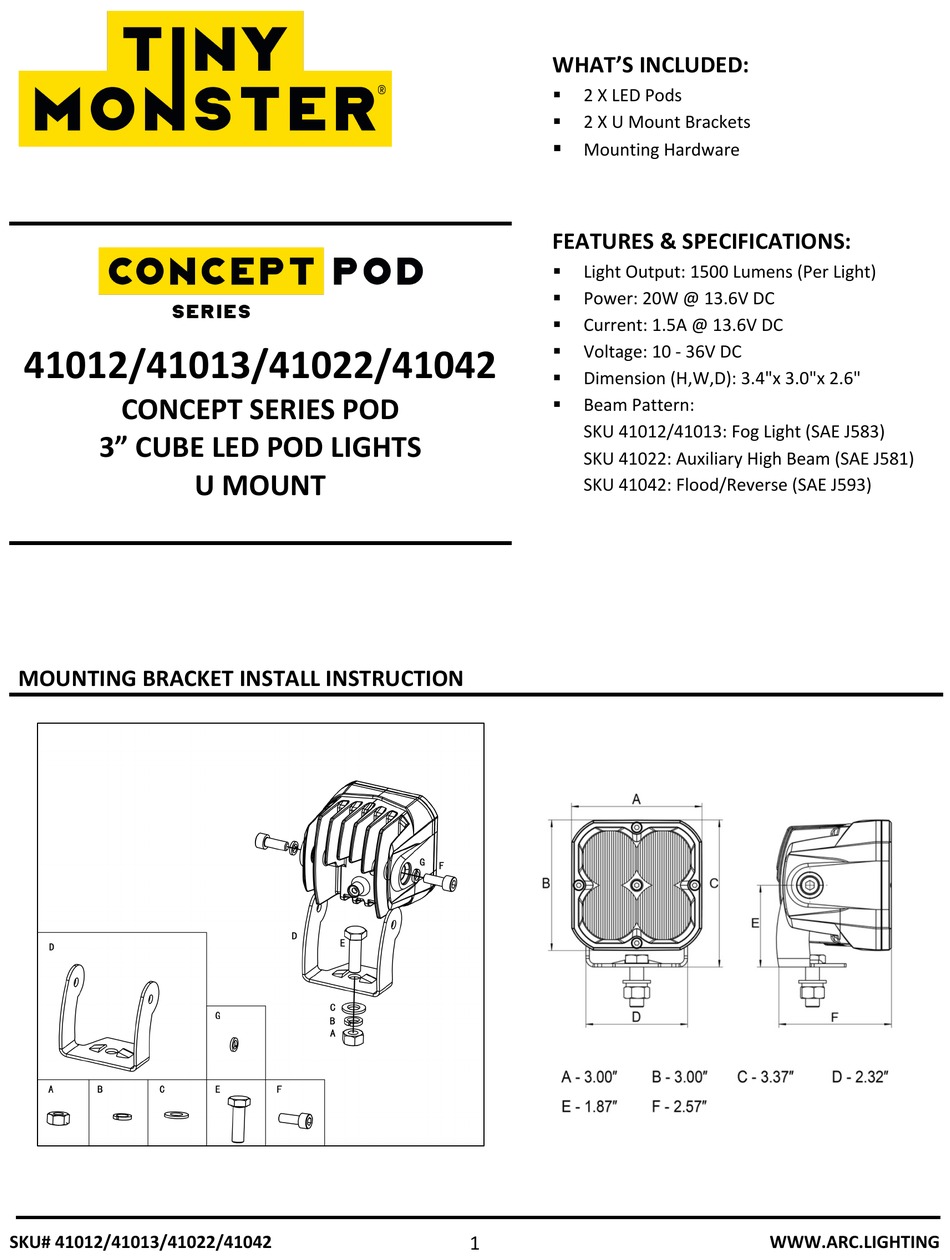

41012/41013/41022/41042
CONCEPT SERIES POD
3" CUBE LED POD LIGHTS
MOUNTING BRACKET INSTALL INSTRUCTION
SKU# 41012/41013/41022/41042
U MOUNT
WHAT'S INCLUDED:
2 X LED Pods
§
2 X U Mount Brackets
§
§
Mounting Hardware
FEATURES & SPECIFICATIONS:
Light Output: 1500 Lumens (Per Light)
§
Power: 20W @ 13.6V DC
§
Current: 1.5A @ 13.6V DC
§
Voltage: 10 - 36V DC
§
Dimension (H,W,D): 3.4"x 3.0"x 2.6"
§
Beam Pattern:
§
SKU 41012/41013: Fog Light (SAE J583)
SKU 41022: Auxiliary High Beam (SAE J581)
SKU 41042: Flood/Reverse (SAE J593)
1
