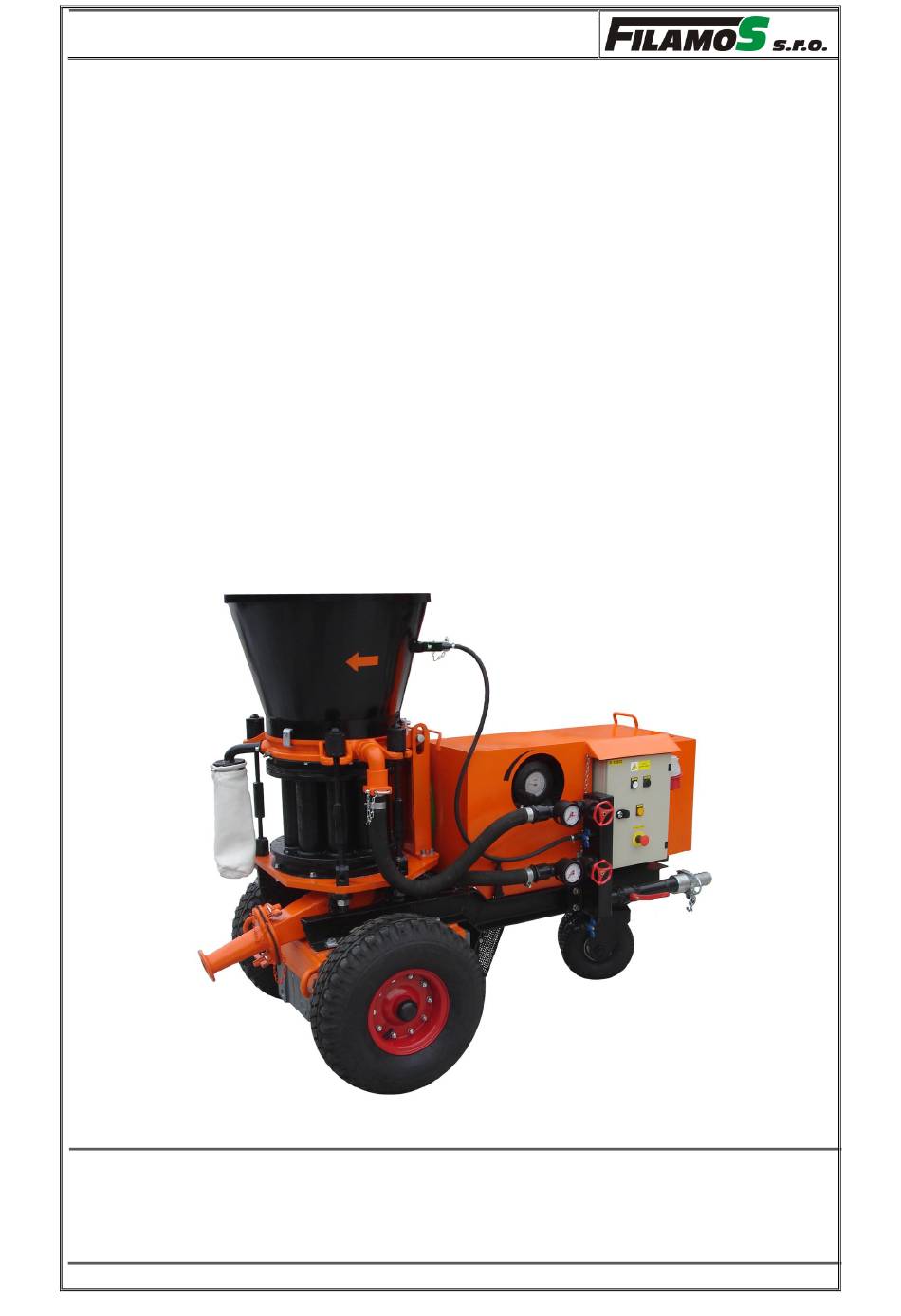

- Page 1 Concrete Spraying Machine - SSB 02.1 Series User Manual Concrete Spraying Machine SSB 02.1 , s. r. o. PRODUCER: FILAMOS Hate 546, 261 01 Pribram, Czech Republic Tel: + 420 318 637 763, Fax: + 420 318 624 181 www.filamos.com...
-
Page 2: Table Of Contents
Concrete Spraying Machine – SSB 02.1 CONTENT PAGE Preface ..................3 Use ....................3 III. Machine Operating ................3 Description ..................5 Technical Data ................7 Accessories ...................9 VII. Material ..................9 VIII. Executions..................9 Markings ..................10 Testing ..................10 Delivery ..................10 XII. Warranty ..................11 XIII. -
Page 3: Preface
This user manual is necessary to get basic information about safety use of concrete spraying machine SSB 02.1 (further only machine), made by producer FILAMOS, s.r.o., Hate 546, 261 01 Pribram, Czech Republic. Other information, recommendations and technical parameters are mentioned in the Operating and maintenance instructions made by producer. - Page 4 Concrete Spraying Machine – SSB 02.1 Safety instruction concerning: Assembly and the installation – Assembly of the machine is carried out at the producer and the transport to the client is performed in already assembled form of the machine. The check of the machine integrity, complexity of the equipment of the machine is performed in the place of operation.
-
Page 5: Description
Concrete Spraying Machine – SSB 02.1 Training Instructions There are only mentally and physical competent workmen older than 18 years with theoretical and practical skills qualified to operate the machine. Other Ways of Use The Machine cannot be used for any other purpose than transport of dry and wet concrete mixes, fire-resistant mixes and similar materials. - Page 6 Concrete Spraying Machine – SSB 02.1 The bottom sealing plate is fixed on the frame on which the dozing drum is rested as well as the exhauster and bottom exhaust. The Machine feeder is complimented by vibrator for acceleration of filling of the transported mix, and a sifter.
-
Page 7: Technical Data
Concrete Spraying Machine – SSB 02.1 Wet-gunning When the concrete mixture is applied in so-called wet method, the hopper is filled in with the prepared wet mix. In principle, the mix passes through the machine in the same way as when spraying the dry mixture. A hose for addition of chemical additives (e. - Page 8 Concrete Spraying Machine – SSB 02.1 SSB 02.1 COM-V: 4 poles electric motor 7,5 kW. Rotor revolutions in the range: 2,4 – 12,5 rpms/min. Performance parameter Type of rotor small rotor big rotor Rotor volume [dm 13,5 21,9 Rotor rpm [min 12,5 12,5 Theoretical output [m...
-
Page 9: Accessories
Concrete Spraying Machine – SSB 02.1 Principal dimensions Parameter 1820 Length [mm] Width [mm] Height [mm] 1480 Weight (with no accessories) [kg] VI. Accessories Standard set of accessories consists of: Delivery hose – 20 m End hose with the nozzle – 20 m Water hose –... -
Page 10: Markings
Concrete Spraying Machine – SSB 02.1 The product has the surface treatment of 3rd degree of rust aggressive surroundings protection and the paint complies with CSN ISO 3864. IX. Markings The machine has a rating plate with the following data: Name and residence of manufacturer, CE mark –... -
Page 11: Warranty
Concrete Spraying Machine – SSB 02.1 XII. Warranty The warranty period is 12 months from the date of the machine delivery. Otherwise according to conditions in purchase contract. The manufacturer provides no warranty: If the product is used for purposes or in a manner other than specified in the User manual and Operating and Maintenance Instructions, If the product is not being given proper care (poor storage, assembly, incorrect operating),... -
Page 12: List Of Standards
ČSN ISO 2768-1, ČSN EN 60204-1, ČSN EN 12329, ČSN EN ISO 9692-1 and ČSN ISO 3864. XVIII. Supplements Appendix No. 1: Binding plan Appendix No. 2: Machine Assembly The End Pribram – November 2008 Prepared by: Ing. Jiri Labuda Company: FILAMOS, s.r.o., Hate 546, 261 01 Pribram, Czech Republic... - Page 13 Concrete Spraying Machine – SSB 02.1 Appendix No. 1: Binding plan Remove the rear cover first.
- Page 14 Concrete Spraying Machine – SSB 02.1 Appendix No. 2: Machine Assembly Hopper Air vibrator Upper air cock Stop button Upper pressure gauge Start button Tightening Speed bolts Variator Lubrication indicator Central Air outlet lubrication Power connector Lower Air connecter pressure gauge Main air cock Lower air...
