Connect source

3

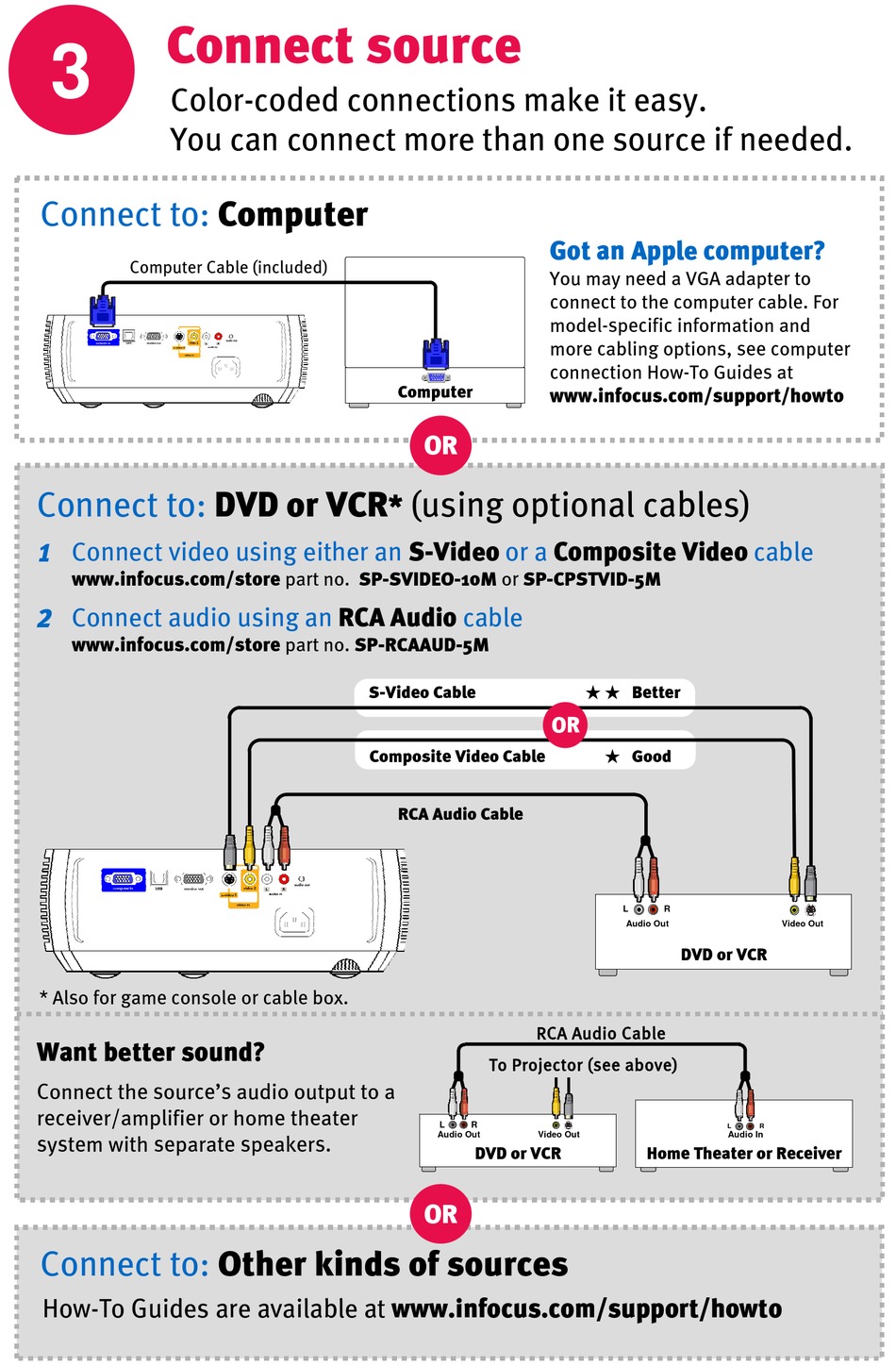

Color-coded connections make it easy.
You can connect more than one source if needed.
Connect to:
Computer Cable (included)
Connect to:
Connect video using either an
1
www.infocus.com/store part no. SP-SVIDEO-10M or SP-CPSTVID-5M
Connect audio using an
2
www.infocus.com/store part no. SP-RCAAUD-5M
* Also for game console or cable box.
Want better sound?
Connect the source's audio output to a
receiver/amplifier or home theater
system with separate speakers.
Connect to:
How-To Guides are available at www.infocus.com/support/howto
Computer
DVD or VCR
RCA Audio
S-Video Cable
Composite Video Cable
Other kinds of sources
Got an Apple computer?
You may need a VGA adapter to
connect to the computer cable. For
model-specific information and
more cabling options, see computer
connection How-To Guides at
Computer
www.infocus.com/support/howto
OR
(using optional cables)
*
S-Video or a Composite Video
cable
OR
RCA Audio Cable
RCA Audio Cable
To Projector (see above)
L R
Audio Out Video Out
DVD or VCR
OR
!!
Better
!
Good
L R
Audio Out
DVD or VCR
L
Audio In
Home Theater or Receiver
cable
Video Out
R
