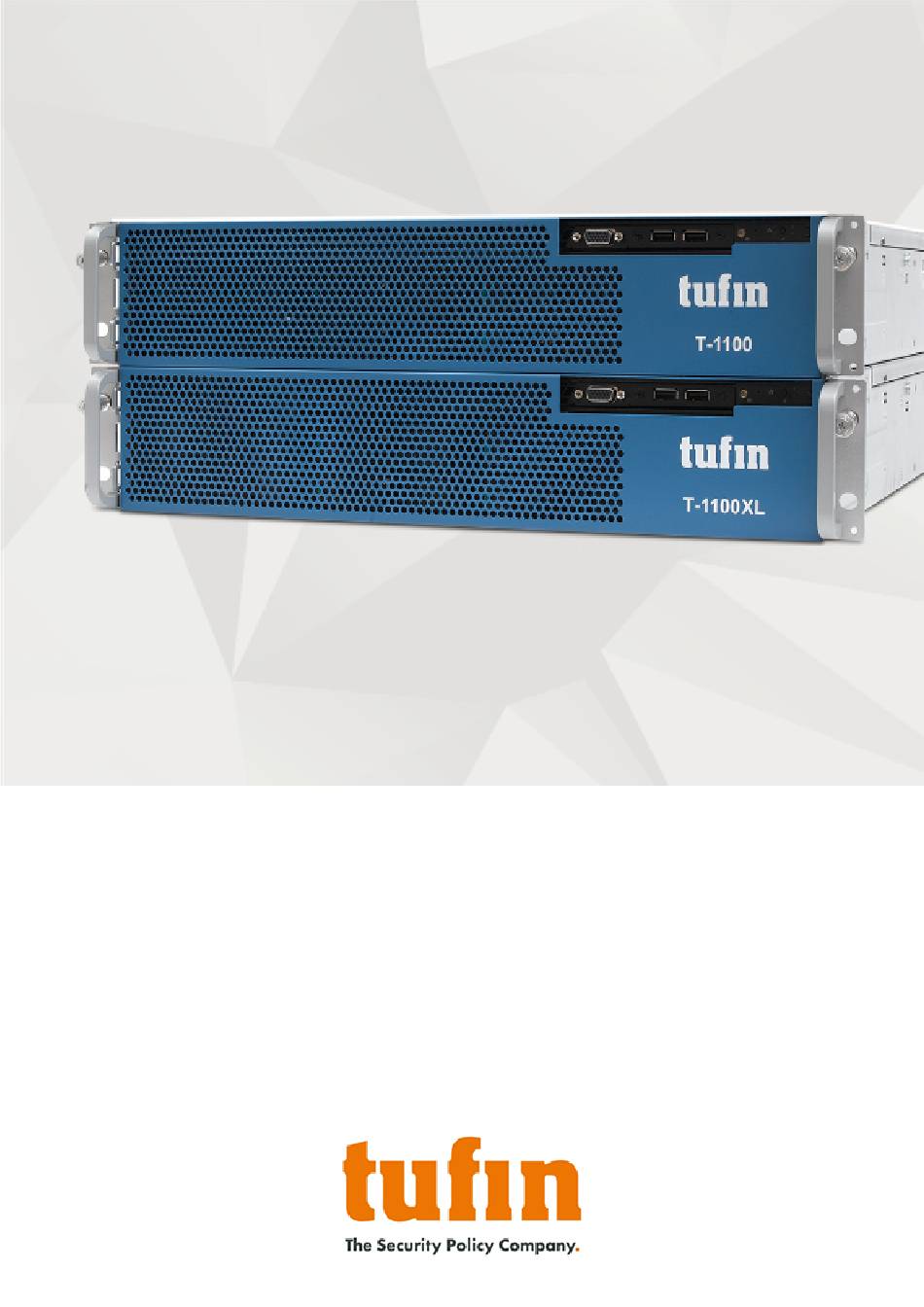

T-1100/1100XL Quick Start Guide
Version 11.5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T-1100 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for tufin T-1100

Summary of Contents for tufin T-1100

  • Page 1 T-1100/1100XL Quick Start Guide Version 11.5...

  • Page 2: Table Of Contents

    Table of Contents Table of Contents Chapter 1: Introduction Welcome Overview Chapter 2: The T-1100 Front and Rear Panels Front Panel Front Panel LEDs and Buttons Rear Panel Chapter 3: Setting Up The T-1100 Power up and Connect to the Network...

  • Page 3: Chapter 1: Introduction

    Information in this guide applies to both the T-1100 and the T-1100XL. (All references to T-1100 include T-1100XL as well.) The Tufin T-1100 appliance is designed to simplify integration and use of Tufin Orchestration Suite (TOS) by providing a unified hardware and software solution.

  • Page 4: Chapter 2: The T-1100 Front And Rear Panels

    T-1100/1100XL Quick Start Guide Chapter 2: The T-1100 Front and Rear Panels Chapter 2: The T-1100 Front and Rear Panels These sections describe the different elements in the front and rear panels. Front Panel Item Description VGA port 2 USB 3.0 ports...
  • Page 5 T-1100/1100XL Quick Start Guide Chapter 2: The T-1100 Front and Rear Panels Item Feature Description Blinking green indicates degraded operation (e.g., power supply nonredundancy, part of system memory mapped out by BIOS). Blinking red indicates one or more non-critical fault conditions.

  • Page 6: Rear Panel

    T-1100/1100XL Quick Start Guide Chapter 2: The T-1100 Front and Rear Panels Rear Panel Item Description Notes Power supply 1 Power supply 2 Onboard LAN (eth0) Onboard LAN (eth1) Video connector RJ45 serial port 3 USB 3.0 ports RJ45 Remote Management Module...

  • Page 7: Chapter 3: Setting Up The T-1100

    Chapter 4: Configure SecureTrack), or using a console connection (see Advanced CLI Configuration) in CLI. For CLI instructions, see https://forum.tufin.com/support/kc/latest/Content/Suite/1584.htm. To power up the appliance and connect it to the network: 1. Connect the power cable. 2. Boot up the appliance by pressing the Power button on the front panel.

  • Page 8: Chapter 4: Installing And Configuring Tufin Orchestration Suite Classic

    Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic This section includes instructions to install and configure Tufin Orchestration Suite Classic R21-1 and above running on TufinOS 3.60. Install Tufin Orchestration Suite Classic 1. Install Tufin Orchestration Suite Classic (SecureTrack and SecureChange/SecureApp): a.
  • Page 9 T-1100/1100XL Quick Start Guide Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic Login: For security reasons, change the admin password. EULA: Read and accept the End User License Agreement. Password: Type system for the Old Password of the TufinOS root user, and change the password.
  • Page 10 T-1100/1100XL Quick Start Guide Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic Networking (optional): Configure networking (DNS settings can also be configured later from SecureTrack's web interface) Time: Configure date and time settings. User Details: Configure the admin user’s details. Username and password cannot be changed in this page.

  • Page 11: Configure Securechange

    Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic Notifications: Configure the SMTP settings for SecureTrack email notifications. License: Installing a license is optional at this stage. To receive a license, please contact your Tufin reseller. Finish: Click Save to complete the installation wizard: Configure SecureChange 1.
  • Page 12 Log in as tufin-admin, with password admin. To further configure SecureChange, see the https://forum.tufin.com/support/kc/latest/Content/Suite/2353.htm. To add devices to be monitored, see the https://forum.tufin.com/support/kc/latest/Content/Suite/4034.htm. To add SecureTrack on this appliance to a distributed deployment, see https://forum.tufin.com/support/kc/latest/Content/Suite/2456.htm. Copyright 2003-2021, Tufin Software Technologies Ltd.

  • Page 13: Chapter 5: Installing And Configuring Tufin Orchestration Suite Aurora

    This section includes instructions to install and configure Tufin Orchestration Suite Aurora R21-1 and above running on TufinOS 3.60. Note: After you install Tufin Orchestration Aurora on the appliance, you will be unable to revert it to Tufin Orchestration Suite Classic.
  • Page 14 T-1100/1100XL Quick Start Guide Chapter 5: Installing and Configuring Tufin Orchestration Suite Aurora c. The login window appears. Log in as admin with password admin, and click Login. You are prompted to set a new password. d. Configure the IP address and DNS, where <Interface Name> is the name of the interface you are using. For example: ens33.

  • Page 15: Configure Securetrack

    T-1100/1100XL Quick Start Guide Chapter 5: Installing and Configuring Tufin Orchestration Suite Aurora a. Run the screen command: screen -S install b. Run the install command, replacing the parameters: <VIP> with the external IP that you will use to access TOS Aurora <SERVICE-CIDR> with the CIDR that you want TOS Aurora to use...

  • Page 16: Configure Securechange

    T-1100/1100XL Quick Start Guide Chapter 5: Installing and Configuring Tufin Orchestration Suite Aurora Set the Time Zone: The TOS Aurora application has its own timezone, independent of your host node and the default is UTC. If UTC is not the timezone you want to use, see https://forum.tufin.com/support/kc/aurora/Content/ST2/ManagingTOS/SetTimeZone.htm.
  • Page 17 (optional) Connect to an LDAP directory to use LDAP user accounts. For instructions, see https://forum.tufin.com/support/kc/aurora/Content/Suite/2386.htm. Create local users and user roles. For instructions, see https://forum.tufin.com/support/kc/aurora/Content/Suite/2287.htm. If you need to reset the password of the initial Administrator (username: admin), see https://forum.tufin.com/support/kc/aurora/Content/Suite/1922.htm.

  • Page 18: Chapter 6: Setting Up The Remote Management Module

    Chapter 6: Setting up the Remote Management Module The remote management module (RMM) or IPMI port in Tufin appliances lets you connect to an administration web interface for the appliance. You can configure RMM via BIOS or via SSH or a Console. With this module you will be install newer versions of TufinOS on the appliance without having to access the server physically.
  • Page 19 T-1100/1100XL Quick Start Guide Chapter 6: Setting up the Remote Management Module 3. In the next screen, go to Setup Menu. 4. Select Server Management and enter the BMC LAN Configuration. Copyright 2003-2021, Tufin Software Technologies Ltd.
  • Page 20 T-1100/1100XL Quick Start Guide Chapter 6: Setting up the Remote Management Module 5. Edit the settings as required. 6. Save settings and reboot the appliance. Copyright 2003-2021, Tufin Software Technologies Ltd.

  • Page 21: Configure Rmm Using Ssh Or A Console

    Create a new user or modify settings for an existing User ID. ipmitool user set name <user_id> <username> ipmitool user set password <user_id> ipmitool channel setaccess <channel number> <user id> [callin=on|off] [ipmi=on|off] [link=on|off] [privilege=level] For example: Copyright 2003-2021, Tufin Software Technologies Ltd.

  • Page 22: Installing Tufinos

    Now you can securely connect to the RMM to do remote administration tasks. For more about using the RMM, refer to the Intel® Remote Management Module 4 (Intel® RMM4) User Guide at http://www.intel.com/support/motherboards/server/sb/CS-032371.htm. Installing TufinOS To install TufinOS using RMM, see https://forum.tufin.com/support/kc/latest/Content/Suite/TufinOS_RMM.htm. Copyright 2003-2021, Tufin Software Technologies Ltd.

  • Page 23: Chapter 7: Restoring Factory Defaults

    The appliance reboots with factory default settings. 6. Download the latest Tufin Orchestration Suite package from the Tufin Support site (www.tufin.com/support) and copy it to your appliance. a. Log onto the appliance command line as tufin-admin with new password that you created.

  • Page 24: The Next Step

    TOS build, contact Tufin support. The Next Step You now have the basics you need to get started. The next step is to gain more in-depth knowledge of your Tufin software. For complete Tufin documentation, see https://forum.tufin.com/support/kc/latest/Content/Suite/home.htm...
