Table of Contents Table of Contents Chapter 1: Introduction Welcome Overview Chapter 2: The T-800/1200 Front and Rear Panels Front Panel Front Panel LEDs and Buttons Rear Panel Chapter 3: Setting Up The T-800/1200 Power up and Connect to the Network...

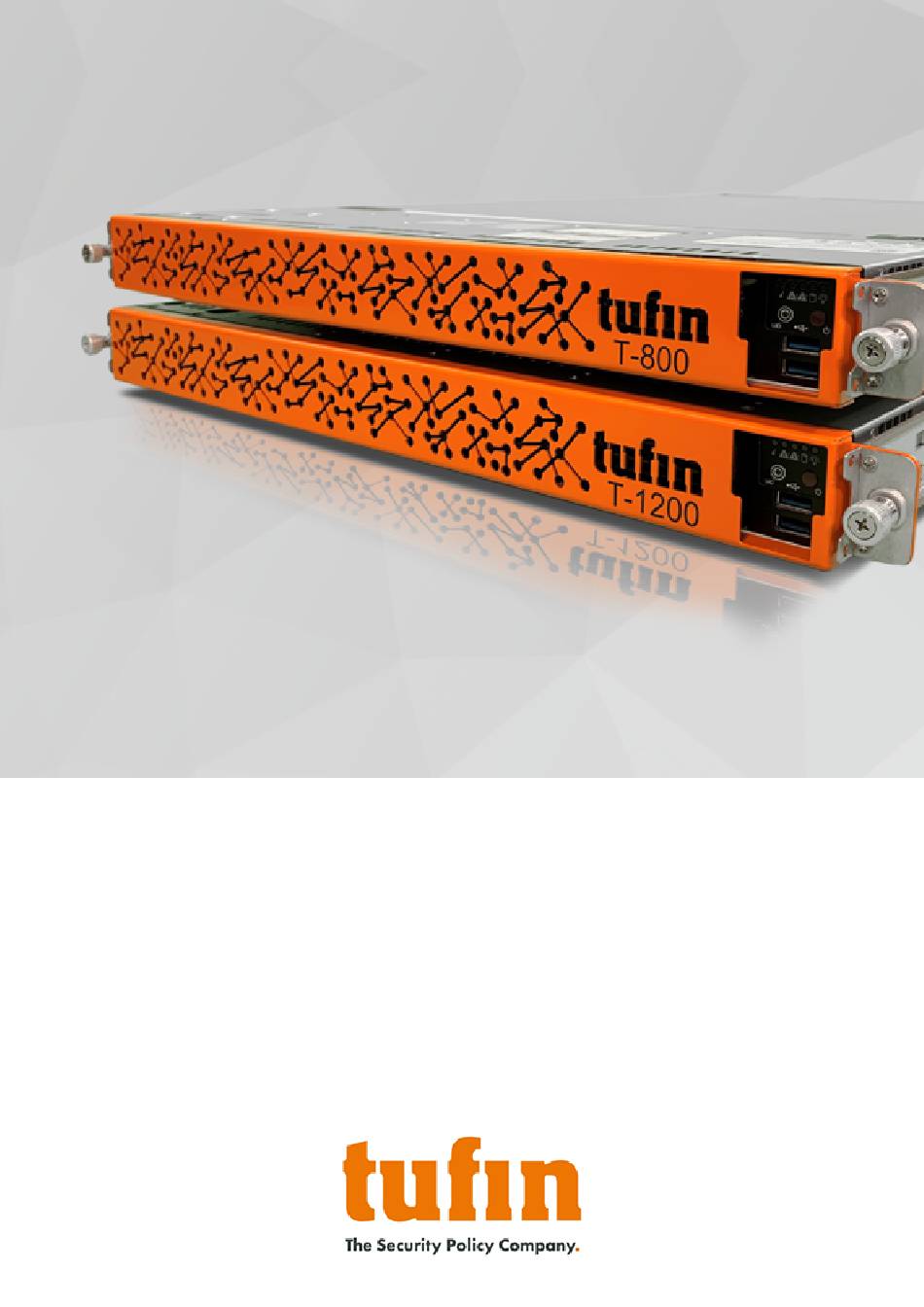

Information in this guide applies to the T-800 and the T-1200 appliances. The new T-Series Appliances are a Tufin-in-a-box solution that provides IT organizations with a quick, robust installation that lowers total cost of ownership. T-Series Appliances are designed to support both Tufin Orchestration Suite Classic (default) and Aurora. You can choose which product to install.
T-800/1200 Quick Start Guide Chapter 2: The T-800/1200 Front and Rear Panels Chapter 2: The T-800/1200 Front and Rear Panels These sections describe the different elements in the front and rear panels. Front Panel Item Description Service/Asset Tag Hard drive bay 0...
Page 5
T-800/1200 Quick Start Guide Chapter 2: The T-800/1200 Front and Rear Panels Item Feature Description NIC LED When flashing, indicates network activity on LAN1. NIC LED When flashing, indicates network activity on LAN2. When flashing, indicates activity on the hard drive.
1 PCI-E 3.0 low profile slot 2 PCI-E 3.0, full height, full length slots Note: For Tufin Orchestration Suite 2.0 (Aurora), you must use only LAN Ethernet port 1 (C in the figure) for all network connections. Copyright 2003-2021, Tufin Software Technologies Ltd.
Chapter 4: Configure SecureTrack), or using a console connection (see Advanced CLI Configuration) in CLI. For CLI instructions, see https://forum.tufin.com/support/kc/latest/Content/Suite/1584.htm. To power up the appliance and connect it to the network: 1. Connect the power cable. 2. Boot up the appliance by pressing the Power button on the front panel.
Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic This section includes instructions to install and configure Tufin Orchestration Suite Classic R21-1 and above running on TufinOS 3.60. Install Tufin Orchestration Suite Classic 1. Install Tufin Orchestration Suite Classic (SecureTrack and SecureChange/SecureApp): a.
Page 9
T-800/1200 Quick Start Guide Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic Login: For security reasons, change the admin password. EULA: Read and accept the End User License Agreement. Password: Type system for the Old Password of the TufinOS root user, and change the password.
Page 10
T-800/1200 Quick Start Guide Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic Networking (optional): Configure networking (DNS settings can also be configured later from SecureTrack's web interface) Time: Configure date and time settings. User Details: Configure the admin user’s details. Username and password cannot be changed in this page.
Chapter 4: Installing and Configuring Tufin Orchestration Suite Classic Notifications: Configure the SMTP settings for SecureTrack email notifications. License: Installing a license is optional at this stage. To receive a license, please contact your Tufin reseller. Finish: Click Save to complete the installation wizard: Configure SecureChange 1.
Page 12
Log in as tufin-admin, with password admin. To further configure SecureChange, see the https://forum.tufin.com/support/kc/latest/Content/Suite/2353.htm. To add devices to be monitored, see the https://forum.tufin.com/support/kc/latest/Content/Suite/4034.htm. To add SecureTrack on this appliance to a distributed deployment, see https://forum.tufin.com/support/kc/latest/Content/Suite/2456.htm. Copyright 2003-2021, Tufin Software Technologies Ltd.
This section includes instructions to install and configure Tufin Orchestration Suite Aurora R21-1 and above running on TufinOS 3.60. Note: After you install Tufin Orchestration Aurora on the appliance, you will be unable to revert it to Tufin Orchestration Suite Classic.
Page 14
T-800/1200 Quick Start Guide Chapter 5: Installing and Configuring Tufin Orchestration Suite Aurora c. The login window appears. Log in as admin with password admin, and click Login. You are prompted to set a new password. d. Configure the IP address and DNS, where <Interface Name> is the name of the interface you are using. For example: ens33.
T-800/1200 Quick Start Guide Chapter 5: Installing and Configuring Tufin Orchestration Suite Aurora a. Run the screen command: screen -S install b. Run the install command, replacing the parameters: <VIP> with the external IP that you will use to access TOS Aurora <SERVICE-CIDR> with the CIDR that you want TOS Aurora to use...
T-800/1200 Quick Start Guide Chapter 5: Installing and Configuring Tufin Orchestration Suite Aurora Set the Time Zone: The TOS Aurora application has its own timezone, independent of your host node and the default is UTC. If UTC is not the timezone you want to use, see https://forum.tufin.com/support/kc/aurora/Content/ST2/ManagingTOS/SetTimeZone.htm.
Page 17
(optional) Connect to an LDAP directory to use LDAP user accounts. For instructions, see https://forum.tufin.com/support/kc/aurora/Content/Suite/2386.htm. Create local users and user roles. For instructions, see https://forum.tufin.com/support/kc/aurora/Content/Suite/2287.htm. If you need to reset the password of the initial Administrator (username: admin), see https://forum.tufin.com/support/kc/aurora/Content/Suite/1922.htm.
Chapter 6: Setting up the Remote Management Module The remote management module (RMM) or IPMI port in Tufin appliances lets you connect to an administration web interface for the appliance. You can configure RMM via BIOS or via SSH or a Console. With this module you will be install newer versions of TufinOS on the appliance without having to access the server physically.
1 b. Create or modify users. This command will create a new user or overwrite settings for an existing User ID. ipmitool user set name <user_id> <username> ipmitool user set password <user_id> Copyright 2003-2021, Tufin Software Technologies Ltd.
Now you can securely connect to the RMM to do remote administration tasks. For more about using the RMM, refer to the Intel® Remote Management Module 4 (Intel® RMM4) User Guide at http://www.intel.com/support/motherboards/server/sb/CS-032371.htm. Installing TufinOS To install TufinOS using RMM, see https://forum.tufin.com/support/kc/latest/Content/Suite/TufinOS_RMM.htm. Copyright 2003-2021, Tufin Software Technologies Ltd.
The appliance reboots with factory default settings. 6. Download the latest Tufin Orchestration Suite package from the Tufin Support site (www.tufin.com/support) and copy it to your appliance. a. Log onto the appliance command line as tufin-admin with new password that you created.
TOS build, contact Tufin support. The Next Step You now have the basics you need to get started. The next step is to gain more in-depth knowledge of your Tufin software. For complete Tufin documentation, see https://forum.tufin.com/support/kc/latest/Content/Suite/home.htm...
