Summary of Contents for VocalMist Portable Nebulizer

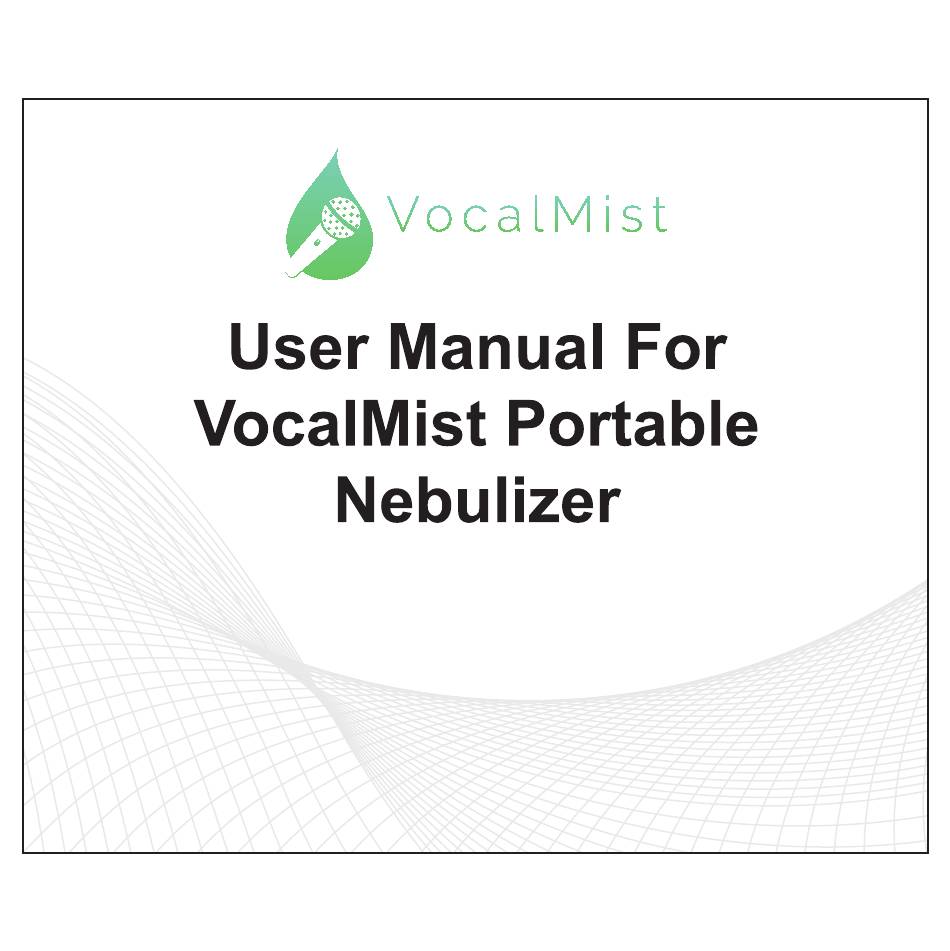

- Page 1 Model: VocalMist 1st Gen 2018. 1...
-
Page 3: Important Safety Notes
In the event the battery becomes submerged, do not use the device. VocalMist Portable Nebulizer is to be used with Isotonic Saline ONLY. Use of other substances may damage the unit. Use of medication requires a doctor’s approval. - Page 4 2. Model No: VocalMist 1st Generation 3. Working Principles and Mechanism The working principle of the portable nebulizer is achieved by micro-metal mesh oscillation via the rapid oscillation of the circuit and piezoelectric ceramic transducer chip, which sends the liquid through the metal mesh at tiny particle sizes (3μm). This function immediately forms numerous tiny atomized particles to be inhaled through the mask or mouthpiece to enter the user’s respiratory system.
- Page 5 The right vertical axis is the volume percentage of a certain section, corresponding to thehistogram or undulating Product Composition The VocalMist is c omposed mainly by the main unit and nebulizer device, medication cu Saline cup, Micro USB cable, threaded components, Micro USB cable and accessories...
- Page 6 6. Product Contents Warranty Card 2017. 1 Name Name Mouthpiece Medication cup Saline cup Mask Velvet Bag Unit USB cable Spray Nozzle Warranty Card Power Switch Slide switch User Manual “Press” button Note: Please refer to the configuration list mini USB interfac 7.
- Page 8 Please dispose of used batteries according to the local environmental regulations. Do not dispose with regular trash to avoid environmental pollution. Do not dismantle or repair the equipment or components. If you need to replace the battery, please consult or purchase from VocalMist LLC.
-
Page 9: Use Instructions
4.USE Instructions 1) Prepare: Clean and disinfect the components and spray nozzle when used. 2) Inject the liquid: Turn the grey cap counter-clockwise to open, add saline to cup, then screw the cap closed again. Note: do not exceed the maximum capacity of the saline cup, the maximum capacity can be seen on saline cup scale. chart 1 3. - Page 10 3) Slowly take a deep breath and then breath in the saline mist. 4) The nebulizer will shut down automatically after 10 minutes. If you need to continue to use, press the ON / OFF key. Please make sure there is enough saline in the liquid cup. 5) After nebulization, press the ON / OFF key to turn off and stop the nebulization.
-
Page 11: Cleaning And Disinfection
5. Cleaning and Disinfection 1. Please disinfect saline cup, spray nozzle, suction mask and so on after use. According to "GB / T 27949-2011 medical device disinfectant health requirements", "WS / T 367-2012 disinfection technical specifications", recommended cleaning, disinfection specific methods are as follows: 1) Please cut off the power before cleaning. - Page 12 saline cup and other c.Do not wrap the power cord around the unit. d.When using a nebulizer, if any irregularities are encountered, seek a solution in accordance with Chapter 8. e. If the nebulizer still does not work properly, please contact our company or the dealer. f.
- Page 13 7. Contraindications, Precautions, Notices, and Warnings 1. Contraindications 1) This device is to be used with sterile isotonic saline ONLY. 2) If you have any medical respiratory considerations, consult with a doctor before use 2. Notice and suggestion The nebulizer is a medical device and is intended for human use only. Please follow the instructions in the manual or under the guidance of a doctor, infants and young children and special care crowd should be used under the supervision of the guardian.
- Page 14 Do not use a microwave oven to dry or disinfect the unit, as this may cause a fire Please place the VocalMist in a place where children and infants can not reach it. Please use qualified manufacturers of lithium battery power charger(output5.0V/1.0A).
-
Page 15: Troubleshooting Tips
arning Please refer to a doctor before use if you have diabetes or other illnesses This device is not intended for medicinal use. Please refer to a doctor regarding medical needs. If discomfort occurs, stop using the device and consult a doctor for help. Oils are not allowed, and may cause damage to the device. - Page 16 1. Within 60 Days - The VocalMist Portable Nebulizer is warranted to be free from material defects and workmanship defects appearing within 60 days from the date of purchase when used in accordance with the instructions provided with the device.
- Page 21 Water S eri a l S eri a l N o. : N o. : @ feel l i fe E ma i l : i nf o . com Water S eri a l S eri a l N o. : N o.
- Page 22 CERTIFICATE OF INSPECTION Feellife Medical Inc. Product: mini Air 360 Model: Inspection date: Inspector:...
- Page 23 Configuration list If Included Item Quantity Unit Saline Adult mask Child mask Mouthpiece User manual Warranty card Certificate of inspection User Guidance Velvet bag Micro USB cable...
