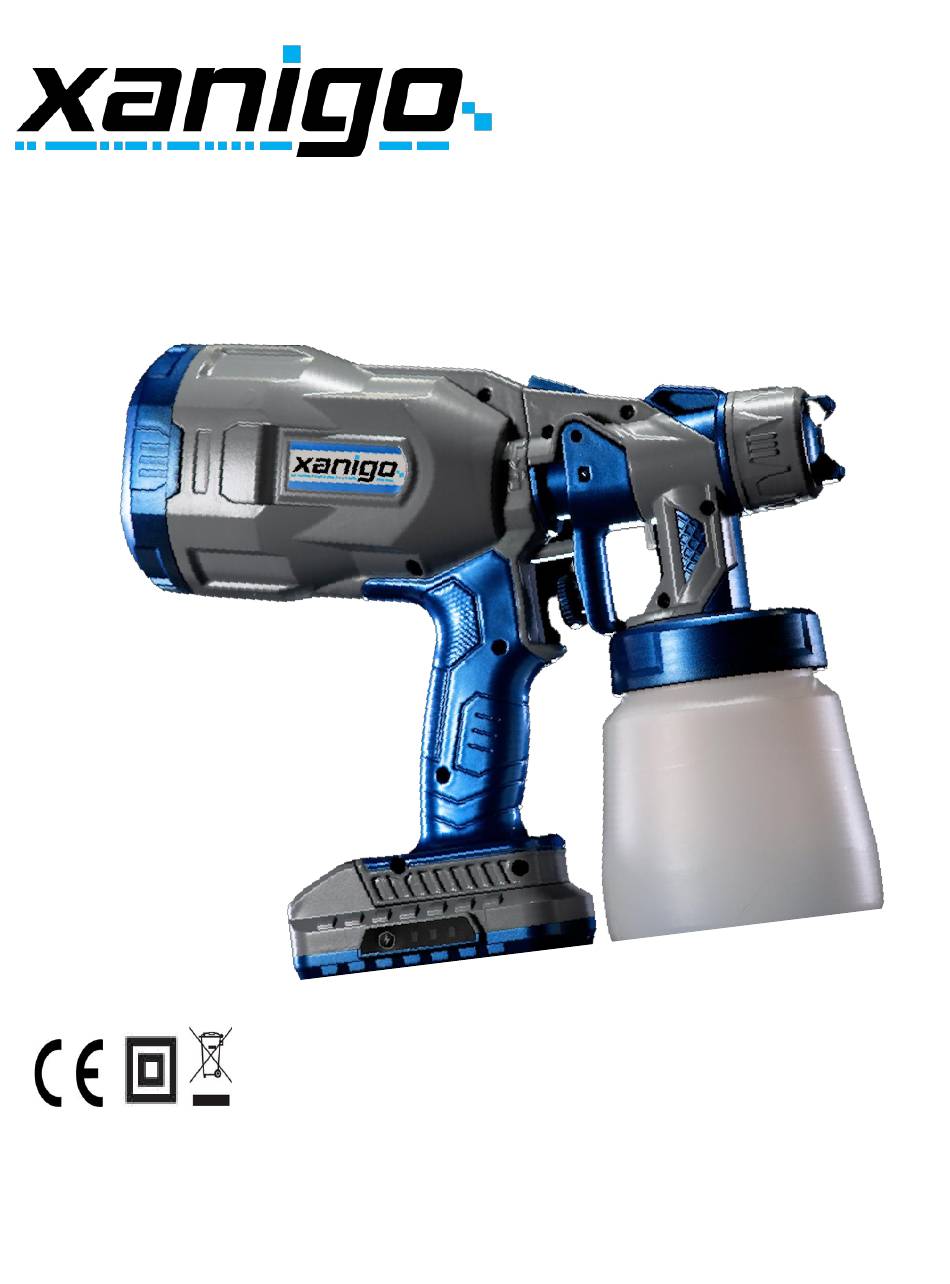

- Page 1 Cordless Atomizer for Disinfecting INSTRUCTIONS FOR HVLP CORDLESS ATOMIZER (XF102) Before using the atomizer, read this manual thoroughly. Any improper use can cause damage or serious injury including death.
- Page 2 Freedom XF102- User Manual Disinfecting Log Sheet Area Disinfected Chemical Used Date Time...
-
Page 3: Important Safety Instructions
Be familiar with the controls and the proper usage of the equipment. WARNING: FIRE OR EXPLOSION HAZARD. Only use Xanigo approved chemicals. Other chemicals may have solvents which can generate spray material fumes that can explode or ignite. Severe injury or property damage can occur. Only clean up with water or soap &... - Page 4 Freedom XF102- User Manual WARNING: HAZARDOUS VAPORS. Spray materials, solvents, and other materials can be harmful if inhaled or come in contact with the body. Vapors can cause severe nausea, fainting, or poisoning. To avoid these risks, take the following preventions: •...
-
Page 5: General Safety Warnings
• Damaged battery packs and/or chargers should be removed from service and recycled. • Do not incinerate Xanigo Li-Ion battery packs. This could result in an explosion and/or the release of toxic fumes and materials. • Battery liquid is flammable if exposed to spark or flame. - Page 6 Freedom XF102- User Manual...
- Page 7 Freedom XF102- User Manual I Exploded view: ST2.9*10 Screw O-ring Lock catch Rear cover 22 Needle spring Switch, DC micro Cotton filter Needle set Battery pack, XB104-20P Right cover Battery pack pin Switch plunger spring Pipette Left cover Switch plunger...
- Page 8 Freedom XF102- User Manual IV Operating Instructions 1. NOTE- Before operation, review the battery and charger information, Section VI of this user manual. 2. Ensure disinfectant is prepared as per manufacturer’s instructions and atomizer battery pack is removed. 3. Unscrew disinfectant container from atomizer.
- Page 9 Freedom XF102- User Manual 5. Remove motor/blower assembly from the atomizer. a. Hold the atomizer in your left hand and press the latch in the direction of the arrow. b. At the same time hold the motor/blower handle assembly with your right hand and rotate it counterclockwise 90 degrees.
- Page 10 Freedom XF102- User Manual 8. Adjust the needle adjusting screw to meet your desired level of disinfectant coverage a. Adjust the screw to the left to decrease coverage b. Adjust the screw to the right to increase coverage 9. Spray pattern adjustment. Turn the knob to adjust from round pattern to fan pattern.
- Page 11 Freedom XF102- User Manual 10. Adjusting spray pattern orientation a. The fan pattern can be adjusted from horizontal to vertical by adjusting the air cap. b. Slightly loosen the air cap retaining nut and rotate air cap to desired position.
- Page 12 Freedom XF102- User Manual V Maintenance 1. Cleaning- a) Remove battery from atomizer. b) Separate atomizer from motor/blower assembly Remove disinfectant container from atomizer d) Remove any remaining disinfectant from disinfectant container and dispose of as per disinfectant manufacturer’s recommendations.
-
Page 13: Charging Procedure
Freedom XF102- User Manual VI Battery Pack and Charger 1. NOTE- Battery pack is shipped approximately 30% charged. Please charge battery before using in the atomizer. 2. Charging procedure a. Plug charger into appropriate outlet. The green LED will illuminate. Then slide battery pack onto charger. -
Page 14: Troubleshooting
Freedom XF102- User Manual VII Troubleshooting Problem Cause Solution A. little or no material flow 1. nozzle clogged 1. clean 2. suction tube clogged 2. clean 3. material volume setting turned too far to the right 3. turn to the left 4. - Page 15 Freedom XF102- User Manual Xanigo, llc 3236 Huntington Weston, FL 33332 https://xanigo.com Contact Us (800) 514-7837 info@xanigo.com support@xanigo.com 07/2021...
