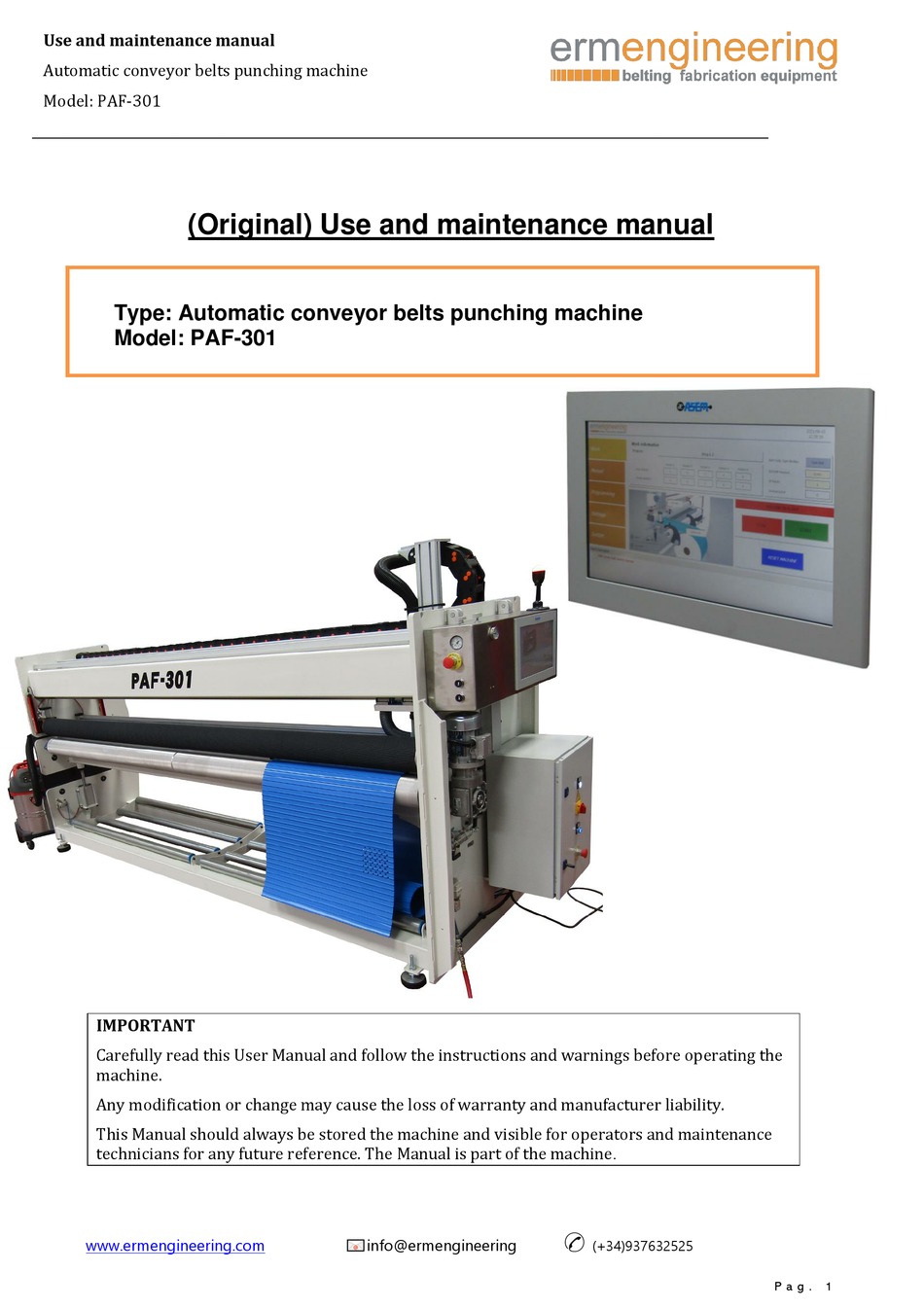

Use and maintenance manual
Automatic conveyor belts punching machine
Model: PAF-301
____________________________________________________________________________________________________________________
(Original) Use and maintenance manual
Type: Automatic conveyor belts punching machine
Model: PAF-301
IMPORTANT
Carefully read this User Manual and follow the instructions and warnings before operating the
machine.
Any modification or change may cause the loss of warranty and manufacturer liability.
This Manual should always be stored the machine and visible for operators and maintenance
technicians for any future reference. The Manual is part of the machine
www.ermengineering.com
info@ermengineering
.
✆
(+34)937632525
P a g . 1
