Use and maintenance manual
Auto-Puncher for timing belts
Model: APTM-600
____________________________________________________________________________________________________________________
(Original) Use and maintenance manual
Type: Auto-Puncher for timing belts
Model: APTM-600
IMPORTANT
Carefully read this User Manual and follow the instructions and warnings before operating the
machine.
Any modification or change may cause the loss of warranty and manufacturer liability.
This Manual should always be stored the machine and visible for operators and maintenance
technicians for any future reference. The Manual is part of the machine
www.ermengineering.com
info@ermengineering
.
✆
(+34)937632525
P a g . 1
Advertisement
Table of Contents
Related Manuals for ermengineering APTM-600
Summary of Contents for ermengineering APTM-600

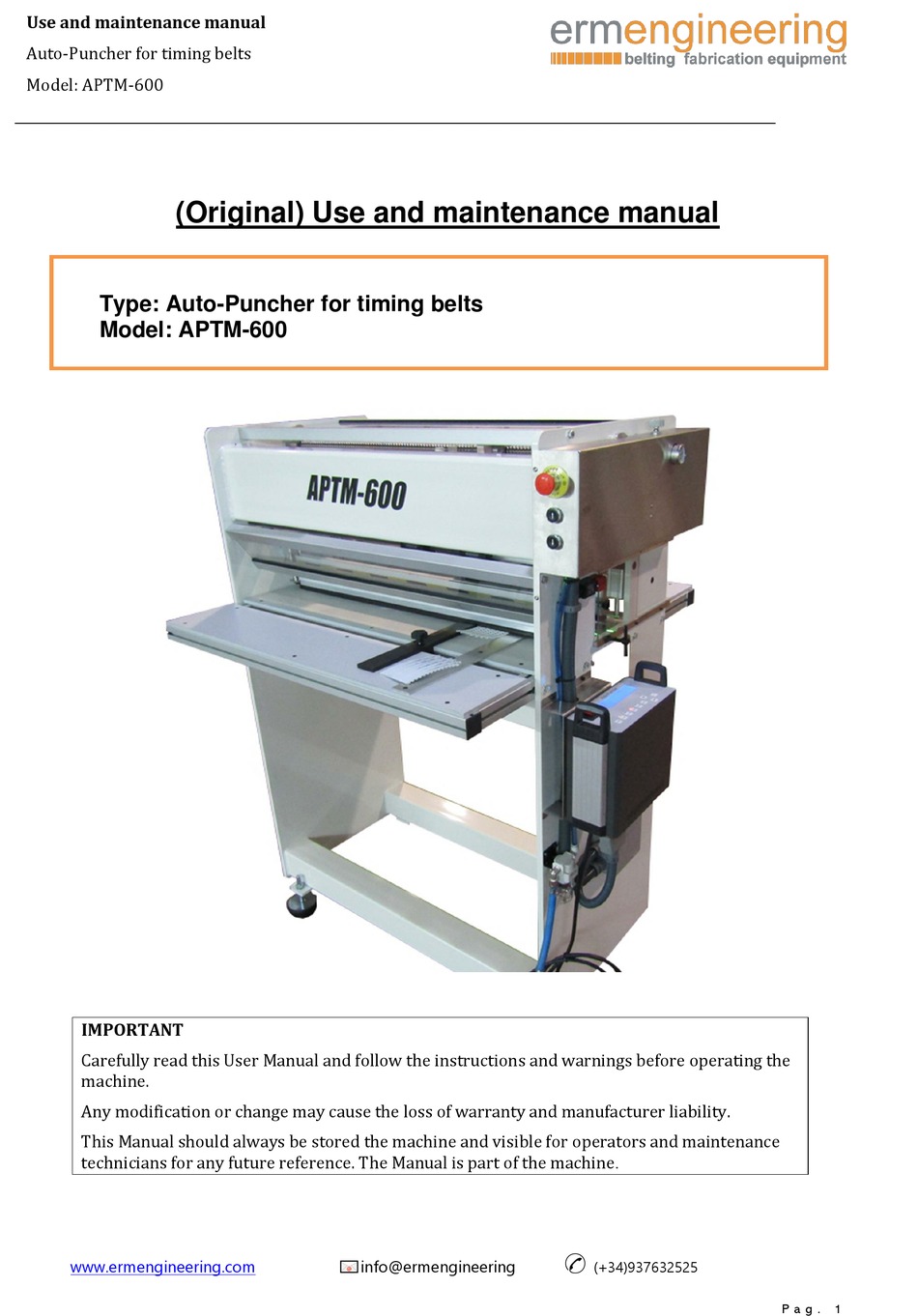

- Page 1 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ (Original) Use and maintenance manual Type: Auto-Puncher for timing belts Model: APTM-600 IMPORTANT Carefully read this User Manual and follow the instructions and warnings before operating the machine. Any modification or change may cause the loss of warranty and manufacturer liability.
-
Page 2: Table Of Contents
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Index: Page CE Declaration of conformity: ..............................3 Transport and unloading the machine ..........................4 Dimensions and weights: ................................. 5 Installation and connection: ..............................5 Description: ....................................6 Technical characteristics:................................ 7 Using instructions: .................................. -
Page 3: Ce Declaration Of Conformity
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ - CE Declaration of conformity WE DECLARE, under our responsibility, that the machine: - Type: Automatic Puncher - Brand: ERM Engineering - Model: APTM-600 - Serial No.: xxxxxx - Manufacturer date: 2021... -
Page 4: Transport And Unloading The Machine
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ - Transport and unloading the machine Due to the fragility of some components of the machine, wood packaging is required with reinforced board to attach it to the base by bolts through the openings in the rubber feet. -
Page 5: Dimensions And Weights
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ - Dimensions and weights: • Total weight: 314 Kg • Measurements: 1487x1060x1538 mm. - Installation and connection: P a g . 5... -
Page 6: Description
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Provide compressed air through a tube with a minimum interior diameter of 8 mm., connected to the intake. NOTE: One must bear in mind that the air consumption of this punch cutter is 280 litres/minute. -
Page 7: Technical Characteristics
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ - Technical characteristics: Dimensions 1487 x 1060 x 1538 (l x w x h) Weight 314 Kg Max. thickness 10 mm. Voltage 1 x 230 Power 0.40 kW Max. pressure... -
Page 8: Programming
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ 2. EMERGENCY STOP This system allows an emergency stop to be performed at any time using the two push buttons located at both ends of the bench. Message: EMERGENCY LOCK PUSH BUTTON To deactivate it, we must unlock the push button and then press RESET to return the head to the starting point. - Page 9 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ 1. RESET This must be pressed after an emergency stop or position the head at the starting point after STOP. 2. A-A Selection of the A-A program This program is used in most cases, to always operate on guide rail and cut the belts performing the first end by inserting it on one side of the bridge and the second end on the other side, or to cut series continuously.
-
Page 10: Belt Cutting Measurements For The Different Punches
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Belt cutting measurements for the different punches. 120 x 15 90 º……………………………………………… 135 mm. Longer Changing punch WARNING: When changing punches, switching off the equipment at the OFF switch is recommended for greater safety. -
Page 11: Punch Cutting A-A Direct Finger
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Retighten the 2 bolts. Close the sliding door and program the correct step in the MENU …. STEP … OK NOTE: The cutting pressure must be adjusted for each type of punch or material. - Page 12 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Then pencil in the exact measure required. (In this case 540mm) Then place the belt to left side of machine, under the tread bar and adjust the table guide.
- Page 13 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Introduce the belt until the mark made coincides with laser line, ensuring it is fully in contact with the guide. Lower the tread bar using the down push button.
- Page 14 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Check that belt still in correct position after down the bar. Select the A-A function if not activated. Us the + / - buttons to adjust the belt width in centimeters and then press OK.
- Page 15 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ NOTE: The programmed values will not be lost, even if the equipment is switched off. The program always memorises the last values input. Press START to begin cutting at the first end.
-
Page 16: Changing Support Plate
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Lower the tread bar using the drop push button and press START. Changing support plate: The black cover is removed to change or turn the support plate. For this operation, use an Allen key 6mm. - Page 17 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Fully remove the plate displacement nut. Use a screwdriver to lever in the jig opening to lift and withdraw the plate. P a g . 1 7...
-
Page 18: Maintenance And Care
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ Remove the plate from the back side of the frame. Maintenance and care: • Keep the screw and linear guides dust free and well lubricated with low density, low silicone content lubricant oil. - Page 19 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 ____________________________________________________________________________________________________________________ The belt is not cut across the full width. Check that the intake pressure does not drop during cutting due to compressed air supply shortage. Check the thickness of the polypropylene plate.
-
Page 20: Pneumatic Scheme
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ - Pneumatic scheme: P a g 2 0... -
Page 21: Spare Parts
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ - Spare parts: P a g 2 1... - Page 22 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 2...
- Page 23 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 3...
- Page 24 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 4...
-
Page 25: Electrical Schemes
Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ - Electrical schemes P a g 2 5... - Page 26 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 6...
- Page 27 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 7...
- Page 28 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 8...
- Page 29 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ P a g 2 9...
- Page 30 Use and maintenance manual Auto-Puncher for timing belts Model: APTM-600 __________________________________________________________________________________________________________________________________________________________________________ 24VDC POWER SUPPLY 48VDC POWER SUPPLY 24VDC POWER SUPPLY 230VAC ERM ENGINEERING DC-1500 AUTOPUNCHER CP+/CW+ CP-/CW- DIR+ DIR- +48VDC 1 A+ MOTOR 2 A- MOTOR 3 B+ MOTOR 4 B- MOTOR...
