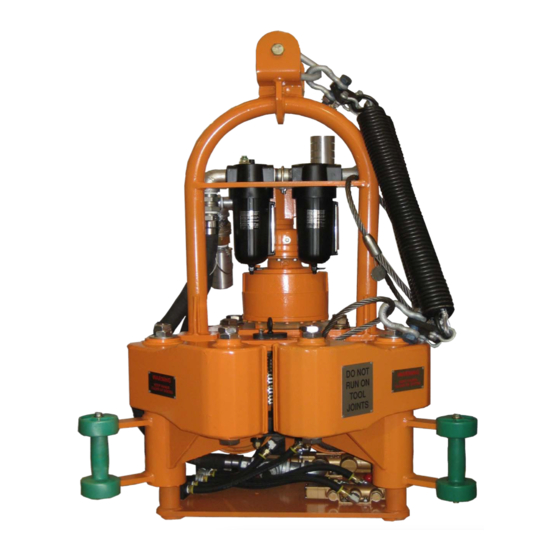

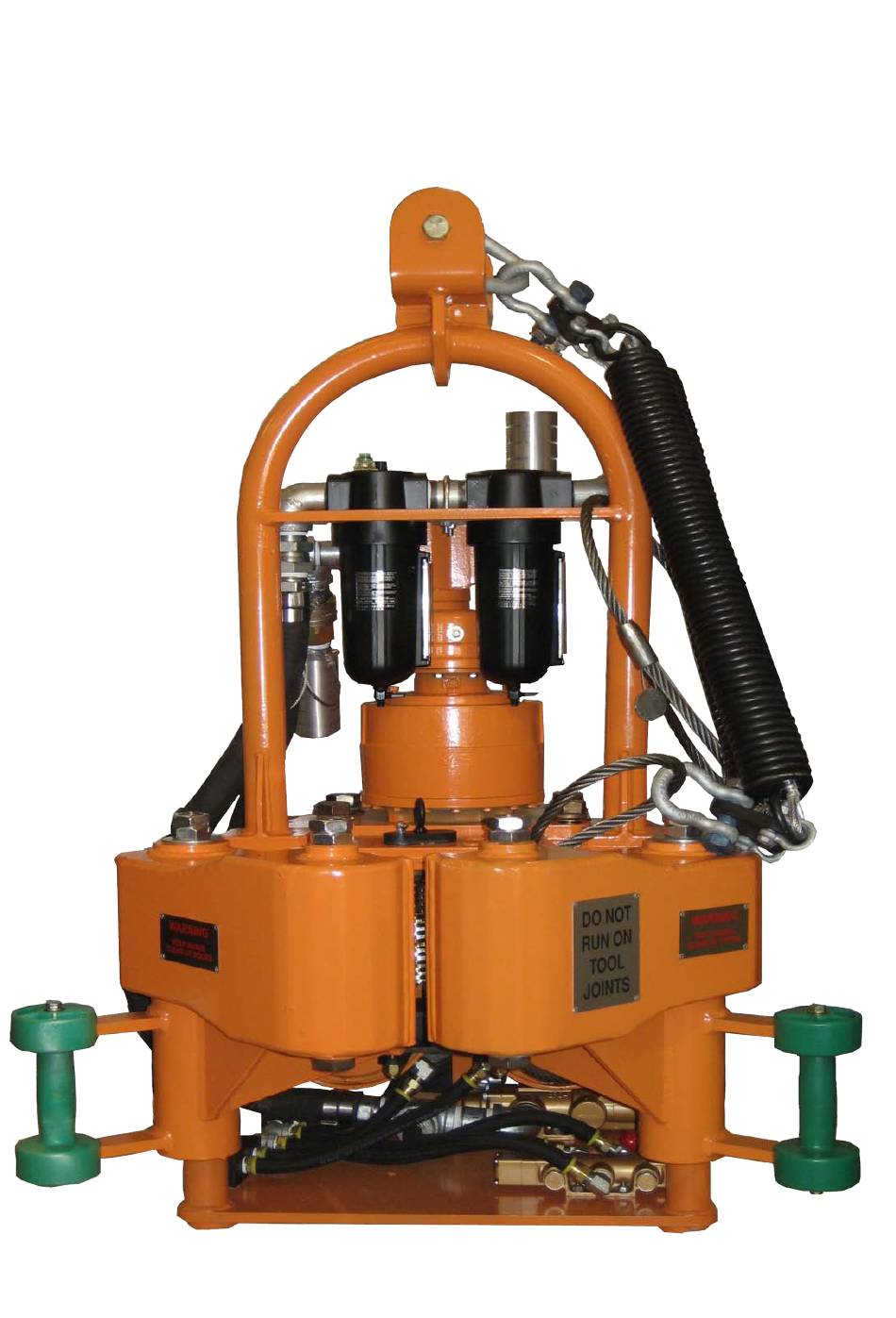

GRAYCHAIN 3570 PNEUMATIC
9G-3570AIR
Technical Documentation
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Gray Chain 3570 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blohm + Voss Oil Tools Gray Chain 3570

Summary of Contents for Blohm + Voss Oil Tools Gray Chain 3570

  • Page 1 Blohm + Voss Oil Tools, LLC GRAYCHAIN 3570 PNEUMATIC 9G-3570AIR Technical Documentation...

  • Page 2: General Information

    GrayChain which were not approved by Blohm + Voss Oil Tools, LLC. Manufacturer & Agents World Wide Blohm + Voss Oil Tools, LLC Blohm + Voss Oil Tools GmbH Premier Sea & Land Pte Ltd HI-Energy Service 11355 FM 830 Hermann-Blohm-Straße 2...

  • Page 3: Revision History Table

    Safety issues WARNING: ONE SHOULD WARNING: FAILURE TO REPLACE THEM WITH NEW AVOID CREATING IGNITION CONDUCT ROUTINE SAFETY ELEMENTS. WARNING: ALWAYS USE SOURCES, LIKE HEAT, AS A MAINTENANCE COULD LIFTING APPARATUS RESULT OF THE USE OF THE RESULT IN EQUIPMENT WARNING: KEEP HANDS (SLINGS, CABLES, TOOL WITH OTHER TOOLS...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS GENERAL INFORMATION Revision History Table TABLE OF CONTENTS INTRODUCTION About this manual Using the Manual Location of I.D. Numbers Safety First Buying Replacement Parts and Repair SPECIFICATIONS Specifications Pneumatic Requirements Palletized Shipping Data Operational Settings INSTALLATION Hanging the Spinner Attaching to the Mast Attaching the Fixed Line Back Up Cables...
  • Page 5 ASSEMBLIES 9G-3570AIR CASE ASSEMBLY 9G-1022ASSM MOTOR/MOUNT SUB ASSEMBLY 9G1084-2 93 INCH SILENT CHAIN 9G-93 GRAYCHAIN IDLER ROLLER PIN ASSEMBLY 9G-1050 IDLER ROLLER SHAFT WITH 3-1/2 ROLLER 9G-1050-ASSY 3 1/2” OD IDLER ROLLER ASSEMBLY 9G1051-B 4” OD OVERSIZED IDLER ROLLER ASSEMBLY 9G1051-2 RIGHT DOOR ASSEMBLY 9G-13035-1...

  • Page 6: Introduction

    INTRODUCTION...

  • Page 7: About This Manual

    The Gray Chain 3570 AIR offers the ultimate in simplicity and rugged design. Designed to be compact and self contained; the GrayChain 3570 does not require a stand-alone power pack. All the gripping pressure and spinning torque are generated at the drill pipe spinner.

  • Page 8: Safety First

    Safety First Regardless of how enthusiastic you may be about beginning the job at hand, take the time to ensure that your safety is not jeopardized. A moment’s lack of attention may result in an accident, as can failure to observe certain simple safety precautions. The possibility of an accident will always exist.

  • Page 9: Specifications

    SPECIFICATIONS...

  • Page 10: Pneumatic Requirements

    Specifications Pneumatic Requirements Pneumatic supply pressure (max.) 110 psi (758 kPa) - 6.89 bar Pneumatic supply pressure (min.) 100 psi (689 kPa) - 6.89 bar Power Requirements 240 cfm @ 100 psi (6.8 sm3/min @ 689 kPa) Air Hoses 1-1/4” X 20’ Length (B) 46 in (117 cm) Width (A)
  • Page 11 Figure 1 Dim. A Dim. B Dim. C Weight Power Requirements AVG. RPM AVG. Torque 35 in 46 in 50 in 850 lbs 240 ft3/min @100 psi 1,250 ft lbs 88.9 cm 117 cm 127 cm 386 Kg 6.80 m3/min @ 689 kPa 100 RPM 1,694.75 Nm...

  • Page 12: Installation

    INSTALLATION...

  • Page 13: Hanging The Spinner

    Hanging the Spinner The GrayChain 3570 should be hung using a wire rope that is ½” or greater and that is in accordance with acceptable practices. Attach the wire rope through the shackle at the top of the spring hanger assembly. Use of the GrayChain 3570 without the spring hanger assembly will shorten the life of the tool and cause improper operation which may lead to accidents.

  • Page 14: Back Up Cables

    Back Up Cables The two lugs at the back of the GrayChain 3570 are to be used with two back up cables. The two lugs at the end of the GrayChain 3570 are to be used with two back up cables. These two cables will restrict the rotational movement to 1’...

  • Page 15: Operation

    OPERATION...

  • Page 16: Changing Pipe Sizes

    Operation Figure 5 1. With the doors open, swing the GrayChain into position on the drill pipe. Bring the 3570 to the correct height. Approximately 12” above the tool joint, position the 3570 onto the pipe making sure that you do not run the tool on the pipe upset or tool joint. 2.

  • Page 17: Additional Adjustment

    Additional Adjustment Tension Adjustment When the chain stretches or is getting too worn to obtain a proper bite, loosen the 1” Hex Head Cap Screws on the motor mount, loosen the lock bolt on the Chain Retainer and move the motor toward the rear of the spinner. Reposition chain retainer and retighten lock bolt. Oversized Roller If motor is adjusted all the way to the rear and proper bite is still not obtained, replace standard idler roller with the 4”...
  • Page 18 Figure 6...

  • Page 19: Troubleshooting

    Troubleshooting Problem: Cause: Solution: Spinner does not clamp or Lack of air pressure. Air supply should be 100-125 psi @240 clamps slowly on drill pipe CFM. (or unclamp). Air hose, both supply and cylinder hoses are free, not pinched and without leaks. Check all connections for leaks or restrictions.
  • Page 20 Problem: Cause: Solution: Air motor lacks Place several drops of SAE 10 lubrication. non-detergent oil directly in motor supply ports; restart. Air motor failure. Remove air motor and install motor repair kit or replace. Motor mount loose Disconnect air supply line. Loosen on case, allowing capscrews on motor mount and move chain to bunch and...

  • Page 21: Maintenance

    MAINTENANCE...

  • Page 22: Chain (9G-93)

    The GrayChain 3570 has been designed with the ease of repair as an important feature. The 3570 is comprised of modular components so that any problem can be easily detected. Every component can be either repaired or replaced in the field keeping down time to a minimum.

  • Page 23: Drive Roller Sub Assembly

    5. Feed the new chain into the spinner starting at the left Drive Roller and then to the left idler sprocket. 6. Feed the chain with slack behind the motor sprocket. 7. Now feed the chain to the right side of the case, first behind the right idler sprocket and then behind the right drive roller.

  • Page 24: Idler Sprocket Sub Assembly

    Idler Sprocket Sub Assembly To remove one or both of the Idler Sprocket Sub Assemblies, the following procedure should be used: 1. Make sure the GrayChain is off the drill pipe connection and in rest position on the derrick. 2. Shut down the supply of power from the source or from the shut off valve. 3.

  • Page 25: Lubrication

    Lubrication The 3570 should be inspected and greased each week. For higher ambient temperature up to 86° Fahrenheit (30° Celsius) we recommend to use NLGI grade 2. The grease points are listed below. Lubrication Chart Start maintenance only when supply lines are disconnected and when all pressure has been released.

  • Page 26: Lubrication Points

    Lubrication Points Figure 10...
  • Page 27 ASSEMBLIES...

  • Page 28: 9G-3570Air

    9G-3570AIR Figure 11 Item Part Number Description Qty. 9G-1022ASSM CASE ASSEMBLY 9G1001-4 AIR MOTOR AND REDUCER ASSEMBLY 9G1084-2 MOTOR/MOUNT SUB ASSEMBLY 9G1050 GRAYCHAIN IDLER ROLLER PIN ASSEMBLY 9G-13035-2 LEFT DOOR 9G-13035-1 RIGHT DOOR 9G6000ASSM3570 THROTTLE VALVE 9G6006ASSM3570 DOOR VALVE 9G4102-1 FILTER &...

  • Page 29: Case Assembly

    CASE ASSEMBLY 9G-1022ASSM Figure 12...
  • Page 30 CASE ASSEMBLY 9G-1022ASSM Figure 13 Item Part Number Description Qty. 9G-1022 9G-3570 CASE WITH HANGER 9913144-91 HANGER BOLT 9BN1137190 3/4-10 NYLON INSERTED LOCKNUT 9BN65107 5/32 X 2 COTTER PIN 9913144-92 3/4 PEAR LINK 9913144-93 WORM BALANCE 9G1030-11 DRILL PIPE O.D. TAG 9G1030-10 READ MANUAL TAG 9G1030-12...

  • Page 31: Motor/Mount Sub Assembly

    MOTOR/MOUNT SUB ASSEMBLY 9G1084-2 Figure 14...
  • Page 32 MOTOR/MOUNT SUB ASSEMBLY 9G1084-2 9G1084-2 MOTOR / MOUNT SUB ASSEMBLY Item Part number Description Qty. 9G1001-4 MOTOR & REDUCER ASSEMBLY 9G1028 MOTOR BASE PLATE 9G-13126 DRIVE SPROCKET 9G-5100-187 RETAINING RING 9BN0115207 HEX HEAD CAP SCREW 9BN1133741 1/2 EXT-TOOTH LOCKWASHER 9G-3/8SQX2 9BN17978 1-14 X 1-3/4 HHCS 9BN1133900...
  • Page 33 AIR MOTOR AND REDUCER ASSEMBLY 9G1001-4 Figure 15...
  • Page 34 AIR MOTOR AND REDUCER ASSEMBLY 9G1001-4 Item Part number Description Qty. 9BN0115003 1/4-20 X 3/4 HHCS 9BN0118755 BEARING CAP 9G1001-8 1/4-28 X 1 HHCS 9G1001-10 GASKET 9G1001-11 ROTOR BEARING 9G1001-12 BRASS SEAL WITH O-RING 9G1001-13 END PLATE 9G1001-14 END PLATE GASKET 9G1001-16 5/16 X 7/8 DOWEL PIN 9G1001-17...
  • Page 35 AIR MOTOR AND REDUCER ASSEMBLY 9G1001-4 Item Part number Description Qty. 9G1001-43 SHAFT 9G1001-44 BEARING 9G1001-45 PINION 9G1001-46 9G1001-47 GEAR 9G1001-48 BEARING 9G1001-49 GEAR HOUSING 9BN1133893 3/8 SPLIT LOCKWASHER 9BN0115107 3/8-16 X 1-1/4 HHCS 9G1001-51 RETAINING RING 9G1001-52 GEAR 9G1001-53 OUTPUT HOUSING 9BN1133891 1/4 SPLIT LOCKWASHER...

  • Page 36: 93 Inch Silent Chain

    93 INCH SILENT CHAIN 9G-93 Figure 16 Item Part number Description Qty. 9G-93 93 INCH SILENT CHAIN 9G-77AT-RK CHAIN REPAIR KIT / LINK KIT...

  • Page 37: Graychain Idler Roller Pin Assembly

    GRAYCHAIN IDLER ROLLER PIN ASSEMBLY 9G-1050 Figure 17 Item Part number Description Qty. 9GEB22 EYE BOLT 9BN60104 1/8 NPT 90 DEG ZERK 9G1050-1-2 SHAFT, IDLER ROLLER PIN 9G2440-2 2-3/4 SAFETY PIN...

  • Page 38: Idler Roller Shaft With 3-1/2 Roller

    IDLER ROLLER SHAFT WITH 3-1/2 ROLLER 9G-1050-ASSY Figure 18 Item Part number Description Qty. 9G1050 GRAYCHAIN IDLER ROLLER PIN ASSEMBLY 9G1051-B STANDARD 3-1/2” IDLER ROLLER ASSEMBLY...

  • Page 39: 9G1051-B

    3 1/2” OD IDLER ROLLER ASSEMBLY 9G1051-B 4” OD OVERSIZED IDLER ROLLER ASSEMBLY Figure 19 9G1051-2 Figure 20 Item Reference number Description 9G1013-4 THRUST WASHER WITH SEAL 9G3004-1 IDLER ROLLER BRONZE BEARING 9G1051-1 3-1/2” IDLER ROLLER (ROLLER ONLY) 9GAN09 IDLER ROLLER THRUST WASHER SEAL 9G1051 4”...

  • Page 40: 13035-1

    RIGHT DOOR ASSEMBLY 9G-13035-1 Figure 21...
  • Page 41 RIGHT DOOR ASSEMBLY 9G-13035-1 Item Part Number Description Qty. 9G-13035-3 RIGHT DOOR (ONLY) 9BV70751 SAFETY HANDLE 9BN11130 3/8-16 X 8-1/2 HHCS 9BN1133859 3/8 FLAT WASHER 9BN1137185 3/8-16 NYLON LOCK NUT 9G-B2024-8 ARM BUSHING 9G-13064 PIVOT BUSHING 9G1030-2 WARNING TAG “HANDS CLEAR” 9BN41203 1/8 X 1/4 RIVET...

  • Page 42: 13035-2

    LEFT DOOR ASSEMBLY 9G-13035-2 Figure 22...
  • Page 43 LEFT DOOR ASSEMBLY 9G-13035-2 Item Part number Description Qty. 9G-13035-4 LEFT DOOR (ONLY) 9BV70751 SAFETY HANDLE 9BN11130 3/8-16 X 8-1/2 HHCS 9BN1133859 3/8 FLAT WASHER 9BN1137185 3/8-16 NYLON LOCK NUT 9G-B2024-8 ARM BUSHING 9G-13064 PIVOT BUSHING 9G1030-8 DO NOT RUN ON TOOL JOINT TAG 9G1030-2 WARNING TAG “HANDS CLEAR”...

  • Page 44: 13055 / 9G-13052

    FRONT AND REAR PINS 9G-13055 / 9G-13052 NOTE: Even though the door used is a left hand door, the parts listed below are used interchangeably for either the left or right hand doors. Figure 23 Item Part number Description Qty. RIGHT DOOR / LEFT DOOR 9G-13035-3 / 9G-13035-4 9BN33022...
  • Page 45 DRIVE ROLLER SUB ASSEMBLY 9G-13023 Figure 24 Item Part number Description Qty. 9G-13058 TEFLON SPACER 9G-13025 DRIVE ROLLER 9G-13048/49 SPROCKET IDLER/ROLLER 9G-13078 IDLER/ROLLER BEARING SPACER 9G-13027 LONG IDLER BUSHING 9G-US-175 IDLER/ROLLER SNAP RING 9G-17240 OIL SEAL 9G-RRT-212 SNAP RING 9G-13181 1/4 X 3/4 DOWEL PIN 9G-J2816 NEEDLE BEARING (IDLER/ROLLER)
  • Page 46 IDLER SPROCKET SUB ASSEMBLY 9G-13070 Figure 25 Item Part number Description Qty. 9G-13058 TEFLON SPACER 9G-13048/49 SPROCKET IDLER/ROLLER 9G-13078 BEARING SPACER 9G-13056 SHORT IDLER BUSHING 9G-US-175 IDLER/ROLLER SNAP RING 9G-17240 OIL SEAL 9G-J2816 NEEDLE BEARING (IDLER/ROLLER)

  • Page 47: 9G6000Assm3570

    THROTTLE VALVE SUB ASSEMBLY 9G6000ASSM3570 Figure 26 Item Part number Description Qty. 9G6000-1 THROTTLE VALVE 9AF1X3N 1 X 3 NIPPLE 9AF1XCLN 1 X CLOSE NIPPLE 9AF114X190 1-1/4 X 1 90 9AF114X3N 1-1/4 X 3 NIPPLE 9AF114T 1-1/4 TEE 9AF114X12B 1-1/4 X 1/2 BUSHING 9G7530-11 THROTTLE VALVE HOSE ASSEMBLY 9G7500-3570...

  • Page 48: 9G6006Assm3570

    DOOR VALVE/PLUMBING SUB ASSEMBLY 9G6006ASSM3570 Figure 27 Item Part number Description Qty. 9G6006 DOOR VALVE 9G6006-22-E DOOR VALVE HANDLE-NEW STYLE 9G6006-22-D DOOR VALVE BALL KNOB-NEW STYLE 9HC88CTX 1/2 JIC X 1/2 MPT 90 9PCASP4BV 1/2 BREATHER VENT...

  • Page 49: 9G1022-36Assmr

    RIGHT MANIFOLD ASSEMBLY 9G1022-36ASSMR Figure 28 Item Part number Description 9G7100 AIR MANIFOLD 9AF12S90 1/2 STREET 90° 9G7530-8 3570 1/2 X 8 MANIFOLD HOSE ASSEMBLY 9G7530-12GC 3570 1/2 X 12 MANIFOLD HOSE ASSEMBLY 9G7530-16 3570 1/2 X 16 MANIFOLD HOSE ASSEMBLY 9PC3018288 1/2 MPT X 1/2 PUSH ON STRAIGHT BARB 9PC3068288...

  • Page 50: 9G1022-36Assml

    LEFT MANIFOLD ASSEMBLY 9G1022-36ASSML Figure 29 Item Part number Description 9G7100 AIR MANIFOLD 9AF12S90 1/2 STREET 90° 9G7530-14 3570 1/2 X 14 MANIFOLD HOSE ASSEMBLY 9G7530-17 3570 1/2 X 17 MANIFOLD HOSE ASSEMBLY 9PC3018288 1/2 MPT X 1/2 PUSH ON STRAIGHT BARB 9PC3068288 1/2 FJIC X 1/2 PUSH ON STRAIGHT...

  • Page 51: 9G-4051H

    AIR CYLINDER SUB ASSEMBLY 9G-4051H Figure 30 Item Part number Description Qty. 9G-15-4051H CYLINDER BODY 9G-7-4051H CYLINDER ROD 9G-4-4051H CYLINDER BASE 9G-16-4051H CYLINDER PISTON 9G-18-4051H CYLINDER GLAND 9G-4051HRK CYLINDER SEAL KIT 9G-4051HSRK CYLINDER SNAP RING KIT 9BN37147 1-14 THIN NYLON LOCK NUT 9G-13026 ROD HEAD 9BN25397...
  • Page 52 FILTER & LUBRICATOR SUB ASSEMBLY 9G4102-1 Figure 31 Item Part number Description Qty. 9G-MUF-1 1-1/4 MUFFLER 9G4100-1 FILTER 9BN42030 5/16-18 X 1-1/2 PIPE U-BOLT 9G4101-1 LUBRICATOR 9AF114X3N 1-1/4 X 3 NIPPLE 9G5055-55 LUBRICATOR SIGHT DOME 9GC7 FILL PLUG 9AF114S90 1-1/4 STREET 90 9PC01072020 1 1/4 SWIVEL 9BN1137262...
  • Page 53 HEAVY DUTY DUAL SPRING HANGER ASSEMBLY 9G-50274 Figure 32 Item Part number Description 9G1032 HEAVY DUTY HANGER SPRING 9G1034 DUAL BRACKET 9G1033-1 3/16 SPRING HANGER SAFETY CABLE 9G2450-1 5/16 SHACKLE 9G2450-2 5/8 SHACKLE...

  • Page 54: 9Gsupplyhose

    1-1/4 X 20-0 SUPPLY HOSE ASSEMBLY 9GSUPPLYHOSE Figure 33 Item Part number Description 9G114REDHOSE 1-1/4 RED AIR HOSE 20’ 9PCHAPS5 1-1/4 BARB FITTING (KC NIPPLE) 9G-11SJ206 1-1/4 BAND CLAMP 9BOLTCLAMP 1-1/4 BOLT CLAMP...
  • Page 55 MISCELLANEOUS PARTS Figure 34 Item Part number Description 9G-13021 CASE SPACER 9G-13035-1 RIGHT DOOR ASSEMBLY 9G-13076 CLEVIS PLATE 9G-13028-4 SHACKLE 9G-13035-2 LEFT DOOR ASSEMBLY...
  • Page 56 MISCELLANEOUS PARTS Figure 35 Item Part number Description 9AF1X3N 1 X 3 NIPPLE 9AF114X190 1-1/4 X 1 90 9G-10T40 1-1/4 MNPT QD NIPPLE 9G-10S41SL 1-1/4 FNPT SOCKET 9G1033-2 1/8 SAFETY CABLE 9G7502-3570 HOSE ASSEMBLY THROTTLE VALVE - MOTOR 9G-MUF-1 1-1/4 MUFFLER 9G7500-3570 HOSE ASSEMBLY LUBRICATOR - THROTTLE VALVE...
  • Page 57 SPARE PARTS...
  • Page 58 RECOMMENDED SPARE PARTS FOR ONE YEAR OF USE Item Part Number Description Qty. 9G-4051HRK 7” CYLINDER SEAL KIT 9G-4051HSRK 7” CYLINDER SNAP RING KIT 9G-10S41SL 11/4” FNPT SOCKET 9G6000-RK THROTTLE VALVE REPAIR KIT 9G1001-5-RK AIR MOTOR REPAIR KIT 9G-93 93” SILENT CHAIN 9G-77AT-RK CHAIN REPAIR KIT 9G-J2816...
  • Page 59 INDEX...
  • Page 60 1-1/4 BAND CLAMP 1-1/4 BARB FITTING (KC NIPPLE) 1-1/4 BOLT CLAMP 1-1/4 MUFFLER 51, 55 1-1/4 RED AIR HOSE 1-1/4 STREET 90 1 1/4 SWIVEL 1-1/4 TEE 1-1/4 X 1/2 BUSHING 1-1/4 X 1 90 1-1/4 X 3 NIPPLE 46, 51 1/2 BREATHER VENT 1/2 EXT-TOOTH LOCKWASHER 1/2 FJIC X 1/2 PUSH ON STRAIGHT...
  • Page 61 3/8 FLAT WASHER 40, 42 3/8 SPLIT LOCKWASHER 3/8 X 1/8 BUSHING 3/16 SPRING HANGER SAFETY CABLE 4” GC IDLER ROLLER (ROLLER ONLY) 5/8 SHACKLE 5/16-18 TYPE-C LOCK NUT 5/16-18 X 1-1/2 PIPE U-BOLT 5/16-18 X 1-1/2 SHCS 5/16-18 X 1/2 SET SCREW 5/16 SHACKLE 5/16 X 7/8 DOWEL PIN 5/32 X 2 COTTER PIN...
  • Page 62 9BN65107 9BN0115003 9BN0115107 9BN0115207 9BN0118753 9BN0118755 33, 34 9BN1123259 9BN1125439 9BN1133741 9BN1133859 40, 42 9BN1133891 33, 34 9BN1133893 9BN1137185 40, 42 9BN1137190 9BN1137262 9BOLTCLAMP 9BV70751 40, 42 9CYLSAFETYROD 9G-3/8SQX2 9G-4-4051H 9G-7-4051H 9G-10S41SL 9G-11SJ206 9G-15-4051H 9G-16-4051H 9G-18-4051H 9G-77AT-RK 35, 57 9G-93 35, 57 9G114REDHOSE 9G1001-4...
  • Page 63 9G1001-16 9G1001-17 9G1001-18 9G1001-19 9G1001-20 9G1001-21 9G1001-22 9G1001-25 9G1001-26 9G1001-27 9G1001-28 9G1001-30 9G1001-31 9G1001-32 9G1001-35 9G1001-36 9G1001-37 9G1001-39 9G1001-40 9G1001-41 9G1001-42 9G1001-43 9G1001-44 9G1001-45 9G1001-46 9G1001-47 9G1001-48 9G1001-49 9G1001-51 9G1001-52 9G1001-53 9G1001-56 9G1001-57 9G1001-58 9G1001-59 9G1001-60 9G1001-61 9G1001-62...
  • Page 64 9G1001FP 9G1013-4 9G-1022 27, 29 9G1028 9G1030-2 40, 42 9G1030-7 9G1030-8 9G1030-10 9G1030-11 9G1030-12 9G1032 9G1033-1 9G1034 9G1050 27, 36, 37 9G1051 9G1051-1 9G1084-2 27, 30, 31 9G2450-1 9G2450-2 9G3004-1 9G-3570 CASE WITH HANGER 27, 29 9G-4051H 29, 50 9G-4051HRK 50, 57 9G-4051HSRK 50, 57...
  • Page 65 9G6006-RK 9G7100 48, 49 9G7500-3570 9G7502-3570 9G7530-8 9G7530-11 9G7530-12GC 9G7530-14 9G7530-16 9G-13010-1 9G-13021 9G-13023 9G-13025 44, 57 9G-13026 9G-13027 9G-13028-4 9G-13035-1 27, 39, 40 9G-13035-2 27, 41, 42 9G-13035-3 40, 43 9G-13035-4 42, 43 9G-13036L 27, 41, 42 9G-13036R 27, 39, 40 9G-13048/49 44, 45 9G-13052...
  • Page 66 9G-J2816 44, 45, 57 9G-MUF-1 51, 55 9G-RRT-212 9G-RS-750 9G-US-175 44, 45 9HC6HHP 9HC88CTX 29, 47 9HC88FTX 9PC01072020 9PC3018288 48, 49 9PC3068288 48, 49 9PCASP4BV 9PCHAPS5 11/4” FNPT SOCKET 93 INCH SILENT CHAIN 93” SILENT CHAIN 3570 1/2 X 8 MANIFOLD HOSE ASSEMBLY 3570 1/2 X 12 MANIFOLD HOSE ASSEMBLY 3570 1/2 X 14 MANIFOLD HOSE ASSEMBLY 3570 1/2 X 16 MANIFOLD HOSE ASSEMBLY...
  • Page 67 CHAIN REPAIR KIT CHAIN REPAIR KIT / LINK KIT CHAIN RETAINER CLEVIS PLATE CYLINDER BASE CYLINDER GLAND CYLINDER PISTON CYLINDER ROD CYLINDER SAFETY ROD CYLINDER SEAL KIT 50, 57 CYLINDER SNAP RING KIT 50, 57 DO NOT RUN ON TOOL JOINT TAG DOOR/LIFT VALVE REPAIR KIT DOOR VALVE 27, 47...
  • Page 68 HANGER BOLT HEAVY DUTY HANGER SPRING HEX HEAD CAP SCREW HOSE ASSEMBLY / LUBRICATOR to THROTTLE VALVE HOSE ASSEMBLY / THROTTLE VALVE to MOTOR IDLER/ROLLER BEARING SPACER IDLER ROLLER BRONZE BEARING IDLER ROLLER SHAFTS IDLER/ROLLER SNAP RING 44, 45 INNER PLATE JAM NUT 31, 33, 34 KNOB...
  • Page 69 RAM MOUNT SNAP RING READ MANUAL TAG REAR ARM PIVOT PINS REAR PIN REDUCER 24, 31, 32, 33, 34 RETAINING RING 31, 33, 34 RIGHT DOOR 27, 39, 40, 43, 54 RIGHT DOOR ASSEMBLY 39, 40, 54 ROD HEAD ROLLER SPACER SLEEVE ROTOR ROTOR BEARING ROTOR HOUSING WITH SLEEVE...
  • Page 70 ZERK 36, 43...
  • Page 71 India Brazil Italy Azerbaijan Mexico Columbia Manufacturer & Agents World Wide Blohm + Voss Oil Tools, LLC Blohm + Voss Oil Tools GmbH Premier Sea & LandPte Ltd Sharjah 11355 FM 830 Hermann-Blohm-Straße 2 54 Loyang Way United Arab Emirates...
