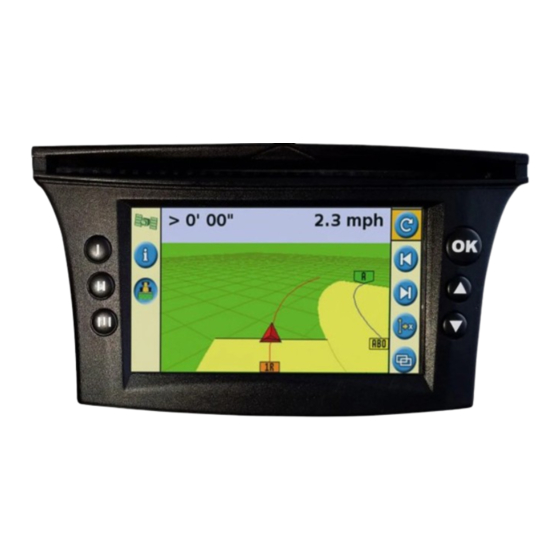

EZ-Guide 500 Quick Reference Card

Lightbar guidance system
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

EZ-Guide
Standard system
EZ-Guide
To power
Power cable
(P/N 62817)
function buttons
These buttons perform the
functions indicated by the icons.
Swath lines
The current swath is red. Adjacent
swaths are blue. Swath numbers
are displayed at the bottom of the
screen.
tip bar
provides information on how to use
the system.
C
Keep the lightbar dry. do not spray it with any type of liquid as this may cause it to fail.
500 Lightbar Guidance System
®
Quick Reference Card
CoNNECtiNg thE SYStEM
®
500 lightbar
Antenna cable
(P/N 50449)
lightbAR lAYout
offline guidance lEds
When the vehicle is online, the center three green LEDs are lit.
When it is offline, the lit LEDs move to the side.
Vehicle icon
Shows the vehicle position and heading relative to
the current swath.
www.EZ-Guide.com
With keypad
Antenna
To
power
With EZ-Steer
To
power
EZ-Guide
system
®
ESC button (back of unit)
Cancels changes and moves
up one level.
buttons: o u D
The arrow key highlights an icon
and the o button selects it.
Coverage logging and overlap
Coverage is displayed when a spray
switch is on, when the coverage
function button is enabled, or when
an autosteering system is engaged.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EZ-Guide 500

Summary of Contents for EZ-Guide 500

  • Page 1 EZ-Guide 500 Lightbar Guidance System ® Quick Reference Card CoNNECtiNg thE SYStEM Standard system With keypad Antenna ® EZ-Guide 500 lightbar power EZ-Guide To power With EZ-Steer system ® Power cable (P/N 62817) Antenna cable power (P/N 50449) lightbAR lAYout offline guidance lEds When the vehicle is online, the center three green LEDs are lit.

  • Page 2: Quick Start Wizard

    Quick Start Wizard By default, the Quick Start Wizard appears every time you turn on the EZ-Guide 500 lightbar. It enables you to confirm or change important system settings before you begin working. To cancel the Quick Start Wizard and go directly to guidance, press Note - On the last screen in the Quick Start Wizard, you can choose to hide the wizard during future startups.
  • Page 3 EZ-Guide 500 Lightbar Guidance System ® Quick Reference Card AdVANCEd ModE APPliCAtioN uSE Reset guidance Select the icon and then press o. Create New Field / Add AB line Select stored field / Select AB line Confirm or change settings...

  • Page 4: Data Management

    Use the Data Management menu to: • Export field and event information to an external USB drive, so it can be loaded into another EZ-Guide 500 lightbar. Note - Never remove the USB drive while the lightbar is turned on.

  • Page 5: Information Tabs

    EZ-Guide 500 Lightbar Guidance System ® Quick Reference Card MAP SCREENS Plan view Perspective view By default, the view automatically switches to the perspective view when you enter a field. To set the view so it switches when you engage an autosteering system or for manual view control, in Advanced mode select Configuration / System / Display / View.

  • Page 6: Guidance Patterns

    *66020-80-ENG* © 2007. Trimble Navigation Limited. All rights reserved. Trimble, AgGPS, EZ-Guide, and EZ-Steer are trademarks of Trimble Navigation Limited, registered in the United States and in other countries. Autopilot is a trademark of Trimble Navigation Limited.
