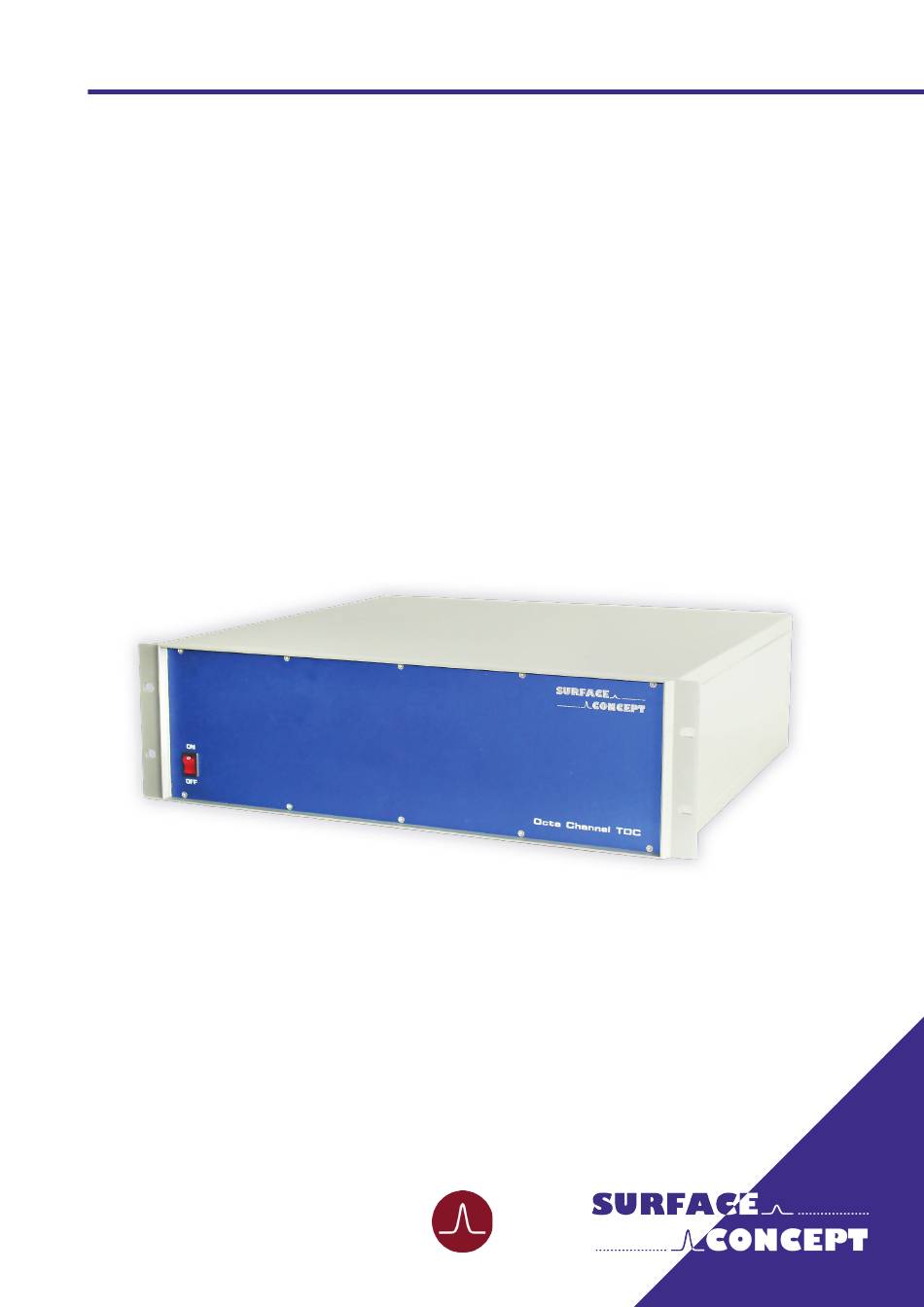

- Page 1 Time-to-Digital Converter Octa Channel TDC (Release 442, 443, 451, 461) Manual...
- Page 2 User Manual for the phone: +49 6131 62716 0 Octa Channel TDC fax: +49 6131 62716 29 Release 442, 443, 451, 461 email: info@surface-concept.de Manual Version 2.4 web: www.surface-concept.de Printed on 2021-08-06 Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
-
Page 3: Table Of Contents
3.3 Software Installation, Requirements and Interface .......... . 10 4 TDC Layout ..........................11 4.1 Schematic Description of the Octa Channel TDC ..........11 4.2 Layout of the Octa Channel TDC ................13 4.2.1 TDC Stop Inputs ....................14 4.2.2 TDC Start Input .................... - Page 4 Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
-
Page 5: Introduction
2.1 General Information This manual is intended to provide an overview of the Octa Channel TDC in Release 442, 443, 451 and 461 as part of a delayline detector package. It is divided into 6 chapters. The chapter “Introduction” contains a brief description of the device. - Page 6 Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
-
Page 7: Installation
A TDC specific connection scheme is given in Figure 1a - Figure 1a: Specific connection scheme of the Octa Channel TDC R442 and R443 to a Surface Concept Delayline Detector. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... - Page 8 Figure 1b: Specific connection scheme of the Octa Channel TDC R451 to a Surface Concept Delayline Detector. Figure 1c: Specific connection scheme of the Octa Channel TDC R461 to a Surface Concept Delayline Detector. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
- Page 9 Install the TDC device driver or software package prior to switching on the TDC. For release versions R442 • Use the USB cable to connect the Octa Channel TDC to the PC. • Use BNC cables to connect your additional signals to the additional inputs of the TDC (e.g. TAG IN).
-
Page 10: Software Installation, Requirements And Interface
For those cases we recommend the use of USB2.0. Note The use of USB2.0 is always possible, but there might be limitations in the maximum count rates for certain detector types and/or detector operation modes. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... -
Page 11: Tdc Layout
4 TDC Layout 4.1 Schematic Description of the Octa Channel TDC The Octa Channel TDC series combines the excellent performance of the GPX TDC chip with a high speed USB (R442) or an Ethernet interface (R443, R451, R461). A field programmable gate array (FPGA) enables a comfortable setup and a variable data stream handling from the TDC via USB and Ethernet. - Page 12 Communication to and from the PC is achieved via a USB or Ethernet interface. Data streaming via the interface is provided without losses using a large memory buffer within the device. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
-
Page 13: Layout Of The Octa Channel Tdc
DLD Readout Cable from ACU with M3 Thread for Strain Relief 11. BNC Socket for GATE Output (R442, R443, R451, R461) 12. USB Connection Socket (R442) and Ethernet connection Socket (R443, R451, R461) Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... -
Page 14: Tdc Stop Inputs
4.2.1 TDC Stop Inputs The Octa Channel TDC provides 1x (R442, R443), 2x (R451) and 4x (R461) HDMI sockets (“TDC 1” - “TDC 4”) for 16 (R442, R443), 8 (R451) and 4 (R461) signal inputs from the ACU. The TDC inputs are laid out for PECL signal levels. -
Page 15: Tdc Start Output
“Ext_trigger”. Do not forget to save the ini file after any changes you make and restart the software. For further information check the software manual. Note Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... -
Page 16: Start Frequency Divider
4.2.5 Start Frequency Divider The maximum start frequency for the Octa Channel TDC is restricted to 9MHz. To cope with larger start frequencies the Octa Channel TDC is equipped with an internal start frequency divider for external start frequencies of up to 150MHz (this mode only works when using the external start input). Herewith the frequency divider can operate with different dividing factors, which can be set within the software, to always guarantee a start frequency of below 9MHz. -
Page 17: Master Reset Input
FIFOs of the TDC chip are cleared (all old TDC data are erased). A LVTTL (low voltage TTL) signal on 50Ohms has to be applied to the “MASTER RESET IN“ (BNC socket) of the TDC. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... -
Page 18: State Signal Input
The shutter signal has to be applied as a LVTTL (low voltage TTL) signal on 50Ohms to the “SHUTTER IN“ (BNC socket) of the TDC. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... -
Page 19: Gate Signal Output
The network port of the PC must be configured accordingly to the IP address of the TDC which is as follows: static IPv4 address (predefined factory address): 10.0.0.20 subnet mask: 255.255.255.0 See also the DLD Device Driver and Software Installation Manual for further details. Note Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... - Page 20 XXX.XXX.XXX.XXX XXX.XXX.XXX.XXX is the new IP address of the device, while i is the device index. The default setting for i is 0. Resets the TDC itself. Resets the service module. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
-
Page 21: Technical Data
Tag Signal, State Signal, Shutter Signal and Master Reset Input: Low voltage TTL on 50Ohm BNC socket • Gate Signal Output: Low voltage TTL on 50Ohm BNC socket • USB Interface for Data Transfer Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH... - Page 22 Tag Signal, State Signal, Shutter Signal and Master Reset Input: Low voltage TTL on 50Ohm BNC socket • Gate Signal Output: Low voltage TTL on 50Ohm BNC socket • Ethernet Interface for Data Transfer Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
- Page 23 Tag Signal, State Signal, Shutter Signal and Master Reset Input: Low voltage TTL on 50Ohm BNC socket • Gate Signal Output: Low voltage TTL on 50Ohm BNC socket • Ethernet Interface for Data Transfer Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
- Page 24 Gate Signal Output: Low voltage TTL on 50Ohm BNC socket • Ethernet Interface for Data Transfer Line Input Electrical Input (LINE) 85 V – 260V, 50/60Hz 65Watt (max.) Power 1x T 1.6A Fuse Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
-
Page 25: List Of Figure
6 List of Figure Figure 1a: Specific connection scheme of the Octa Channel TDC R442 and R443 to a Surface Concept Delayline Detector ..7 Figure 1b: Specific connection scheme of the Octa Channel TDC R451 to a Surface Concept Delayline Detector ......8 Figure 1c: Specific connection scheme of the Octa Channel TDC R461 to a Surface Concept Delayline Detector ...... - Page 26 This declaration does not represent a commitment to features or capabilities of the instrument. The safety notes and regulations given in the product related documentation must be observed at all times. Time-to-Digital-Converter Octa Channel TDC Manual | Surface Concept GmbH...
