- Page 1 Time-to-Digital Converter SC-TDC-1100 Series (Release 212, 312 & 322) Manual...
- Page 2 55124 Mainz Germany User Manual for the phone: +49 6131 62716 0 SC-TDC-1100 Series fax: +49 6131 62716 29 Releases: 212, 312 & 322 email: info@surface-concept.de Manual Version 2.3 web: www.surface-concept.de Printed on 2020-02-26 SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 3: Table Of Contents
3.2 Cabling..........................7 3.3 Software Installation, Requirements and Interface..........9 4 TDC Layout..........................11 4.1 Schematic Description....................11 4.2 Layout of the SC-TDC-1100 Series................12 4.2.1 TDC Stop Inputs....................13 4.2.2 TDC Start Input..................... 13 4.2.3 Device Synchronization Signal IN/OUT............15 4.2.4 Start Frequency Divider (sub-R 70 only)............ - Page 4 SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 5: General Information
Please read this manual carefully before performing any electrical or electronic operations and strictly follow the safety rules given within this manual. Surface Concept declines all responsibility for damages or injuries caused by an improper use of the module due to negligence on behalf of the User. -
Page 6: General Overview

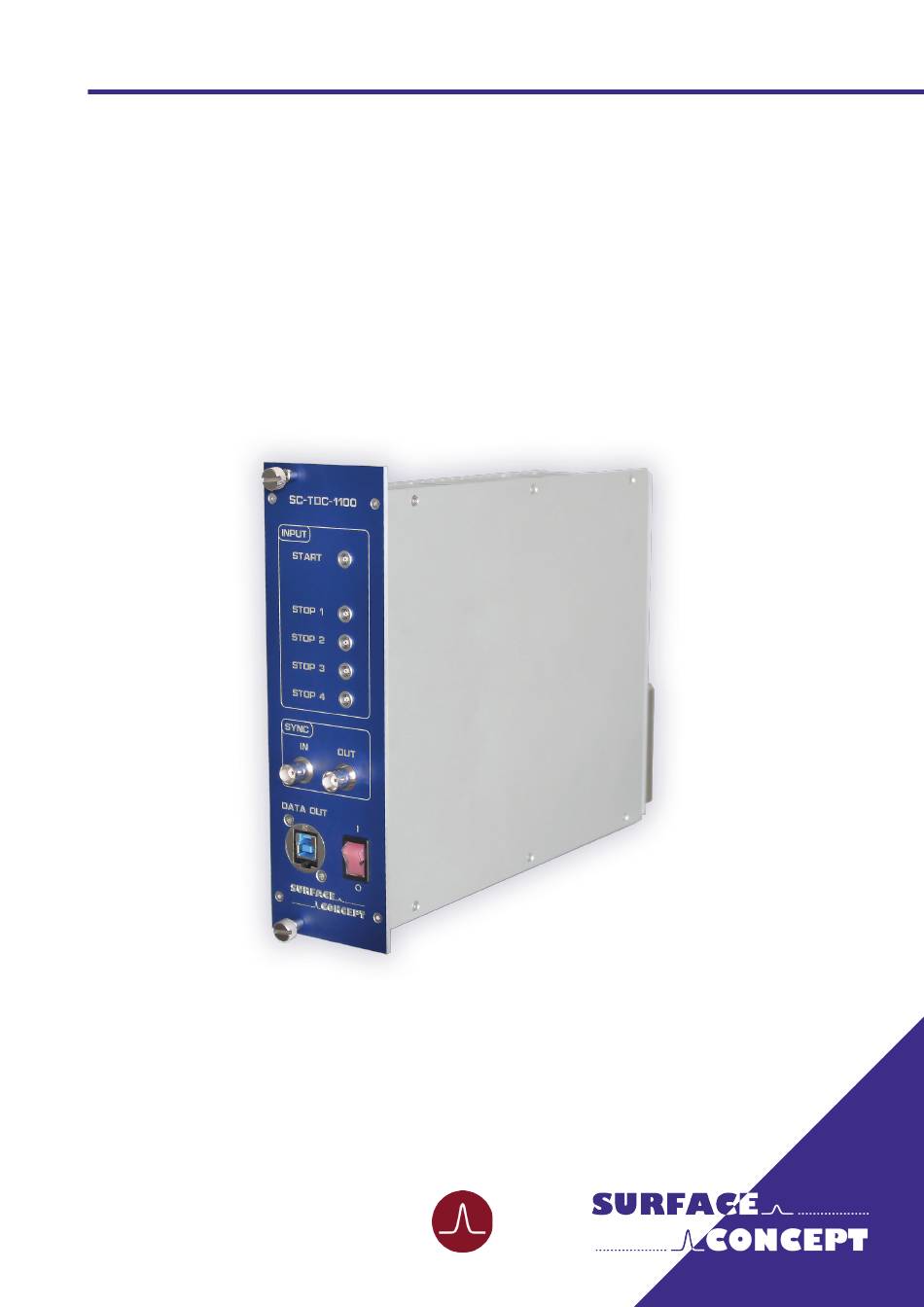

2.3 General Overview The Surface Concept SC-TDC-1100 device in Release 312 is a 2 stop input channel (02D), in Release 322 a 4 stop input channel (04D) and in Release 212 a 8 stop input channel (08S) Time-to-Digital Converter with an integrated FPGA board and a USB3.0 interface in a 2/12 NIM cassette. -
Page 7: Installation
Table 1: Packing list for the SC-TDC-1100 (R212, R312, R322) 3.2 Cabling The general connection scheme of the SC-TDC-1100 devices is given in Figure 1. Figure 1: General connection scheme of the SC-TDC-1100 devices. SC-TDC-1100 Series Manual | Surface Concept GmbH... - Page 8 120ns, as they are produced by e.g. connecting to and disconnecting from the start input respectively. If two subsequent pulses are applied to the start input of the TDC, the device will still deliver results, but these results will contain wrong timing information. SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 9: Software Installation, Requirements And Interface
For those cases we then recommend the use of USB2.0. The use of USB2.0 is always possible, but there might be limitations in the Note maximum count rates for certain detector types and/or detector operation modes. SC-TDC-1100 Series Manual | Surface Concept GmbH... - Page 10 SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 11: Tdc Layout
4 TDC Layout 4.1 Schematic Description The design of the SC-TDC-1100 series combines the excellent performance of the GPX TDC chip with a high speed USB interface. A field programmable gate array (FPGA) enables comfortable setups and a variable data stream handling from the TDC via USB. -
Page 12: Layout Of The Sc-Tdc-1100 Series
2. BNC/LEMO 00 Sockets for Stop Inputs 3. BNC Sockets for Device Synchronization Signal IN and OUT 4. USB Connection Socket 5. Power switch to turn the TDC ON/OFF. Lighted when set to ON 6. Power Socket SC-TDC-1100 Series Manual | Surface Concept GmbH... -
Page 13: Tdc Stop Inputs
The maximum frequency of the start pulse must not exceed 9MHz (for R312 & R322) and 7MHz (for R212). Do not forget to save the ini file after any changes you make and restart the software. For further information check the software manual. Note SC-TDC-1100 Series Manual | Surface Concept GmbH... - Page 14 Note measured start signal. Therefore, if the signals are varying in amplitude, one needs to process them by external electronics components (e.g. constant fraction discriminators, CFDs). SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 15: Device Synchronization Signal In/Out
This leads to the multiple time histograms that appear sequentially in time. The multiple histograms can be resorted to one single time histogram by a MODULO-operation during data analysis. SC-TDC-1100 Series Manual | Surface Concept GmbH... -
Page 16: Extended Measurement Range
In this case X can be set to -1. The reading of this entry is: “the reference of channel X is channel Y”. SC-TDC-1100 Series Manual | Surface Concept GmbH... - Page 17 The default setting is 0 X = 0 switches off the sorting algorithm. The sorting algorithm works better at higher selected values, but higher values significantly increase the load on the PC CPU. SC-TDC-1100 Series Manual | Surface Concept GmbH...
- Page 18 SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 19: Technical Data
(no calibration necessary) • Digital time bin resolution per channel: 82.3ps • 5.5ns pulse-pair resolution on one channel and 0ns between two channels • Trigger to rising edge • Start retrigger frequency (max.): 7MHz SC-TDC-1100 Series Manual | Surface Concept GmbH... - Page 20 External Start Signal Output: Low voltage TTL on 50Ohm BNC socket • Device Synchronization Signal Input: Low voltage TTL on 50Ohm BNC socket • Device Synchronization Signal Output: Low voltage TTL on 50Ohm BNC socket • USB Interface for Data Transfer SC-TDC-1100 Series Manual | Surface Concept GmbH...
- Page 21 (measurement range of 40µs corresponds to a start frequency of 25kHz) • Internal start frequency divider (2-, 4-, 8-, 16- and 32-fold divider) • Dynamic range: 2E19 • All channels provide precisely an equal resolution • 32-fold multi-hit capability per channel SC-TDC-1100 Series Manual | Surface Concept GmbH...
- Page 22 Device Synchronization Signal Input: Low voltage TTL on 50Ohm BNC socket • Device Synchronization Signal Output: Low voltage TTL on 50Ohm BNC socket • USB Interface for Data Transfer Line Input +6V DC Electrical Input (LINE) 12 Watt (max.) Power SC-TDC-1100 Series Manual | Surface Concept GmbH...
-
Page 23: List Of Figure
Figure 1: General connection scheme of the SC-TDC-1100 devices........................7 Figure 2: Schematic sketch of TDC functioning................................. 11 Figure 3: Front Panel of SC-TDC-1100/08S (R212) and 1100/04D (R322)......................12 Figure 4: Back Panel of SC-TDC-1100..................................... 12 SC-TDC-1100 Series Manual | Surface Concept GmbH... - Page 24 Electromagnetic compatibility (EMC): Generic standards - Emission standard for industrial environments EN 61010-1: 2010 Safety Requirements for Electrical Equipment for Measurement, Control and Laboratory Use For and on behalf of Surface Concept GmbH Legal Signature………………………………………… Mainz,……01.04.2013………. (Date) (Dr. Andreas Oelsner) This declaration does not represent a commitment to features or capabilities of the instrument.
