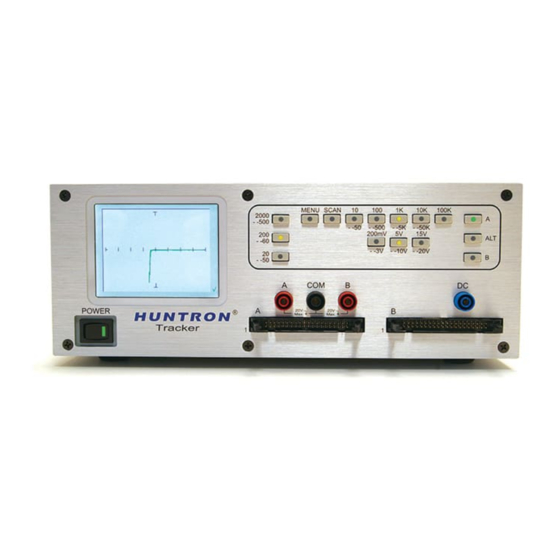

Huntron 2800/S Getting Started Instructions

Huntron 2800/S Getting Started Instructions

Hide thumbs Also See for 2800/S:

Advertisement

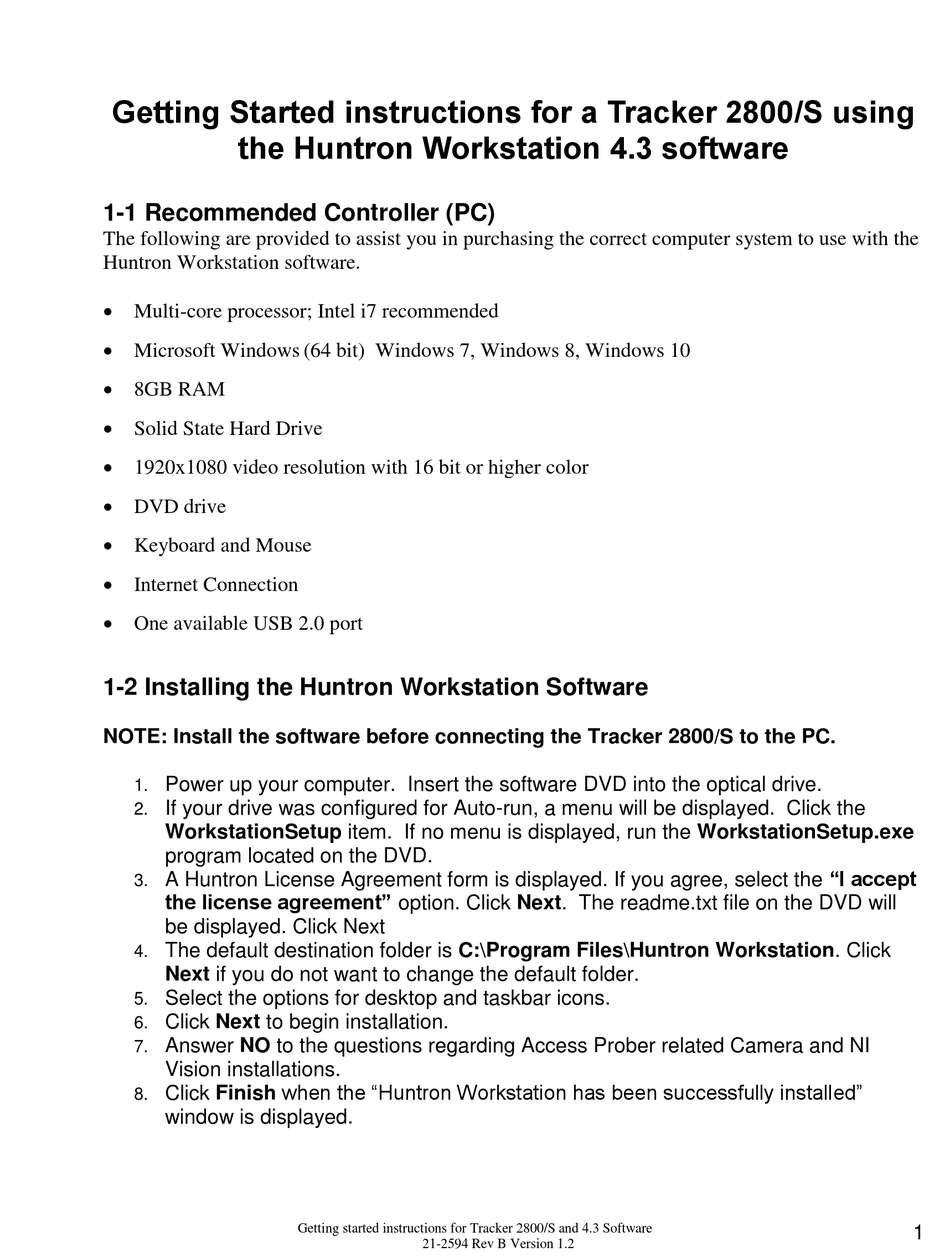

Getting Started instructions for a Tracker 2800/S using
the Huntron Workstation 4.3 software

1-1 Recommended Controller (PC)

The following are provided to assist you in purchasing the correct computer system to use with the
Huntron Workstation software.
 Multi-core processor; Intel i7 recommended
 Microsoft Windows (64 bit) Windows 7, Windows 8, Windows 10
 8GB RAM
 Solid State Hard Drive
 1920x1080 video resolution with 16 bit or higher color
 DVD drive
 Keyboard and Mouse
 Internet Connection
 One available USB 2.0 port

1-2 Installing the Huntron Workstation Software

NOTE: Install the software before connecting the Tracker 2800/S to the PC.
Power up your computer. Insert the software DVD into the optical drive.
1.
If your drive was configured for Auto-run, a menu will be displayed. Click the
2.
WorkstationSetup item. If no menu is displayed, run the WorkstationSetup.exe
program located on the DVD.
A Huntron License Agreement form is displayed. If you agree, select the "I accept
3.
the license agreement" option. Click Next. The readme.txt file on the DVD will
be displayed. Click Next
The default destination folder is C:\Program Files\Huntron Workstation. Click
4.
Next if you do not want to change the default folder.
Select the options for desktop and taskbar icons.
5.
Click Next to begin installation.
6.
Answer NO to the questions regarding Access Prober related Camera and NI
7.
Vision installations.
Click Finish when the "Huntron Workstation has been successfully installed"
8.
window is displayed.
Getting started instructions for Tracker 2800/S and 4.3 Software
21-2594 Rev B Version 1.2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2800/S and is the answer not in the manual?

Questions and answers

Summary of Contents for Huntron 2800/S

  • Page 1 WorkstationSetup item. If no menu is displayed, run the WorkstationSetup.exe program located on the DVD. A Huntron License Agreement form is displayed. If you agree, select the “I accept the license agreement” option. Click Next. The readme.txt file on the DVD will be displayed.
  • Page 2 Help menu in the software by selecting the Workstation Tutorial Tracker 2800/S.pdf. The tutorial will enable a new user to get acquainted with most of the software features. The help menu in the software will also assist you.
  • Page 3 All user’s manuals are located in the Manual CD (06-5217) included in your package. Use the Tracker 2800/S Manual.pdf file to view or print the manual. If you need further assistance, call the Huntron Technical support at 1-(800)-426-9265 or (425)-743-3171 email: info@huntron.com...
