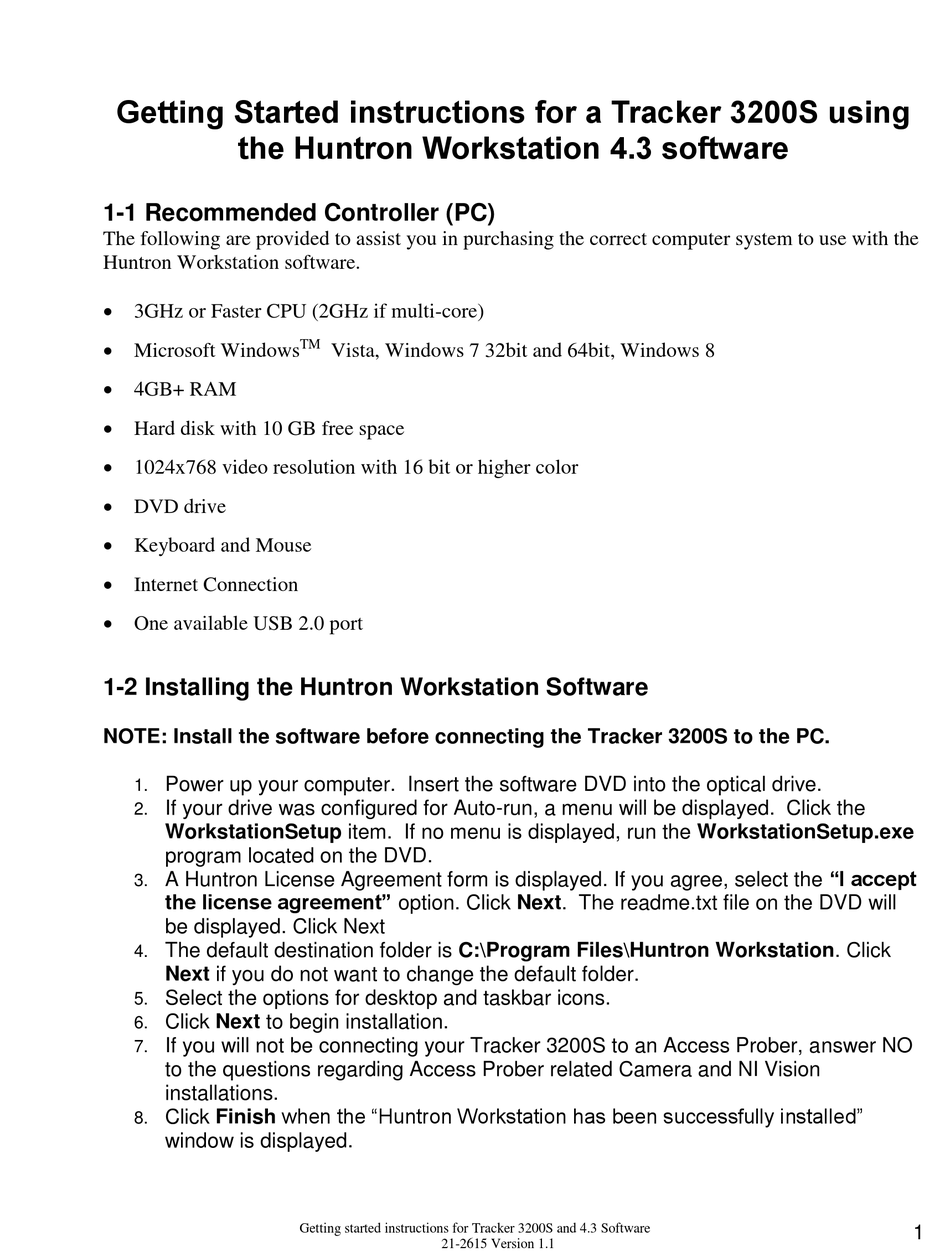

Huntron Tracker 3200S Getting Started Instructions

Getting Started instructions for a Tracker 3200S using
the Huntron Workstation 4.3 software

1-1 Recommended Controller (PC)

The following are provided to assist you in purchasing the correct computer system to use with the
Huntron Workstation software.
 3GHz or Faster CPU (2GHz if multi-core)
 Microsoft Windows
 4GB+ RAM
 Hard disk with 10 GB free space
 1024x768 video resolution with 16 bit or higher color
 DVD drive
 Keyboard and Mouse
 Internet Connection
 One available USB 2.0 port

1-2 Installing the Huntron Workstation Software

NOTE: Install the software before connecting the Tracker 3200S to the PC.
Power up your computer. Insert the software DVD into the optical drive.
1.
If your drive was configured for Auto-run, a menu will be displayed. Click the
2.
WorkstationSetup item. If no menu is displayed, run the WorkstationSetup.exe
program located on the DVD.
A Huntron License Agreement form is displayed. If you agree, select the "I accept
3.
the license agreement" option. Click Next. The readme.txt file on the DVD will
be displayed. Click Next
The default destination folder is C:\Program Files\Huntron Workstation. Click
4.
Next if you do not want to change the default folder.
Select the options for desktop and taskbar icons.
5.
Click Next to begin installation.
6.
If you will not be connecting your Tracker 3200S to an Access Prober, answer NO
7.
to the questions regarding Access Prober related Camera and NI Vision
installations.
Click Finish when the "Huntron Workstation has been successfully installed"
8.
window is displayed.
TM
Vista, Windows 7 32bit and 64bit, Windows 8
Getting started instructions for Tracker 3200S and 4.3 Software
21-2615 Version 1.1
1
