Kywoo3D Tycoon Instructions

Ground wire

Hide thumbs Also See for Tycoon:

Download this manual

Ground Wire Instruction

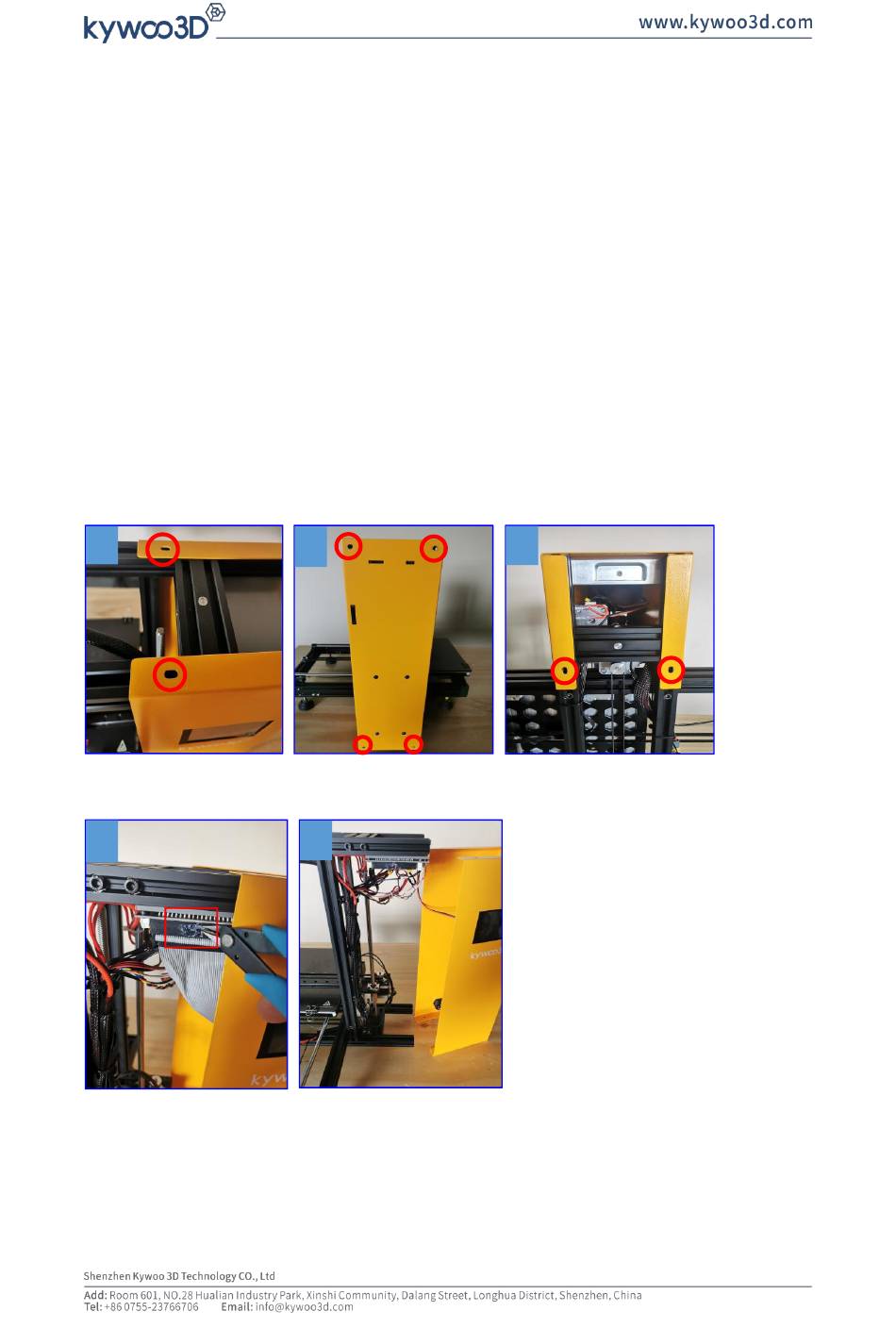

1. Remove the yellow Chassis

Note: Turn Off the Power Supply, remove the handle, four

screws on the side and two screws on the bottom, when the

chassis is halfway down, use cutting pliers to remove the hot

melt glue on the ribbon cable. Unplug the ribbon cable before

removing the yellow case.

Need help?

Do you have a question about the Tycoon and is the answer not in the manual?

Page 1 Ground Wire Instruction 1. Remove the yellow Chassis Note: Turn Off the Power Supply, remove the handle, four screws on the side and two screws on the bottom, when the chassis is halfway down, use cutting pliers to remove the hot melt glue on the ribbon cable.
Page 2 2. Connect the plug ground wire interface to the power supply 2.1 Prepare a 35-40cm long wire, cut both sides flat and expose the copper wire, as shown in the figure below: 2.3 Connect one end of the wire to the ground wire of the switch and wrap it with insulating tape, as shown in the figure:...
Page 3 2.3. Connect the other end of the line to the third position of the power interface (uncover the transparent baffle first , loosen the screw, insert the cable into the third port of the power supply, lock the screw, and install the transparent baffle)
Page 4 3. After connecting both ends of the cable, plug in the flat cable, install the yellow Chassis, install the screws and handle and then plug in the power supply to test.
